8. LOADING AND INSTALLATION
8 - 10
MELSEC-
A

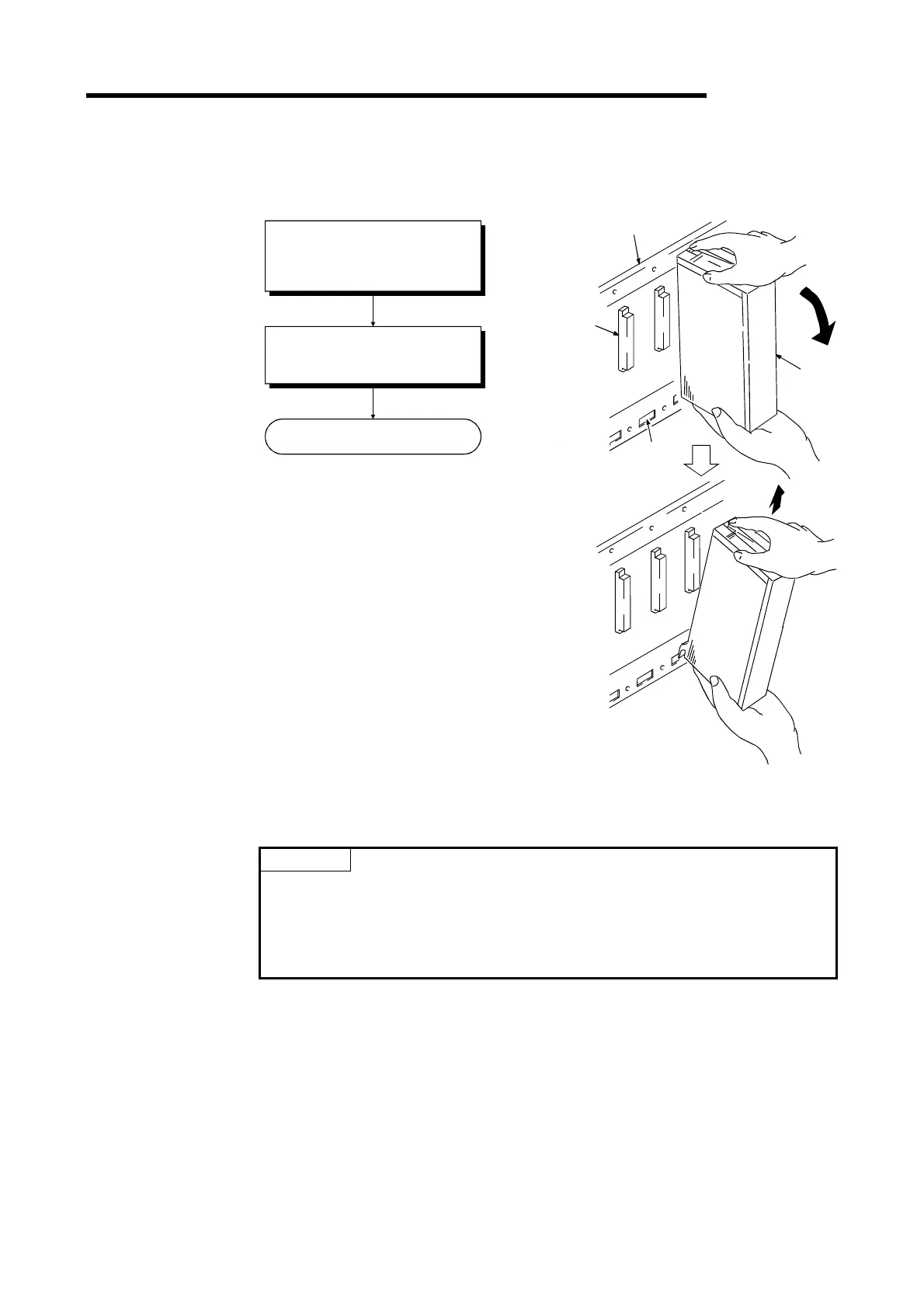

(2) Module removal
The module removal procedure is as follows.
End
Remove the module mounting
screw. Then, while pushing the
hook latch, pull the module toward
you.
Lift upwards and remove the
module hook from the module
mounting hole.
Base unit
Module
connector
Module mounting
hole
Modul
e
POINT
(1) When removing the module, be sure to remove the module mounting
screw first and then remove the module mounting hook from the module
mounting hole. If the module is forcibly removed, the screw or module
mounting hook will be damaged.
(2) Always turn the power supply OFF before mounting or removal.
