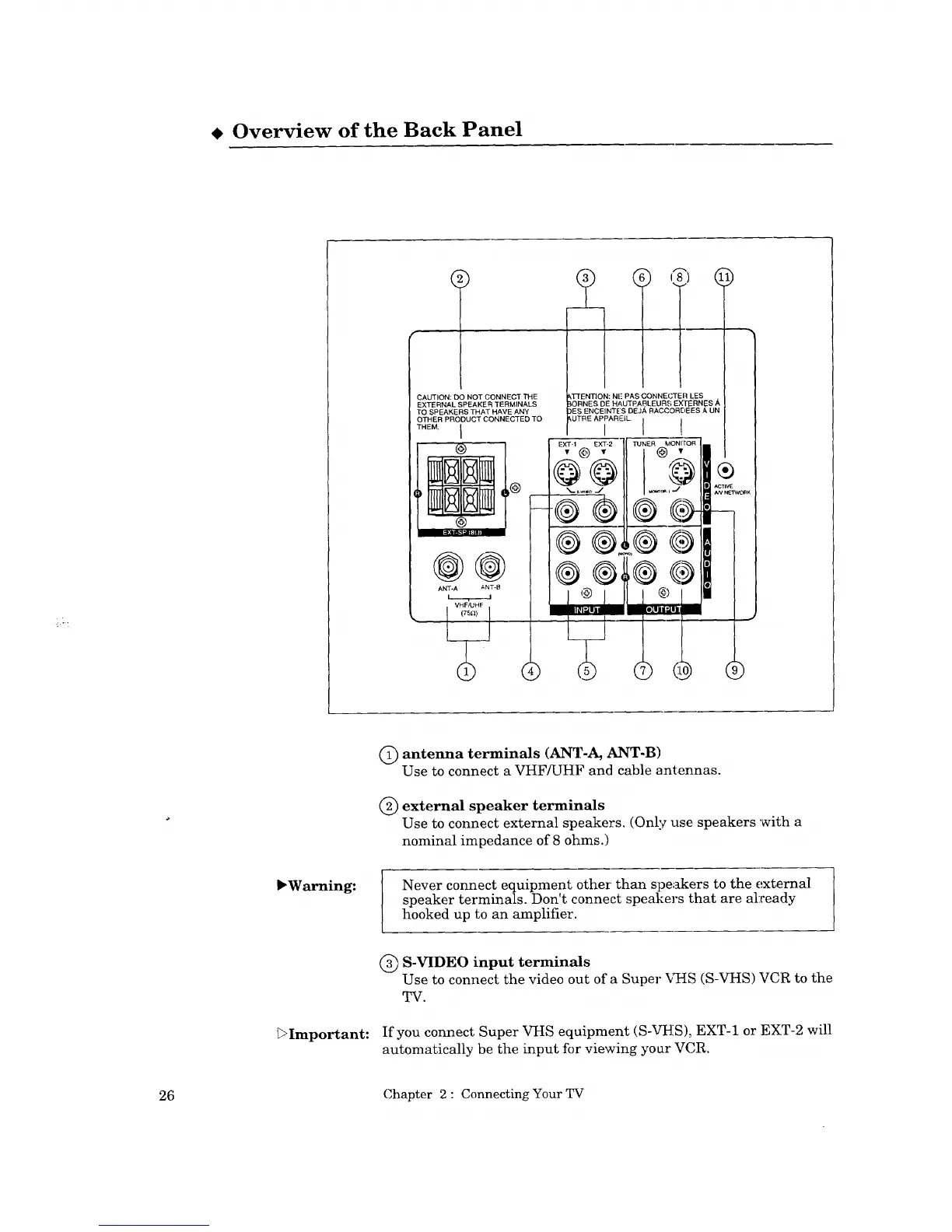

Overview of the Back Panel
CAUTION:DONOT CONNECT THE
EXTERNALSPEAKERTERMINALS
TO SPEAKERS THAT HAVE ANY
OTHER PRODUCT CONNECTEDTO
THEM, I
°!o
LES
I
EXT-1 EXT-2
v @) v
@
®®
®®
I !
TUNER MONI"£OR
@ •
®
® @
,® @
C) antenna terminals (ANT-A, ANT-B)
Use to connect a VHFfUHF and cable antennas.
® external speaker terminals
Use to connect external speakers. (Only use speakers 'with a
nominal impedance of 8 ohms.)
_Warning:
Never connect equipment other than speakers to the external
speaker terminals. Don't connect speakers that are al:ceady
hooked up to an amplifier.
_Important:
S-VIDEO input terminals
Use to connect the video out of a Super _TIS (S-VHS) VCR to the
TV.
If you connect Super VHS equipment (S-VHS), EXT-1 or EXT-2 will
automatically be the input for viewing your VCR.
26 Chapter 2 : Connecting Your TV
