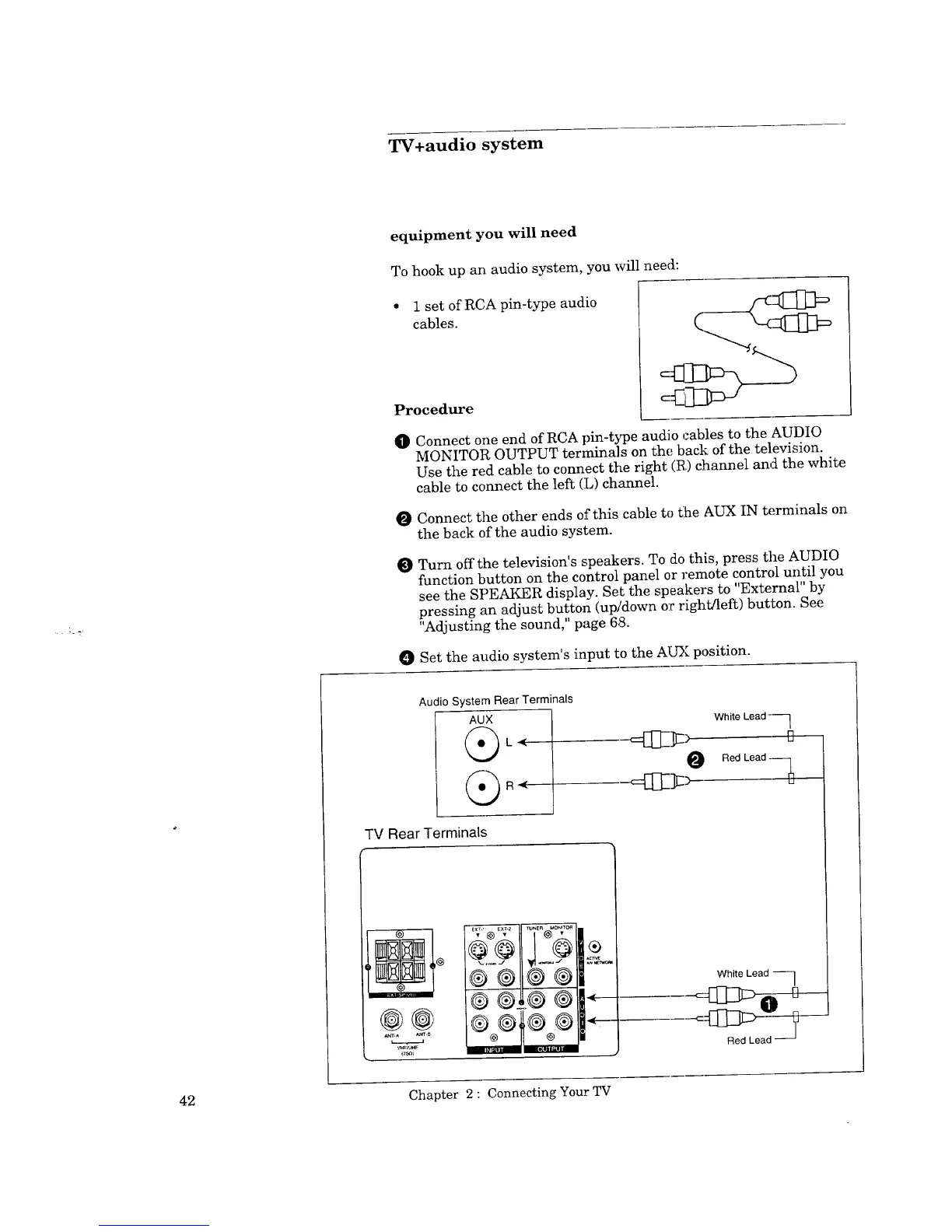

TV+audio system
equipment you will need
To hook up an audio system, you will need:
• 1 set of RCA pin-type audio
cables.
Procedure
0 Connect one end of RCA pin-type audio cables to the AUDIO
MONITOR OUTPUT terminals on the back of the television.
Use the red cable to connect the right (R) channel and the white
cable to connect the left (L) channel.
O Connect the other ends of this cable to tlhe AUX IN terminals on
the back of the audio system.
O Turn off the television's speakers. To do this, press the AUDIO
function button on the control panel or remote control until you
see the SPEAKER display. Set the speakers to "External" by
pressing an adjust button (up/down or right/left) button. See
"Adjusting the sound," page 68.
Set the audio system's input to the AUX position.
Audio System Rear Terminals
AUX
TV Rear Terminals
_F_F
(?sa)
®
White Lead-'---]
O Red Lead
White Lead -_
Red Lead "
42 Chapter 2 : Connecting Your TV
