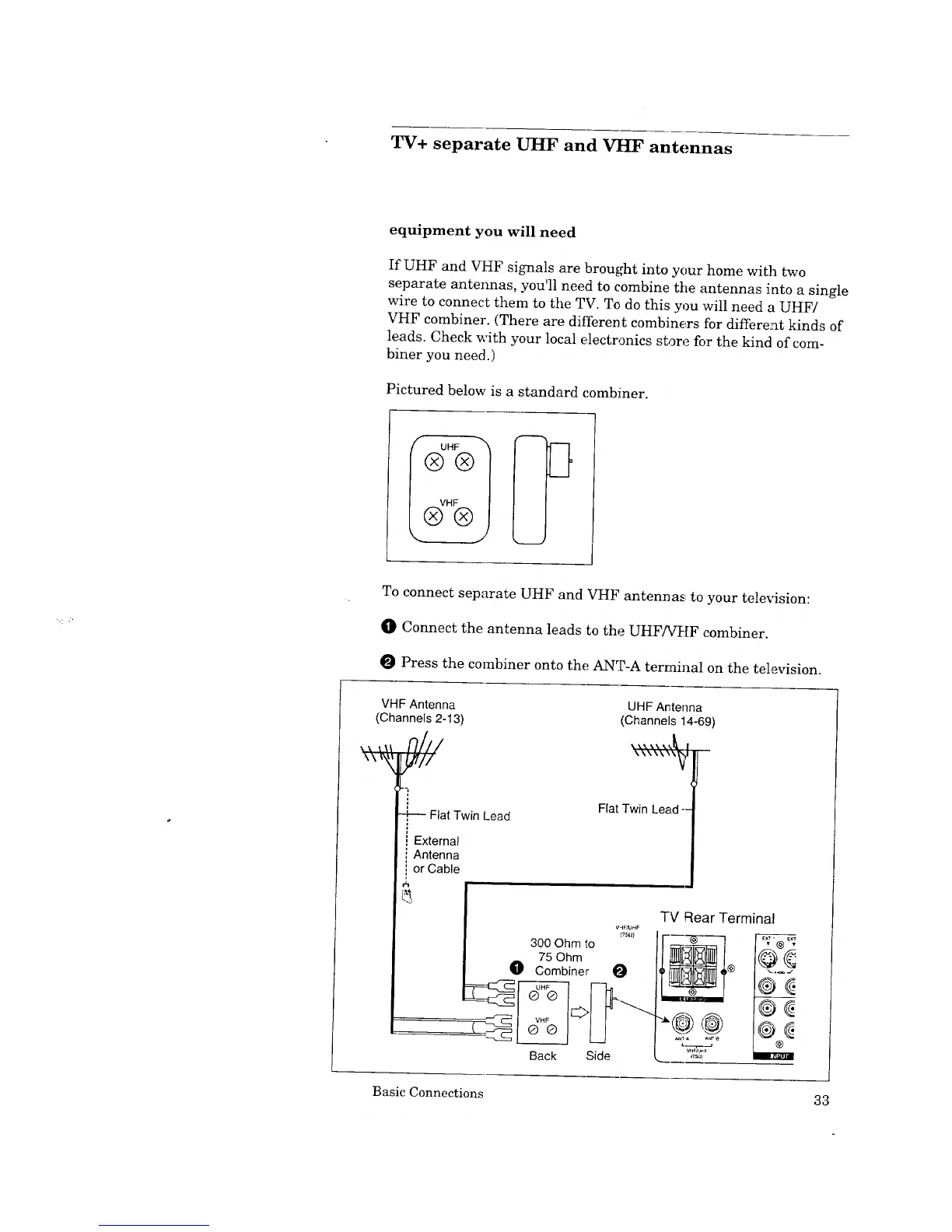

TV+ separate UHF and VHF antennas
equipment you will need
If UHF and VHF signals are brought into your home with two
separate antennas, you'll need to combine the antennas into a single
wire to connect them to the TV. To do this you will need a UHF/
VHF combiner. (There are different combiners for differe:at kinds of
leads. Check with your local electronics store for the kind of com-
biner you need.)
Pictured below is a standard combiner.
To connect separate UHF and VHF antennas to your television:
O Connect the antenna leads to the UHF/VHF combiner.
O Press the combiner onto the ANT-A terminal on the television.
VHF Antenna UHF Ar_tenna
(Channels 2-13) (Channels 14-69)
n/i/ .......
\ \\ \\_,\_1
yl/
-.-,,
-4_- Flat Twin Lead
External
Antenna
or Cable
#1
Flat Twin Lead --
300 Ohm to
75 Ohm
O Combiner
Back
0
Side
TV Rear Terminal
Basic Connections 33
