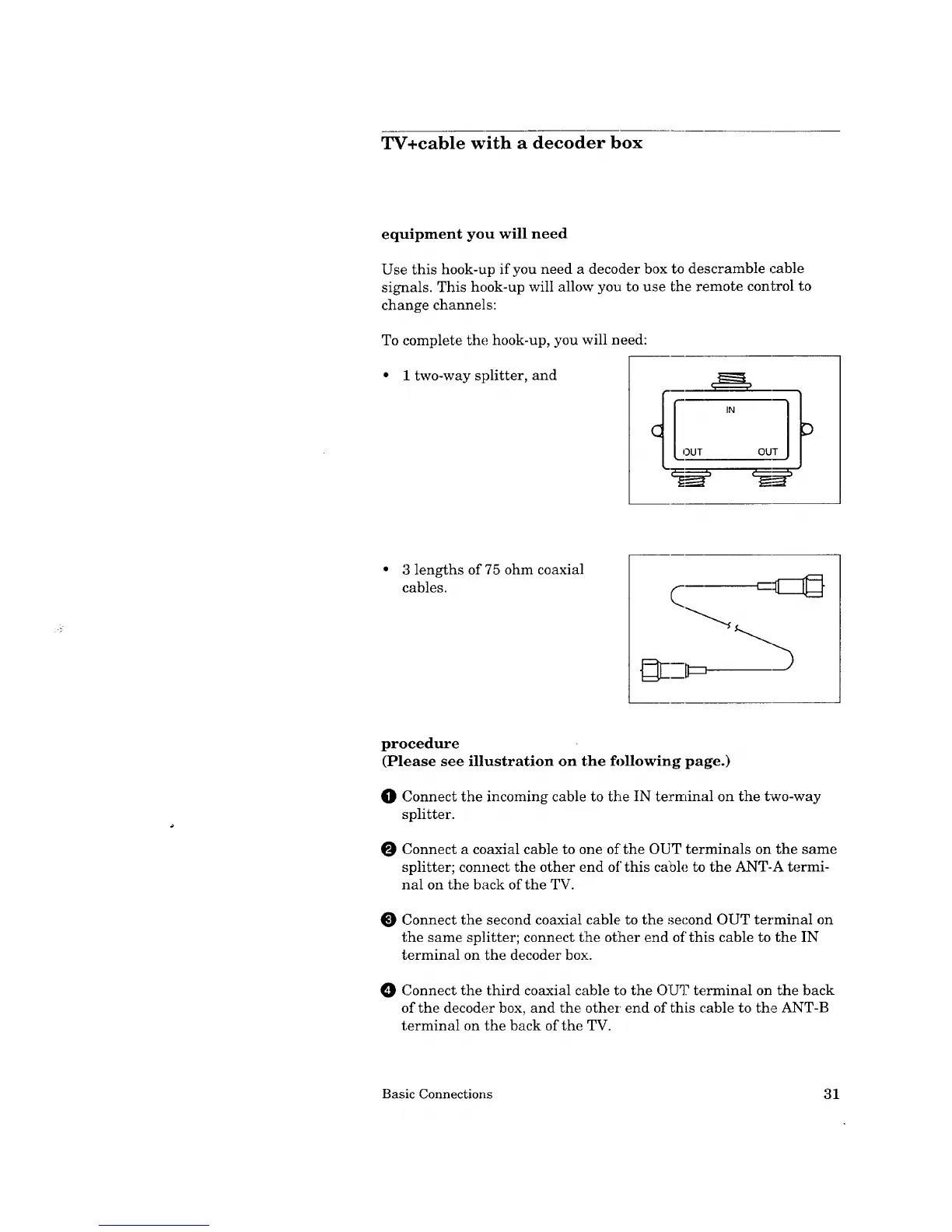

TV+cable with a decoder box
equipment you will need
Use this hook-up if you need a decoder box to descramble cable
signals. This hook-up will allow you to use the remote control to
change channels:
To complete the hook-up, you will need:
• 1 two-way splitter, and
OUT OU
• 3 lengths of 75 ohm coaxial
cables.
procedure
(Please see illustration on the following page.)
O Connect the incoming cable to the IN terminal on the two-way
splitter.
O Connect a coaxial cable to one of the OUT terminals on the same
splitter; connect the other end of this cable to the ANT-A termi-
nal on the back of the TV.
Connect the second coaxial cable to the second OUT terminal on
the same splitter; connect tlhe other end of this cable to the IN
terminal on the decoder box.
O Connect the third coaxial cable to the OUT terminal on the back
of the decoder box, and the other end of this cable to the ANT-B
terminal on the back of the TV.
Basic Connections 31
