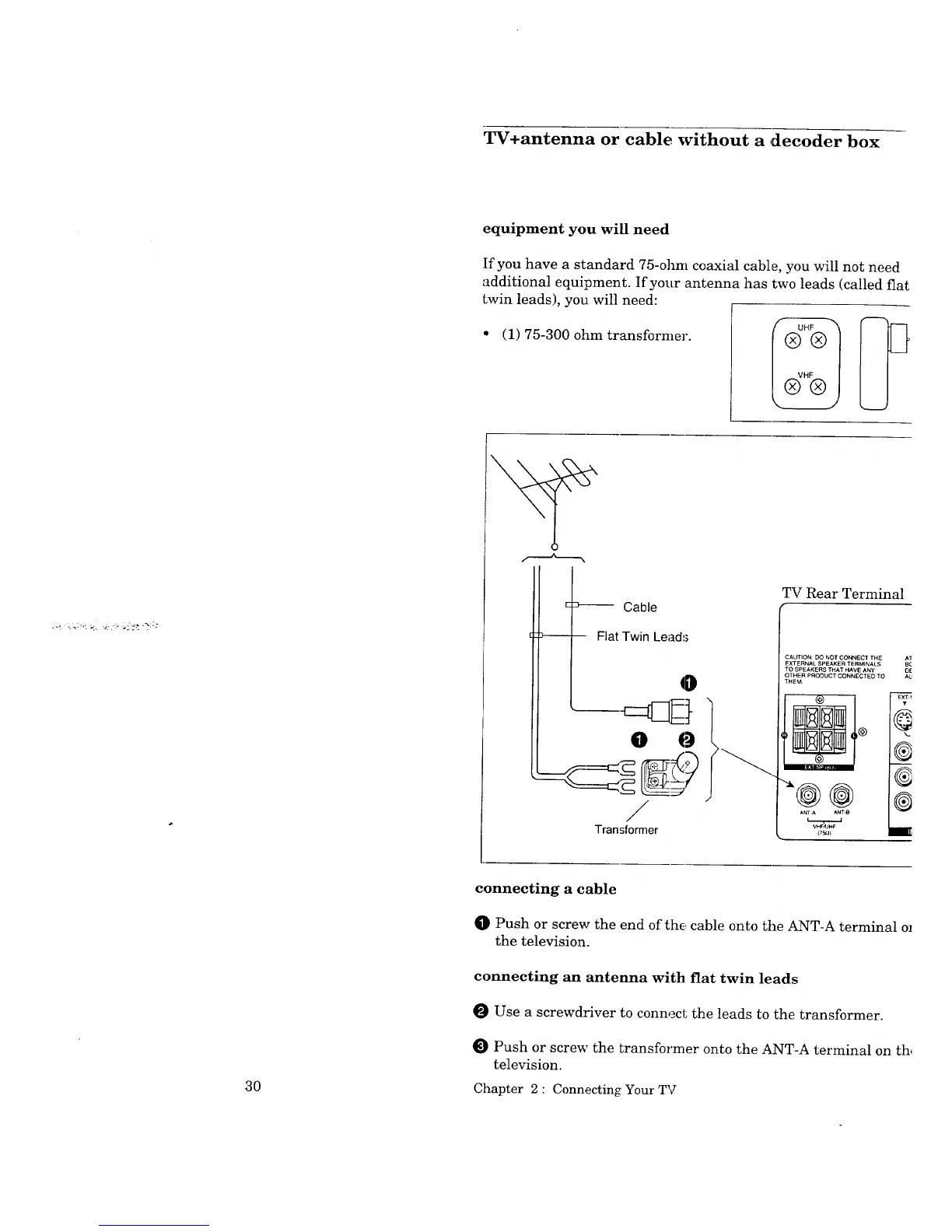

TV+antenna or cable without a decoder box
equipment you will need
If you have a standard 75-ohrn coaxial cable, you will not need
additional equipment. If your antenna has two leads (called flat
twin leads), you will need:
(1) 75-300 ohm transformer.
A \
_--- Cable
-- Flat Twin Lead:_
O
0 0
/
Transformer
TV Rear Terminal
3AUTION:DONOT CONNECITHE AT
EX_rERNAL SPEAKER TERMINALS BC
TOSPEAKERSTHATHAVEANY
OTHERPRODUCTCONNECTEDTO
THEM
3O
connecting a cable
_]} Push or screw the end of the cable onto the ANT-A terminal oi
the television.
connecting an antenna with fiat twin leads
O Use a screwdriver to connect the leads to the transformer.
Push or screw the transformer onto the ANT-A terminal on th_
television.
Chapter 2 : Connecting Your TV
