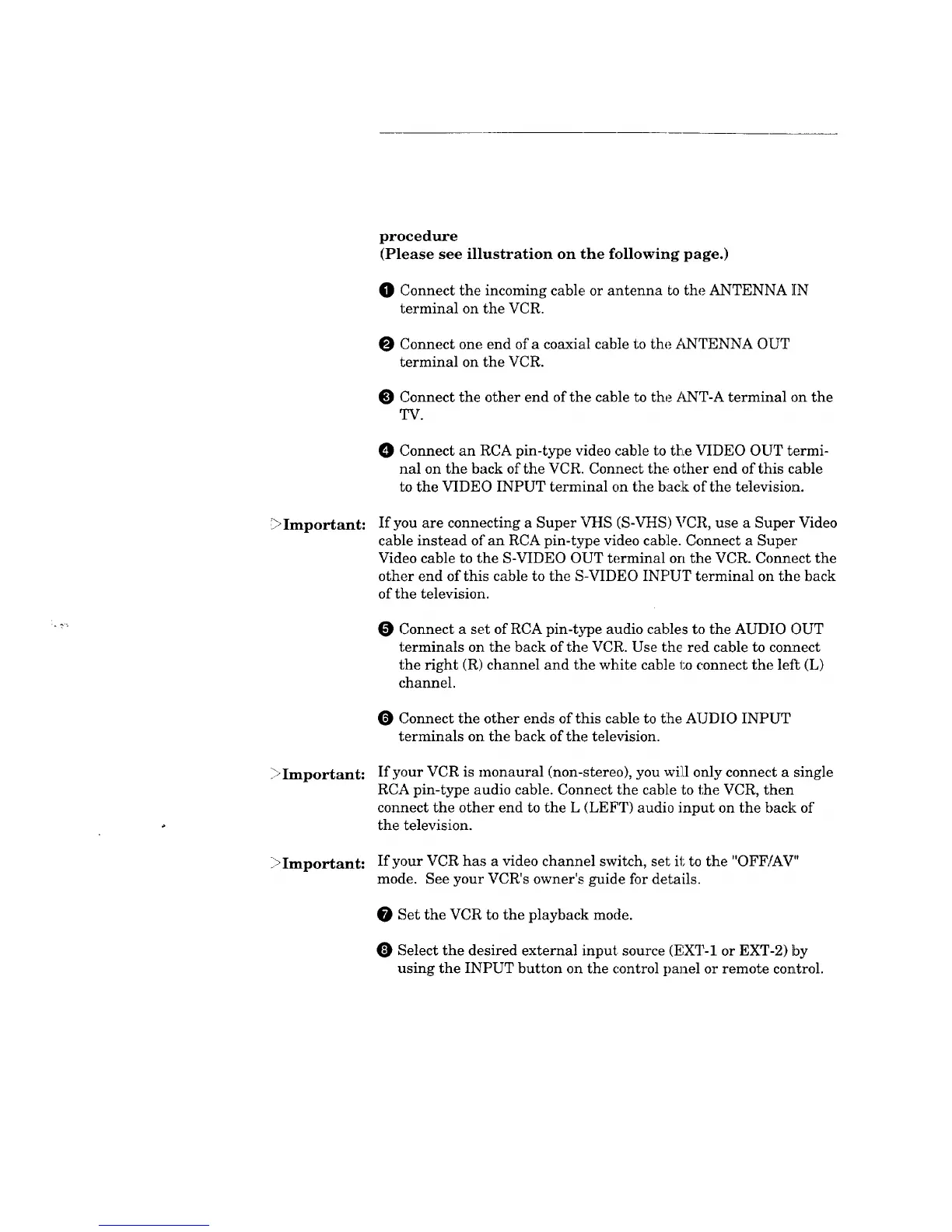

procedure
(Please see illustration on the following page.)
O Connect the incoming cable or antenna _o the ANTENNA ][N
terminal on the VCR.
O Connect one end of a coaxial cable to the .t_NTENNA OUT
terminal on the VCR.
Connect the other end of the cable to the L_NT-A terminal on the
TV.
Connect an RCA pin-type video cable to the VIDEO OUT termi-
nal on the back of the VCR. Connect the other end of this cable
to the VIDEO INPUT terminal on the back of the television.
_Important:
If you are connecting a Super VHS (S-VHS) VCR, use a Super Video
cable instead of an RCA pin-type video cable. Connect a Super
Video cable to the S-VIDEO OUT terminal on the VCR. Connect the
other end of this cable to the S-VIDEO INPUT terminal on the back
of the television.
Connect a set of RCA pin-type audio cables to the AUDIO OUT
terminals on the back of the VCR. Use the red cable to connect
the right (R) channel and the white cable l_oconnect the lef_ (L)
channel.
Connect the other ends of this cable to the AUDIO INPUT
terminals on the back of the television.
_Important:
If your VCR is monaural (non-stereo), you wi:[1only connect a single
RCA pin-type audio cable. Connect the cable to the VCR, then
connect the other end to the L (LEFT) audio input on the back of
the television.
)Important: If your VCR has a video channel switch, set it to the "OFF/AV"
mode. See your VCR's owner's guide for details.
Set the VCR to the playback mode.
Select the desired external input, source (F,XT-1 or EXT-2) by
using the INPUT button on the control panel or remote control.
