PARAMETERS
125
Pr. 190 to Pr. 192
(output terminal (remote input)
function selection)
Related parameters

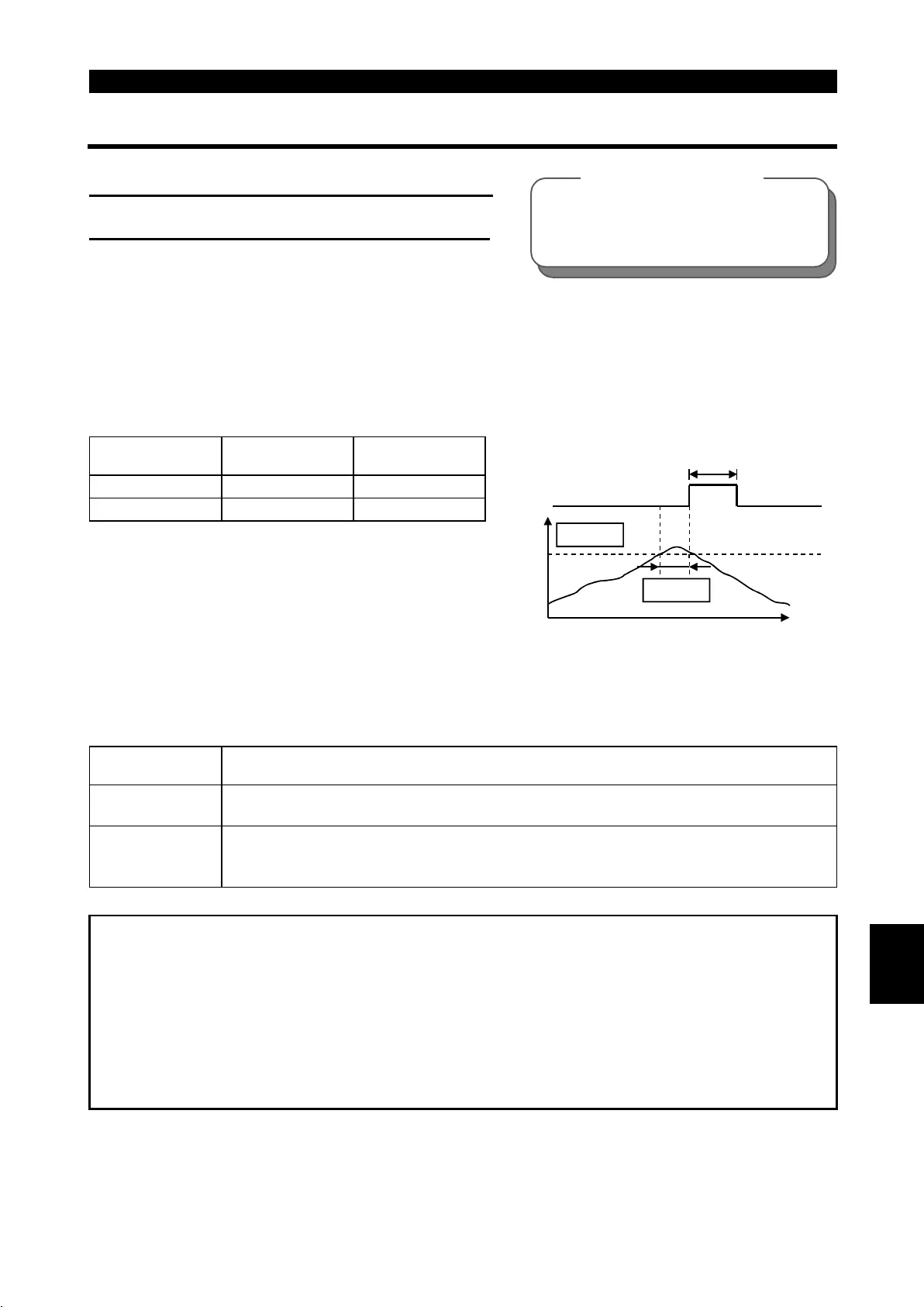

4.2.30 Output current detection function (Pr. 150, Pr. 151)
Pr. 150 "output current detection level"
Pr. 151 "output current detection time"
"
If the output current remains higher than the Pr. 150 setting during inverter operation
for longer than the time set in Pr. 151, the output current detection signal (Y12) is
output.
(Use any of Pr. 190 to Pr. 192 to assign the terminal (remote input) used for Y12
signal output.)
Parameter
Number
Factory
Setting
Setting
Range
150 150% 0 to 200.0%
151 0 0 to 10 s
OFF
ON
OFF
100ms
Pr.151
Pr.150
Time
Output current detection
si
nal
Y12
Output power
<Setting>
Refer to the following list and set the parameters:
Parameter
Number
Description
150
Set the output current detection level.
100% is the rated inverter current.
151
Set the output current detection time. Set a period of time from when the
output current rises to or above the Pr. 150 setting to when the output
current detection signal (Y12) is output.
Note: 1. The output current detection signal is held on for at least about 100ms if it
switches on once when the output current rises to or above the preset
detection level.
2. This function is also valid during execution of offline auto tuning.
3. When the terminal (remote input) functions are changed using Pr. 190 to
Pr. 192, the other functions may be affected. Confirm the functions of the
corresponding terminals (remote input) before making setting.
4
