PARAMETERS
80
Pr. 3 "base frequency"
Pr. 29 "acceleration/deceleration
pattern"
Related parameters
Note:1. The multi-speeds can also be set in the PU or external operation mode.
2. For 3-speed setting, if two or three speeds are simultaneously selected,
priority is given to the frequency setting of the lower signal.
3. Pr. 24 to Pr. 27 and Pr. 232 to Pr. 239 settings have no priority between
them.
4. The parameter values can be changed during operation.
5. When terminal (remote output) assignment is changed using Pr. 180 to
Pr. 183, the other functions may be affected. Check the functions of the
corresponding terminals (remote output) before making setting.

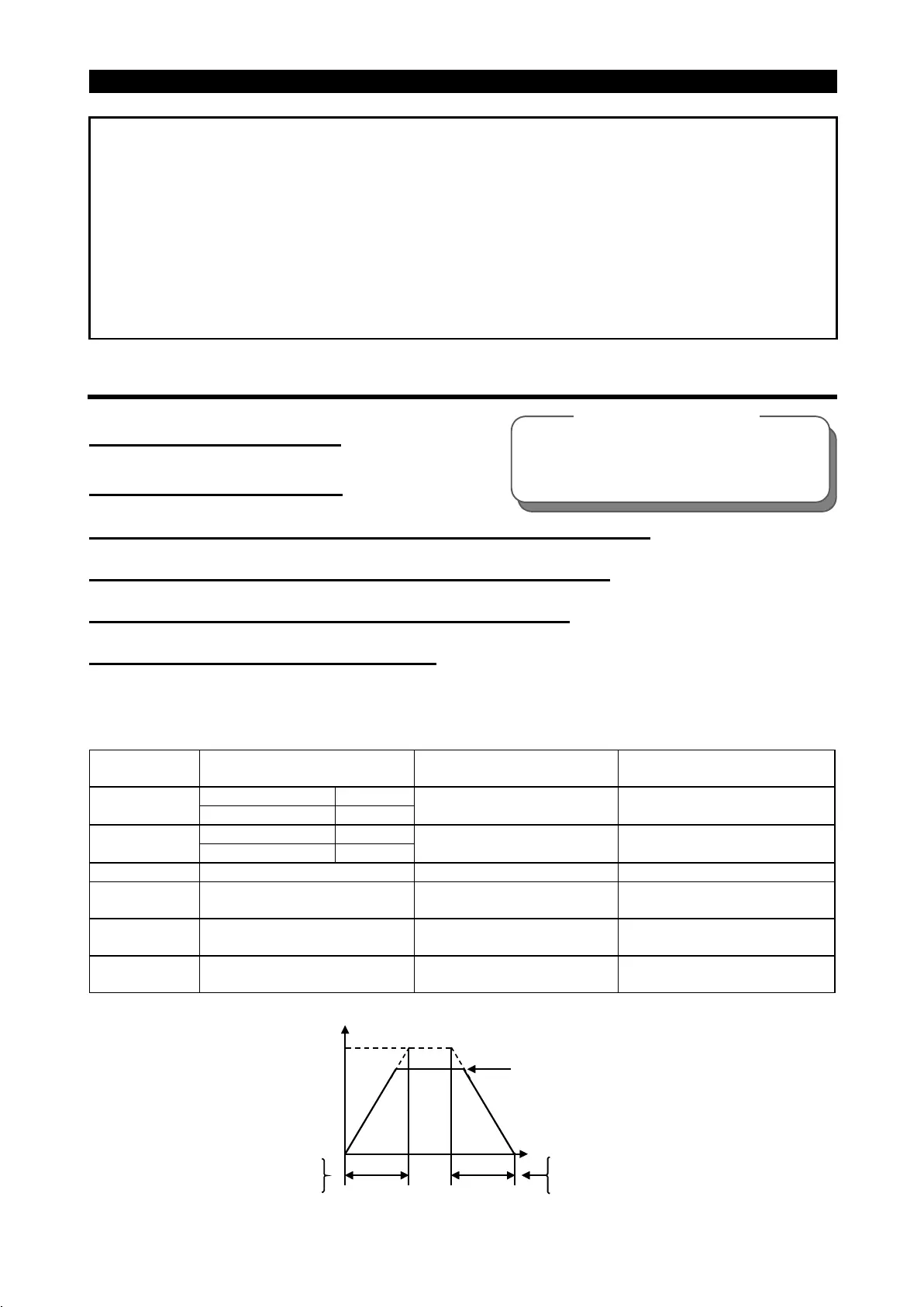

4.2.5 Acceleration time (Pr. 7, Pr. 8, Pr. 20, Pr. 21, Pr. 44, Pr. 45)
Pr. 7 "acceleration time"
Pr. 8 "deceleration time"
Pr. 20 "acceleration/deceleration reference frequency"
Pr. 21 "acceleration/deceleration time increments"
Pr. 44 "second acceleration/deceleration time"
Pr. 45 "second deceleration time"
Used to set motor acceleration/deceleration time.
Set a larger value for a slower speed increase/decrease or a smaller value for a faster
speed increase/decrease.
Parameter
Number
Factory Setting Setting Range Remarks
0.1K to 3.7K 5s
7
5.5K, 7.5K 10s
0 to 3600s/0 to 360s
0.1K to 3.7K 5s
8
5.5K, 7.5K 10s
0 to 3600s/0 to 360s
20 60Hz 1 to 400Hz
21 0 0, 1
0: 0 to 3600s
1: 0 to 360s
44 5s 0 to 3600s/0 to 360s
45 9999
0 to 3600s/
0 to 360s, 9999
9999: acceleration time =
deceleration time
Time
Pr.20
Pr.7
Pr.44
Pr.8
Pr.45
Acceleration Deceleration
Output frequency (Hz)
Running frequency
