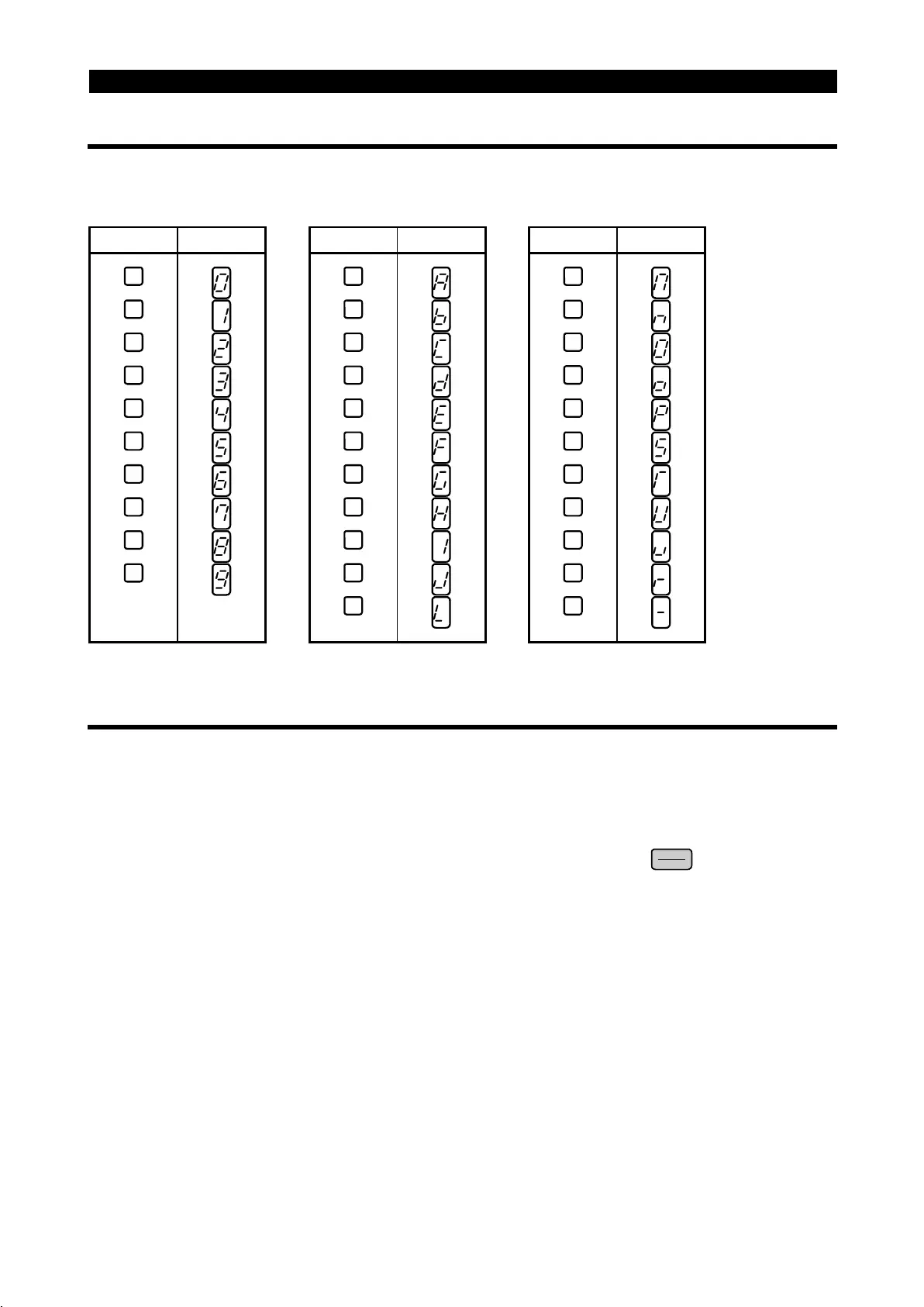

5.1.4 Correspondence between digital and actual characters
There are the following correspondences between the actual alphanumeric characters
and the digital characters displayed on the control panel:
Actual Display Actual Display Actual Display
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
G
H
I
J
L
N
°
P
S
T
U
V
r
-
M
O
5.1.5 Resetting the inverter
The inverter can be reset by performing any of the following operations. Note that the
electronic overcurrent protection's internal heat calculation value and the number of
retries are cleared (erased) by resetting the inverter.
Operation 1 ........ Using the parameter unit (FR-PU04), press the
STOP
RESET
key to reset the
inverter.
(May only be performed when the inverter protective function (major
fault) is activated.)
Operation 2 ........ Switch power off once, then switch it on again.
Operation 3 ........ Switch on the reset signal (RES).
Operation 4 ........ Reset the inverter in the sequence program.
Operation 5 ........ Switch on the RES-SD signal in the sequence program.
