PARAMETERS
84
Pr. 0 "torque boost"
Pr. 46 "second torque boost"
Pr. 80 "motor capacity"
Pr. 180 to Pr. 183
(input terminal (remote output)
function selection)
Related parameters

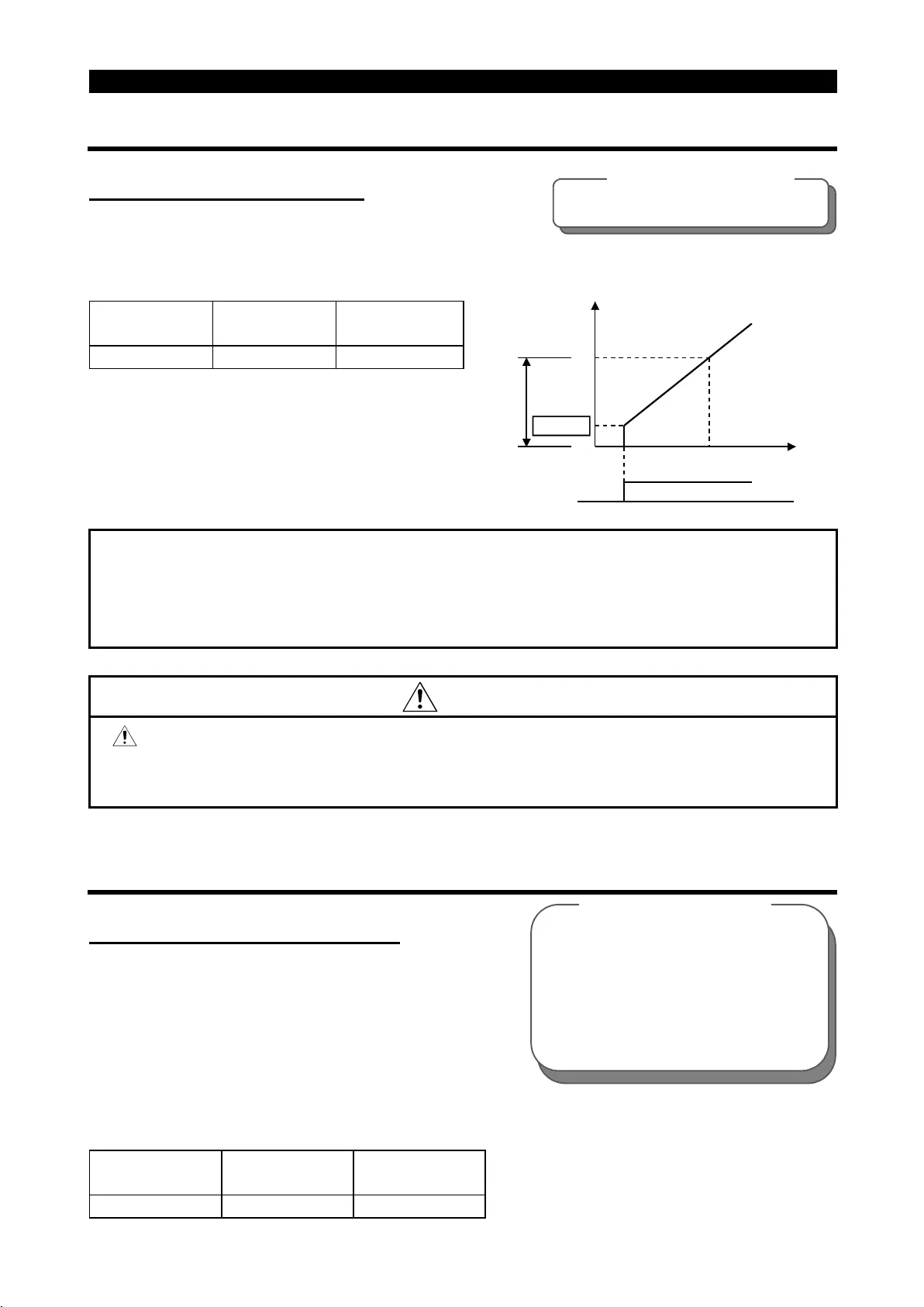

4.2.8 Starting frequency (Pr. 13)
Pr. 13 "starting frequency"
You can set the starting frequency between 0 and 60Hz.
"
Set the starting frequency at which the start signal is switched on.
Parameter
Number
Factory
Setting
Setting
Range
13 0.5Hz 0 to 60Hz
Tim
e
60
Pr.13
ON
0
Setting range
Frequency setting signal (V)
Foward rotation
Output frequency
(Hz)
Note: The inverter will not start if the frequency setting signal is less than the value
set in Pr. 13 "starting frequency".
For example, when 5Hz is set in Pr. 13, the motor will not start running until
the frequency setting signal reaches 5Hz.
CAUTION
When the Pr. 13 setting is equal to or less than the Pr. 2 value, note that
merely switching on the start signal will start the motor at the preset
frequency if the command frequency is not input.
4.2.9 Load pattern selection (Pr. 14)
Pr. 14 "load pattern selection"
You can select the optimum output characteristic (V/F characteristic) for the application
and load characteristics.
Parameter
Number
Factory
Setting
Setting
Range
14 0 0 to 3
Pr. 2 "Minimum frequency"
Related parameters
