INSTALLATION AND WIRING
26
Use the connectors and cables which are available on the market.
Note:1. Connector: RJ45 connector
Example: 5-554720-3, Nippon AMP Co., Ltd.
2. Cable : Cable conforming to EIA568 (such as 10BASE-T cable)
Example: SGLPEV 0.5mm
×
4P, Mitsubishi Cable Industries, Ltd.

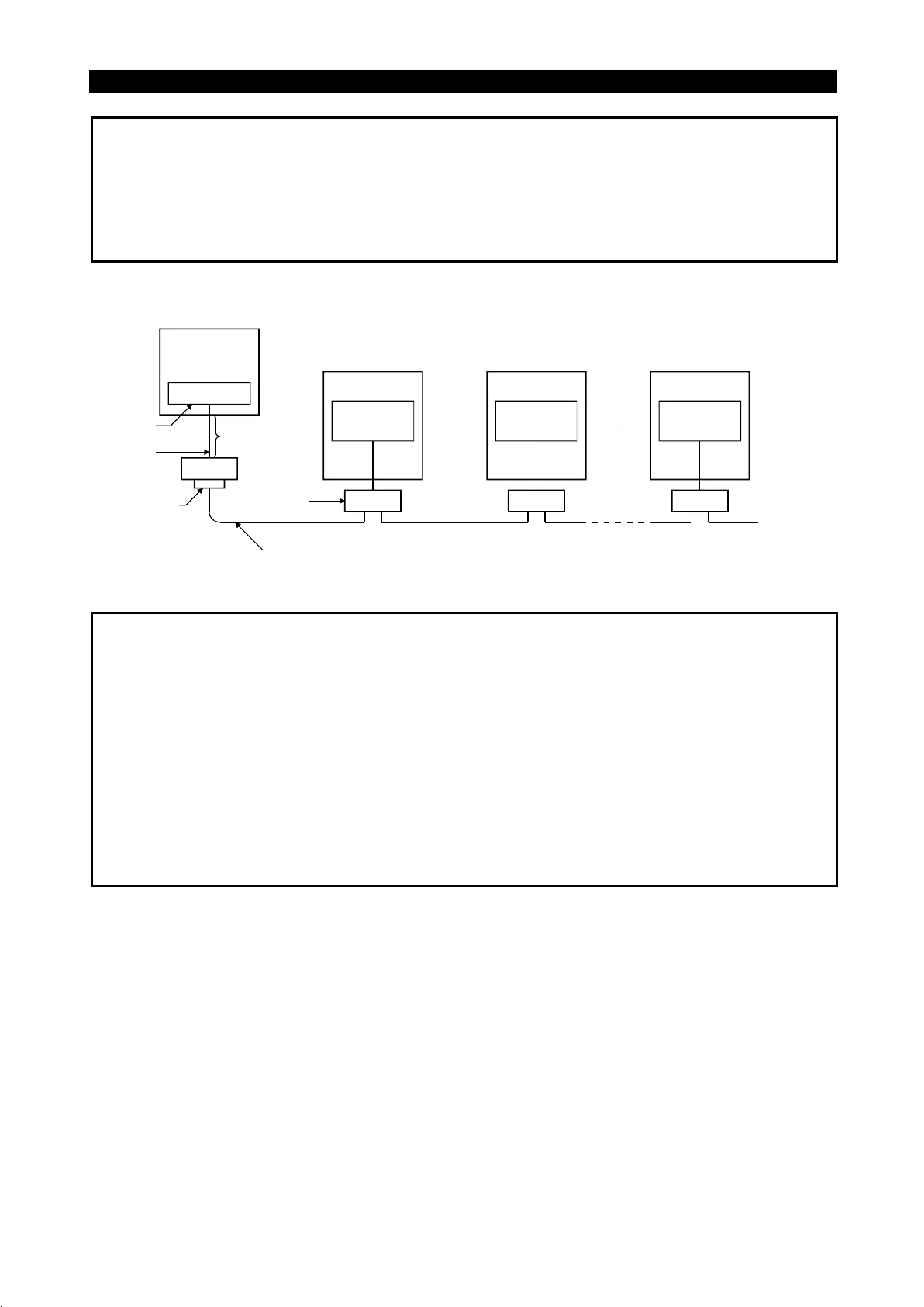

2) When a computer having a RS-232C interface is used with inverters
Computer
RS-232C
connector
RS-232C
cable
RS-485
terminal
Max. 15m
Converter*
Termination
resistor
Distribution
terminal
*Commercially available converter is required. (Note 3)
10BASE-T cable (Note 2)
PU connector
(Note1)
Station 1
Inverter
PU connector
(Note1)
Station 2
Inverter
PU connector
(Note1)
Station n
Inverter
Use the connectors, cables and converter which are available on the
market.
Note:1. Connector: RJ45 connector
Example: 5-554720-3, Nippon AMP Co., Ltd.
2. Cable : Cable conforming to EIA568 (such as 10BASE-T cable)
Example: SGLPEV 0.5mm
×
4P, Mitsubishi Cable Industries, Ltd.
3. *Commercially available converter examples
Model: FA-T-RS40
Converter
Nagoya Sales Office, Mitsubishi Electric Engineering Co., Ltd.
To Next Page
