Mitsubishi FX3G Series Programming Manual

140
FX3G/FX3U/FX3GC/FX3UC Series
Programming Manual - Basic & Applied Instruction Edition
4 Devices in Detail
4.10 Extension Register [R] and Extension File Register [ER]
3 Setting the data

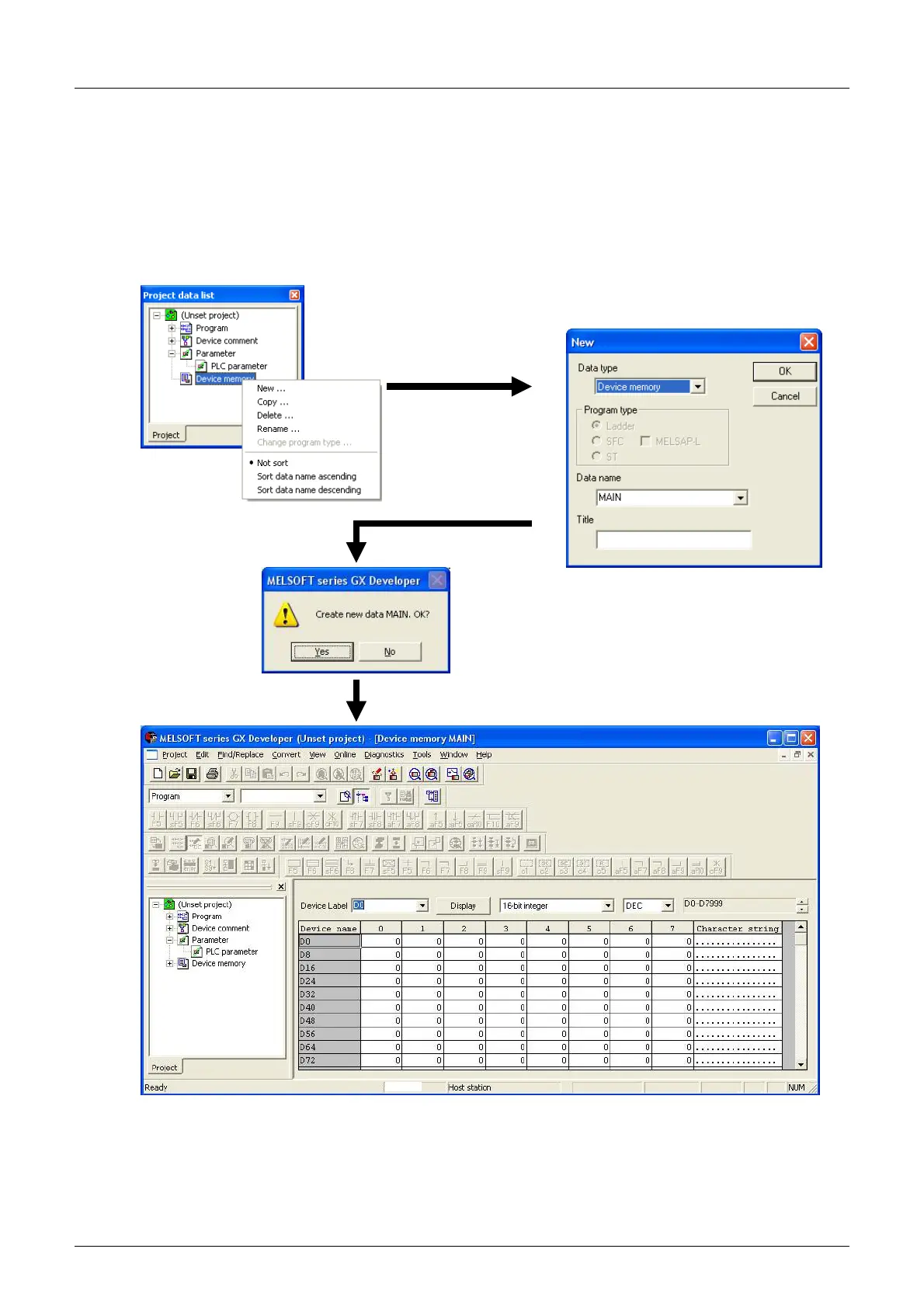

1. Right-click [Device memory] in the project data list to open the submenu.
2. Click [New] on the submenu to display "New" dialog box.
3. Click the [OK] button to display the dialog box for confirmation.
4. Click the [Yes] button.
*1. For Ver. 8.18U to 8.24A of GX Developer, the PLC type is FX3UC.
FX3U(C)*1

Mitsubishi FX3G Series Specifications

General

Model	FX3G Series
Power Supply	AC 100-240V or DC 24V
Program Capacity	32, 000 steps
Execution Speed	0.21 µs/basic instruction
Communication Options	RS-422, USB, Ethernet
Expansion Modules	Analog, digital, communication
Programming Language	Ladder Logic, Instruction List
Built-in Functions	High-speed counters, pulse output
Analog I/O	Available via expansion modules
