Mitsubishi FX3G Series Programming Manual

452
FX3G/FX3U/FX3GC/FX3UC Series
Programming Manual - Basic & Applied Instruction Edition
16 External FX Device – FNC 80 to FNC 89

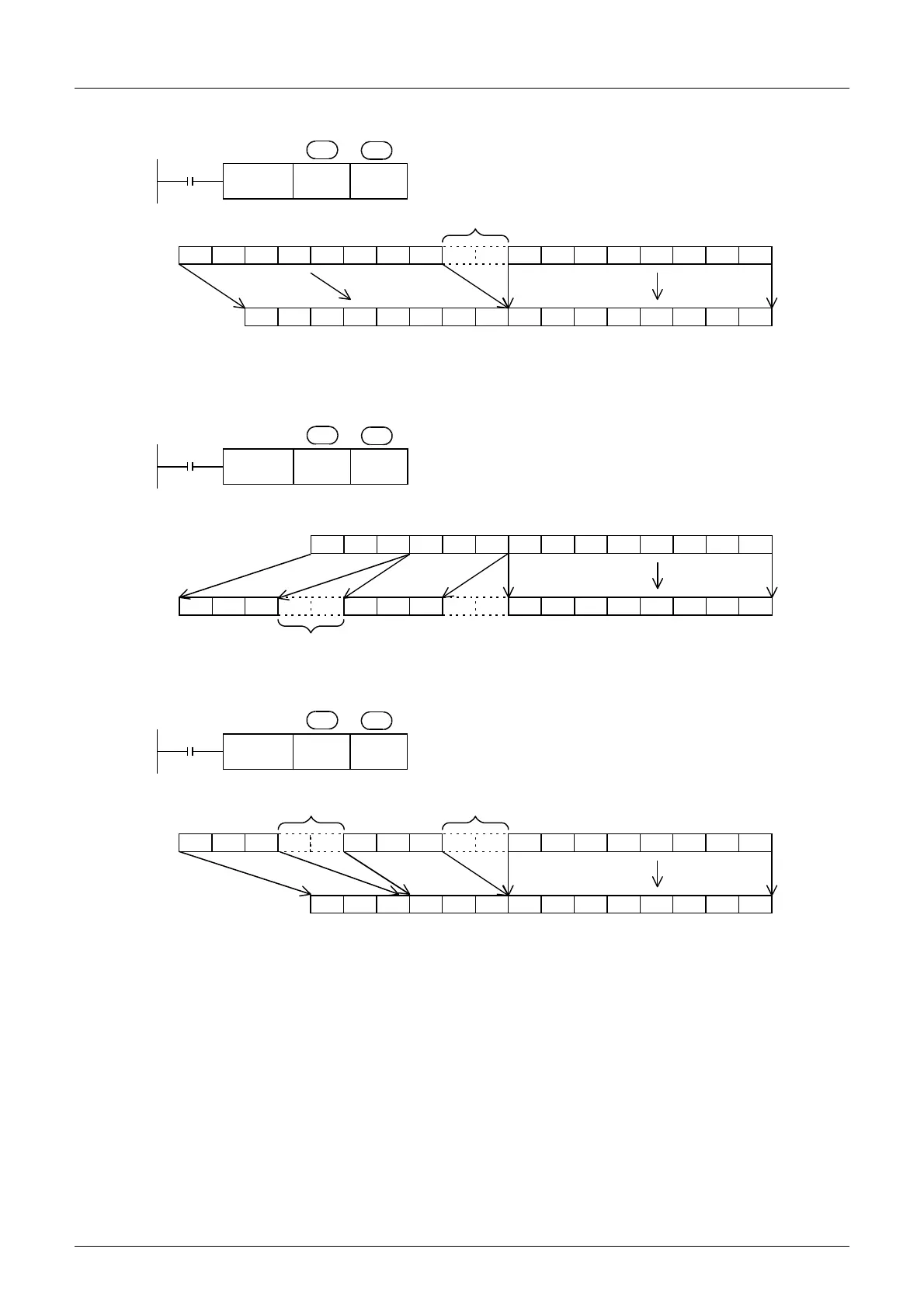

16.2 FNC 81 – PRUN / Parallel Run (Octal Mode)
Decimal bit device → Octal bit device
2. 32-bit operation (DPRUN and DPRUNP)
Octal bit device → Decimal bit device
Decimal bit device → Octal bit device
Command
input
FNC 81
PRUN
K4M0 K4Y000
S 
D 
Octal bit device (Y)
Y17 Y16 Y15 Y14 Y13 Y12 Y11 Y10 Y7 Y6 Y5 Y4 Y3 Y2 Y1 Y0
M15 M14 M13 M12 M11 M9 M8 M7 M6 M5 M4 M3 M2 M1 M0M17 M16 M10
Decimal bit device (M)
Not transferred
M0 to M7, M10 to M17 → Y0 to Y17
Command
input
FNC 81
DPRUN
K6X000 K6M0
S 
D 
X000 to X027 → M0 to M7, M10 to M17, M20 to M27
Octal bit device (X)
X27 … X20 X17 … X10 X7 X6 X5 X4 X3 X2 X1 X0
M19 M18 M17 … M9 M8 M7 M6 M5 M4 M3 M2 M1 M0M27 …
M18 and M19 do not change
Decimal bit device (M)
M10M20
Command
input
FNC 81
DPRUN
K6M0 K6Y000
S 
D 
Octal bit device (Y)
Y27 … Y20 Y17 … Y10 Y7 Y6 Y5 Y4 Y3 Y2 Y1 Y0
M19 M18 M17 … M9 M8 M7 M6 M5 M4 M3 M2 M1 M0M27 …
Decimal bit device (M)
Not transferred
M0 to M7, M10 to M17, M20 to M27
→ Y000 to Y027
Not transferred
M20 M10

Mitsubishi FX3G Series Specifications

General

Model	FX3G Series
Power Supply	AC 100-240V or DC 24V
Program Capacity	32, 000 steps
Execution Speed	0.21 µs/basic instruction
Communication Options	RS-422, USB, Ethernet
Expansion Modules	Analog, digital, communication
Programming Language	Ladder Logic, Instruction List
Built-in Functions	High-speed counters, pulse output
Analog I/O	Available via expansion modules
