58
FX3G/FX3U/FX3GC/FX3UC Series
Programming Manual - Basic & Applied Instruction Edition
2 Overview (Sequence Program)
2.7 Types and Setting of Parameters
3. Click [End] button to finish the setting and close "Special Function Block Settings" dialog box.

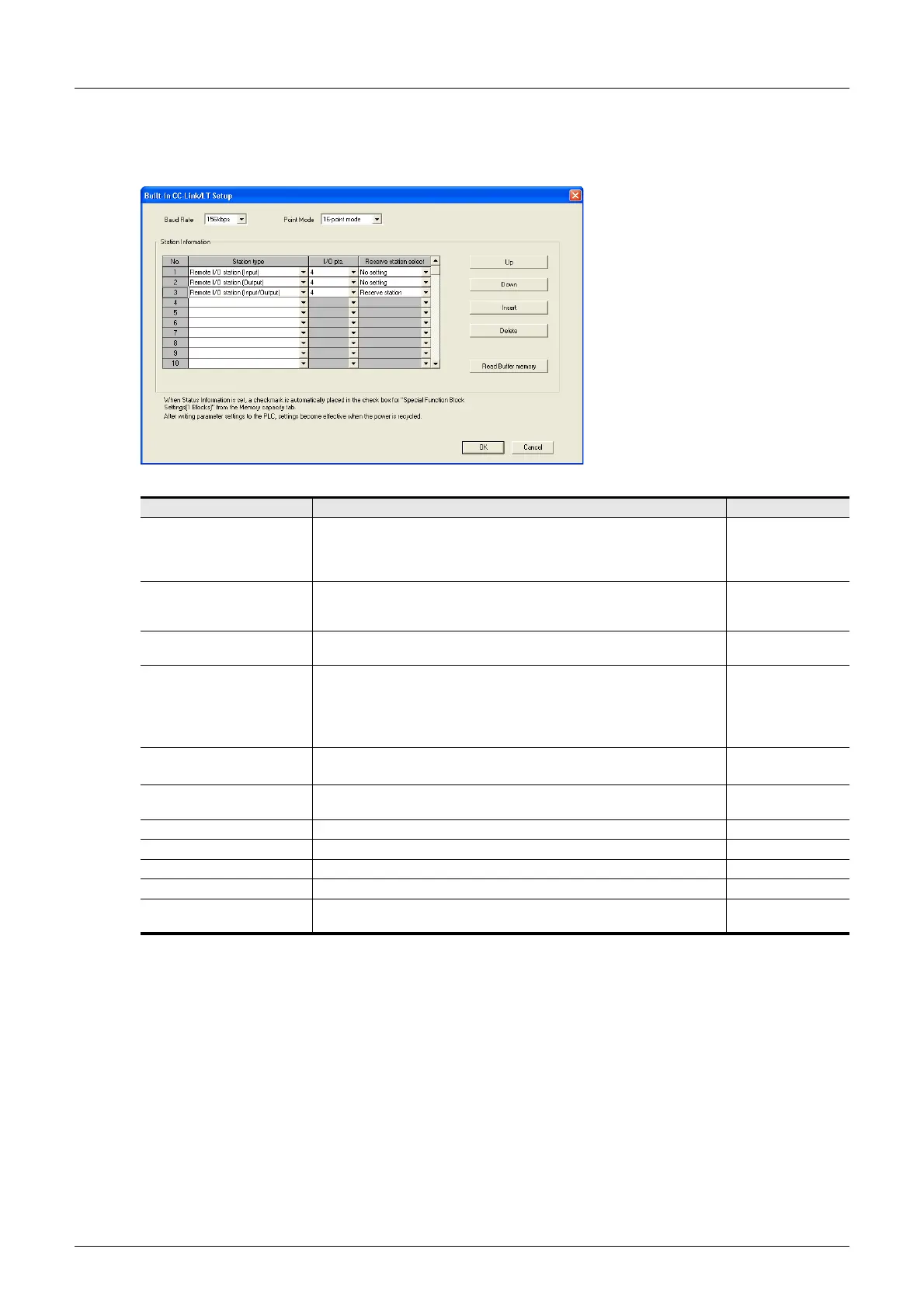

4. Set the built-in CC-Link/LT on the "Built-in CC-Link/LT Setup" dialog box.
This item can be set only in the FX3UC-32MT-LT-2.
*1. Select 16-point mode when using remote device stations. Remote device stations cannot be set in 4-point
mode.
Only station numbers 40 to 64 are available for remote device stations.
*2. The station numbers 32, 48 and 64 are available when a remote device station is selected in Station type.
5. Click the [OK] button to finish the setup and close the "Built-in CC-Link/LT Setup" dialog box.
Set item Contents of setting Setting range
Baud Rate
Select one of the following supported built-in CC-Link/LT transmission rates:
2.5Mbps
625kbps
156kbps
Point Mode
Select one of the following supported point modes:
16-point mode
4-point mode
No.
This item indicates the station number of the built-in CC-Link/LT module.
Station numbers 1 to 64 are available.
Station type
Select one of the following station type:
Remote I/O station (Input)
Remote I/O station (Output)
Remote I/O station (Input/Output)
Remote device station
*1
I/O pts
Select one of the following supported I/O point counts for each remote
I/O and remote device station: 1 to 16, 32, 48, 64
*2
1 to 16, 32, 48, 64
*2
Reserve station select
Select whether or not the Built-in CC-Link/LT station is specified as a reserved
station.
Up This button moves the cursor to the upper line (transposes the upper line).
Down This button moves the cursor to the lower line (transposes the lower line).
Insert This button inserts a line in the currently selected position.
Delete This button deletes the currently selected line.
Read Buffer memory
Click this button to read the transmission rate, point mode and station
information of the built-in CC-Link/LT module.
