Mitsubishi FX3G Series Programming Manual

610
FX3G/FX3U/FX3GC/FX3UC Series
Programming Manual - Basic & Applied Instruction Edition
26 Character String Control – FNC200 to FNC209
26.1 FNC200 – STR / BIN to Character String Conversion
• When the devices and later storing a character string exceeds the corresponding device range (error code:
K6706)
Program example

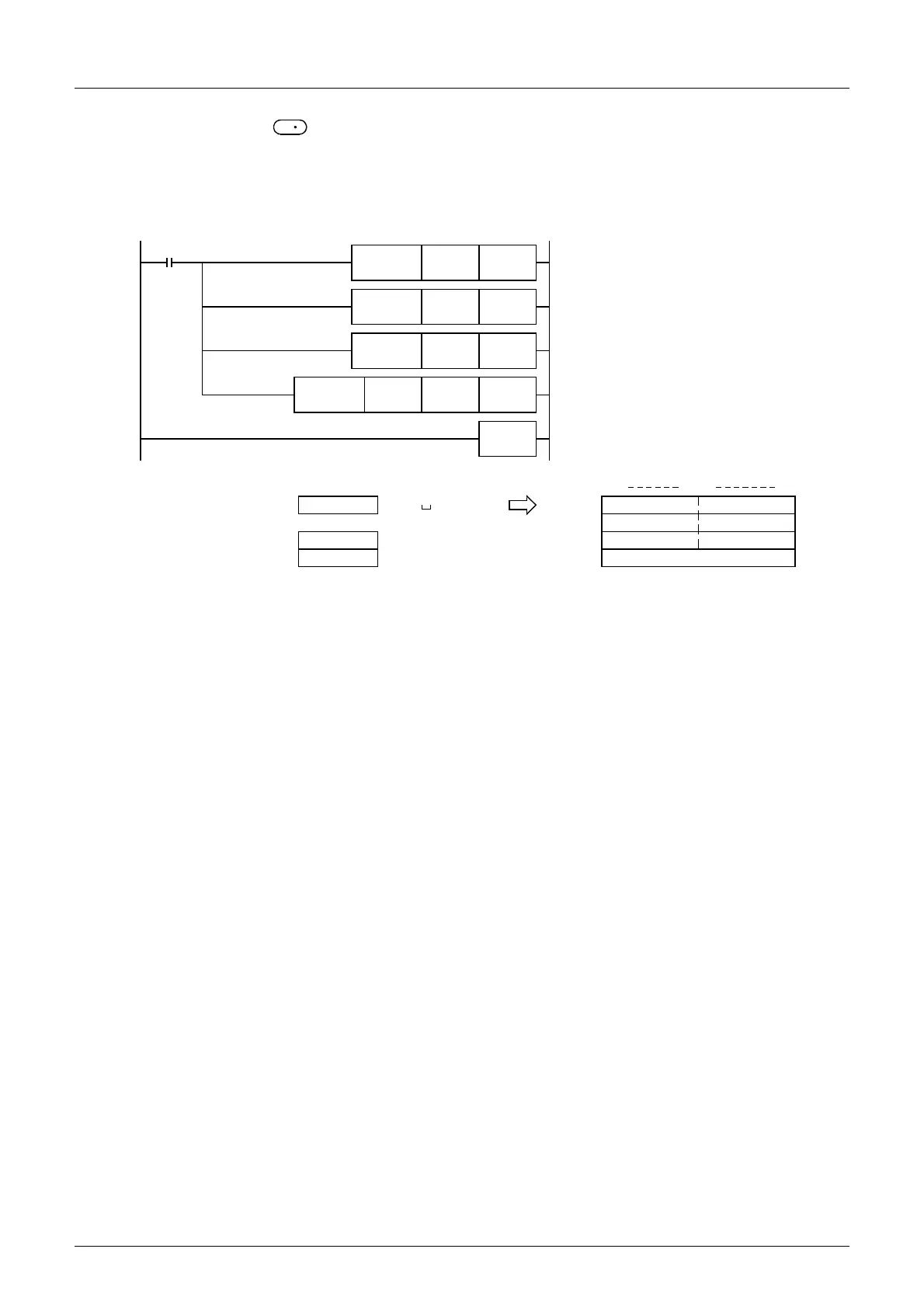

In the program below, the 16-bit binary data stored in D10 is converted into a character string in accordance with the
digit specification by D0 and D1 when X000 is set to ON, and then stored in D20 to D23.
D
X000
Data to be converted is set.
FNC 12
MOVP
K12672 D10
END
K6 D0
K0 D1
FNC200
STRP
D0 D10 D20
FNC 12
MOVP
FNC 12
MOVP
The number of all digits is set.
The number of digits of the decimal
part is set.
12672
6
0
b15 b8 b7 b0
D20
D21
D22
31H(1)
36H(6)
0000H
20H(space)
32H(2)
32H(2) 37H(7)
D23
D10
D0
D1
Number of all digits
Number of digits of
decimal part
16-bit binary data "
12672"

Mitsubishi FX3G Series Specifications

General

Model	FX3G Series
Power Supply	AC 100-240V or DC 24V
Program Capacity	32, 000 steps
Execution Speed	0.21 µs/basic instruction
Communication Options	RS-422, USB, Ethernet
Expansion Modules	Analog, digital, communication
Programming Language	Ladder Logic, Instruction List
Built-in Functions	High-speed counters, pulse output
Analog I/O	Available via expansion modules
