Mitsubishi FX3G Series Programming Manual

677
FX3G/FX3U/FX3GC/FX3UC Series
Programming Manual - Basic & Applied Instruction Edition
29 Data Table Operation – FNC250 to FNC269
29.7 FNC269 – SCL2 / Scaling 2 (Coordinate by X/Y Data)
21
FNC160-FNC169 Real Time Clock Control
22
FNC170-FNC179 External Device
23
FNC180 Alternate Instructions
24
FNC181-FNC189 Others
25
FNC190-FNC199 Block Data Operation
26
FNC200-FNC209 Character String Control
27
FNC210-FNC219 Data Operation 3
28
FNC220-FNC249 Data Comparison
29
FNC250-FNC269 Data Table Operation
30
FNC270-FNC275 Ex-Device Inverter Comms

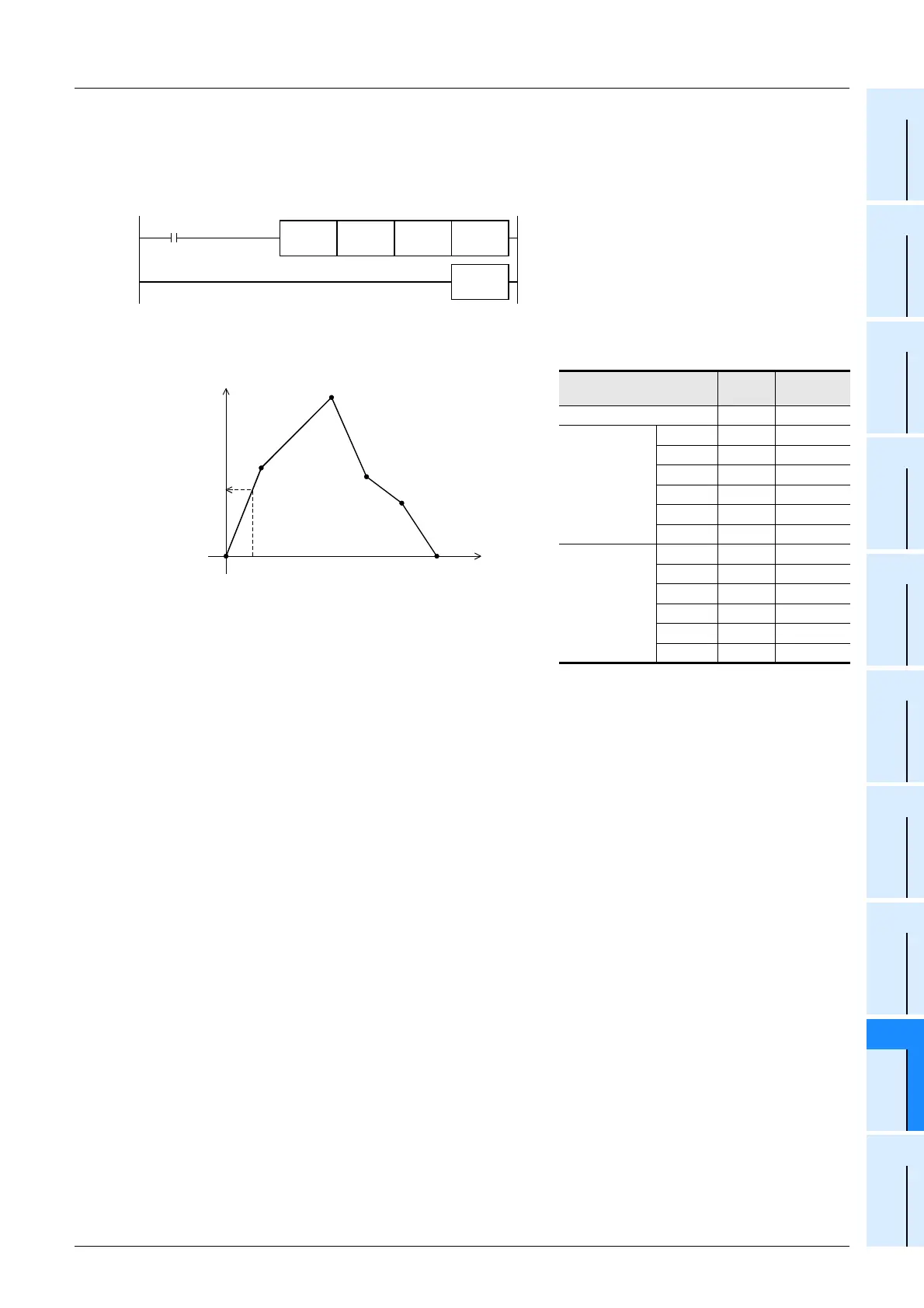

Program example
In the program example shown below, the value input to D0 is processed by scaling based on the conversion table for
scaling set in R0 and later, and output to D10.
Program
Operation
Conversion setting data table for scaling
Set item Device
Setting
contents
Number of coordinate points R0 K6
X coordinate
Point 1 R1 K0
Point 2 R2 K10
Point 3 R3 K30
Point 4 R4 K40
Point 5 R5 K50
Point 6 R6 K60
Y coordinate
Point 1 R7 K0
Point 2 R8 K50
Point 3 R9 K100
Point 4 R10 K45
Point 5 R11 K30
Point 6 R12 K0
M8000
R0 D10
FNC 269
SCL2
END
D0
Input value(D0)=7
Output value
(D10)=35
Point 1
(0,0)
X
Y
Point 2
(10,50)
Point 3
(30,100)
Point 4
(40,45)
Point 5
(50,30)
Point 6
(60,0)

Mitsubishi FX3G Series Specifications

General

Model	FX3G Series
Power Supply	AC 100-240V or DC 24V
Program Capacity	32, 000 steps
Execution Speed	0.21 µs/basic instruction
Communication Options	RS-422, USB, Ethernet
Expansion Modules	Analog, digital, communication
Programming Language	Ladder Logic, Instruction List
Built-in Functions	High-speed counters, pulse output
Analog I/O	Available via expansion modules
