Mitsubishi FX3G Series Programming Manual

761
FX3G/FX3U/FX3GC/FX3UC Series
Programming Manual - Basic & Applied Instruction Edition
35 SFC Program and Step Ladder
35.1 SFC Program
31
FNC276-FNC279 Data Transfer 3
32
FNC280-FNC289 High-Speed Processing 2
33
FNC290-FNC299 Extension File Register
34
FNC300-FNC305 FX
3U
-CF-ADP
35
SFC•STL Programming
36
Interrupt Function
37
Special Device
38
Error Code
A
Version Up Information
B
Execution Times

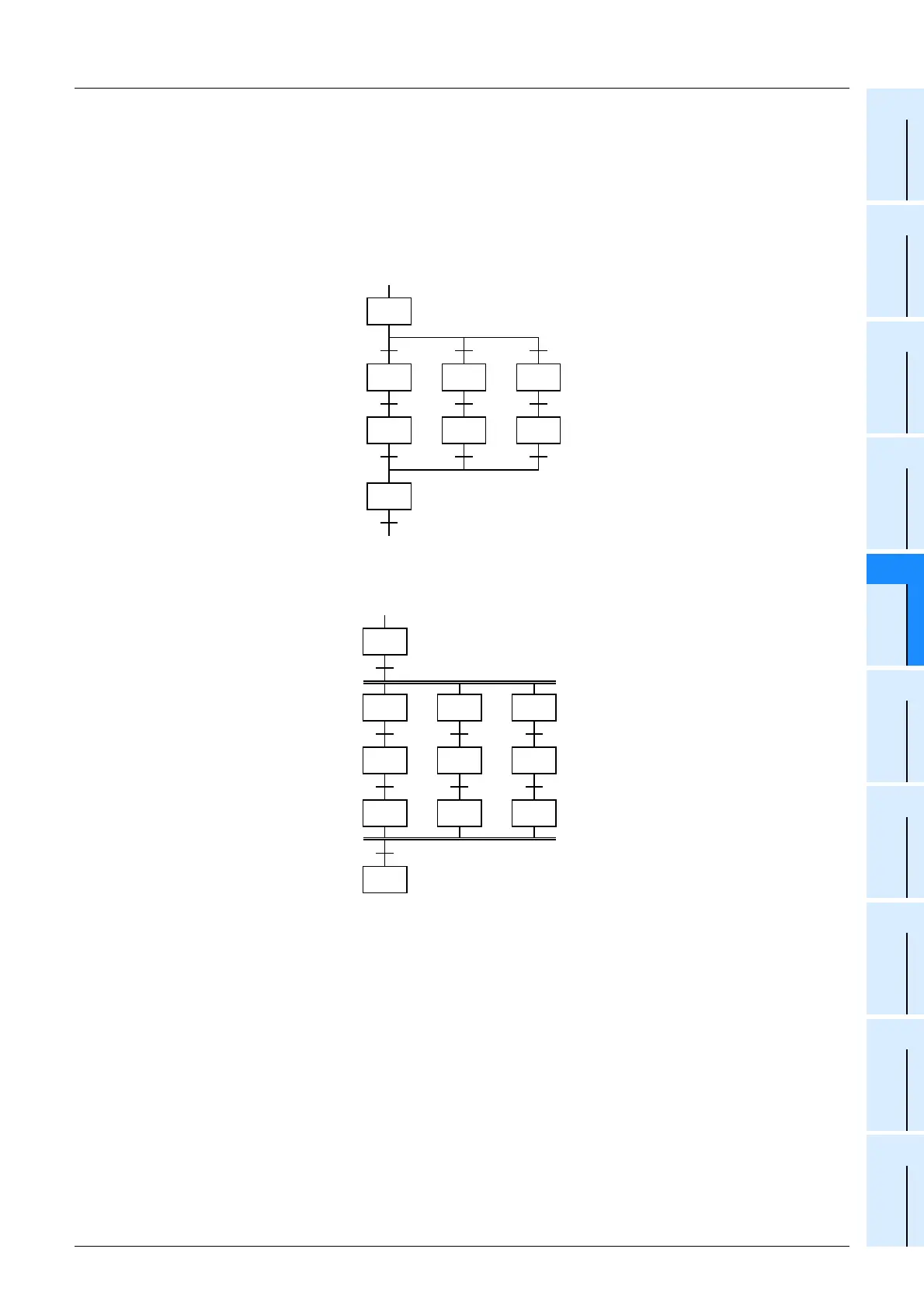

Composite flows with branches and recombination
The single flow format is the fundamental style in process transfer control. Only single flow is sufficient in sequence
control for simple operations. When various input conditions and operator manipulations intervene, however,
complicated conditions can be easily handled by using selective branches and parallel branches.
A branch for selectively processing many processes depending on a condition is called selective branch. A branch for
processing many processes at the same time is called parallel branch.
1. Selective branch
Either one among many flows is selected and executed.
2. Parallel branch
All of many flows are executed at the same time.
Branch state
relay
Recombination
state relay
Branch state
relay
Recombination
state relay

Mitsubishi FX3G Series Specifications

General

Model	FX3G Series
Power Supply	AC 100-240V or DC 24V
Program Capacity	32, 000 steps
Execution Speed	0.21 µs/basic instruction
Communication Options	RS-422, USB, Ethernet
Expansion Modules	Analog, digital, communication
Programming Language	Ladder Logic, Instruction List
Built-in Functions	High-speed counters, pulse output
Analog I/O	Available via expansion modules
