Mitsubishi FX3G Series Programming Manual

764
FX3G/FX3U/FX3GC/FX3UC Series
Programming Manual - Basic & Applied Instruction Edition
35 SFC Program and Step Ladder
35.1 SFC Program
Composition of branches/recombination and dummy state

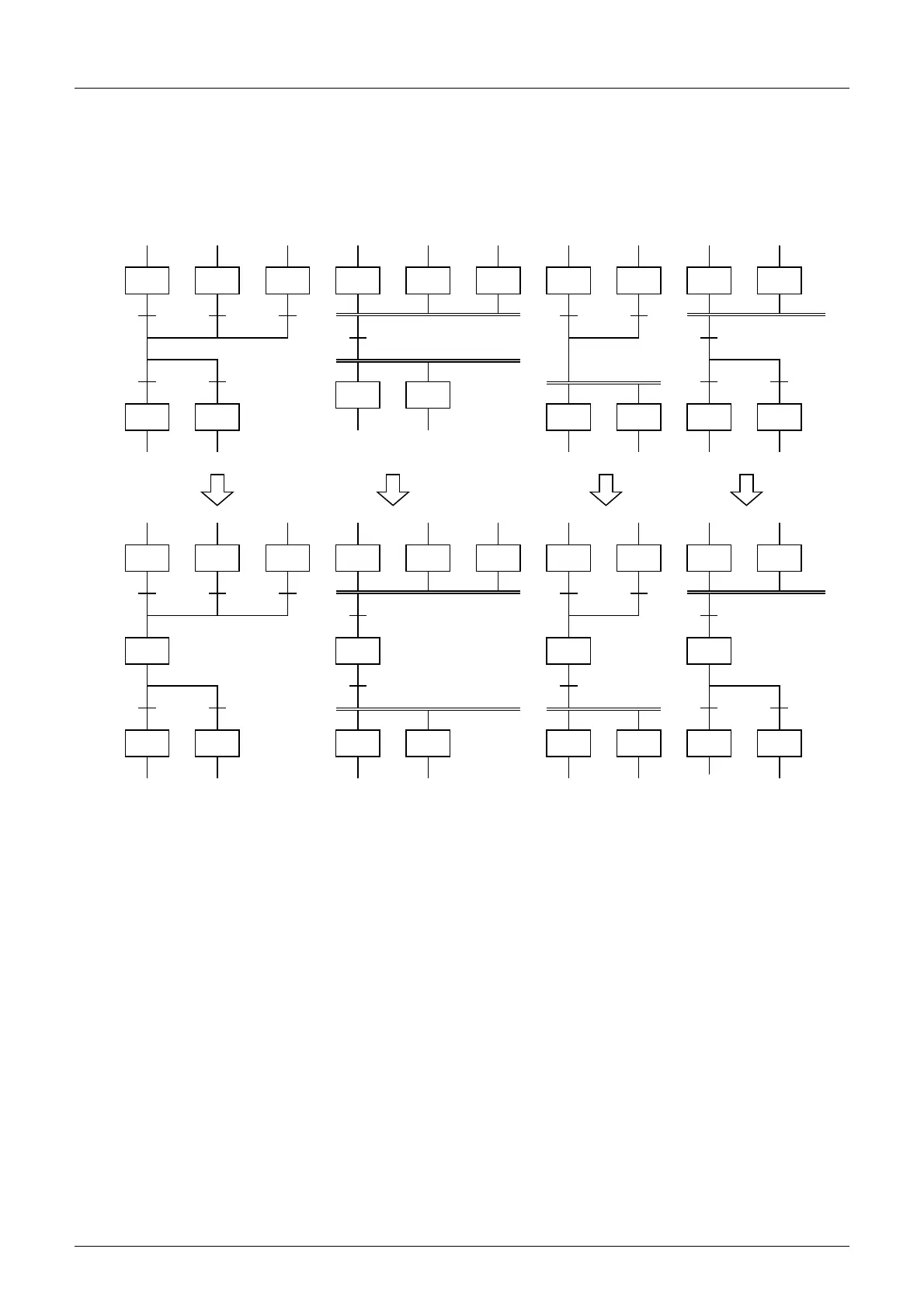

1. When a recombination line is directly connected to a branch line without a state relay
When a recombination line is directly connected to a branch line without a state relay as shown below, it is necessary
to provide a dummy state relay between the lines.
There are no dedicated numbers for dummy state relays.
Use a state relay number not used in a program as a dummy state relay.
Dummy state
relay
20 30 40
50 60
20 30 40
50 60
20 30
40 50
20 30
40 50
20 30 40
50 60
20 30 40
50 60
20 30
40 50
20 30
40 50
Deform it
as follows.
100
Dummy state
relay
101 102 103
Dummy state
relay
Dummy
state
relay

Mitsubishi FX3G Series Specifications

General

Model	FX3G Series
Power Supply	AC 100-240V or DC 24V
Program Capacity	32, 000 steps
Execution Speed	0.21 µs/basic instruction
Communication Options	RS-422, USB, Ethernet
Expansion Modules	Analog, digital, communication
Programming Language	Ladder Logic, Instruction List
Built-in Functions	High-speed counters, pulse output
Analog I/O	Available via expansion modules
