Mitsubishi FX3U-4AD User Manual

C-9
2 Specifications
2.4 A/D Conversion Time
FX 3G /FX 3U /FX 3UC PLC User's Manual - Analog Control Edition
FX3U-4AD-ADP (4-channel analog Input)
A
Common Items
B
FX
3U
-4AD
FX
3UC
-4AD
C
FX
3U
-4AD-ADP
D
FX
3G
-2AD-BD
E
FX
3U
-4DA
F
FX
3U
-4DA-ADP
G
FX
3G
-1DA-BD
H
FX
3U
-4AD-PT
-ADP
I
FX
3U
-4AD-PTW
-ADP
J
FX
3U
-4AD-PNK
-ADP
2.4.2 When connected to a FX3G PLC
1. A/D conversion and special data register update timing
A/D conversion is performed at every scan time of the PLC.
During execution of END instruction, the PLC performs A/D conversion, reads out the A/D converted data,
and then writes the data in the special data registers.
2. A/D conversion during PLC STOP
Even if the PLC is stopped, A/D conversion will be performed and the special data registers will be updated.
3. If two analog special adapters are connected
During execution of the END instruction, data will be read out from all the connected adapters (in the order of
1st adapter → 2nd adapter).

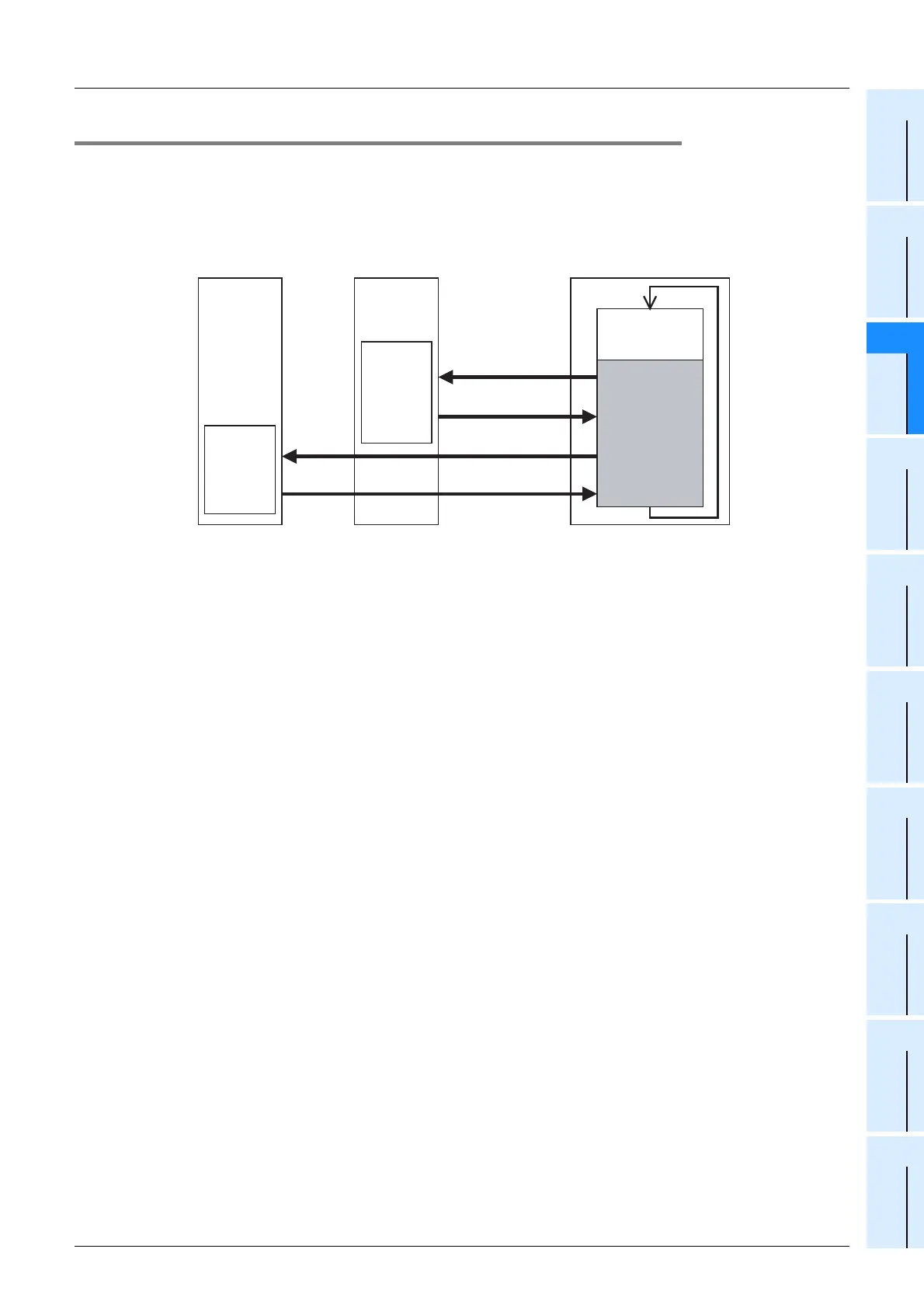

4. A/D conversion speed (data update time)
During execution of END instruction, the A/D converted data of all 4 channels will be read out in 250µs, and
the data read out will be written to the special data registers.
END instruction execution time will be "250µs × number of connected analog adapters."
FX 3G Series PLC
FX 3U -4AD-ADP
1st
FX 3U -4AD-ADP
2nd
A/D
conversion
250µs/4ch
A/D
conversion
250µs/4ch
Digital value writing
A/D conversion start
command
END instruction
Sequence
program
Digital value writing
A/D conversion start
command
