PLC User's Manual - Analog Control Edition
FX3U-4AD/FX3UC-4AD (4-channel Analog Input)
1.3 Connectable PLC and Version Numbers
FX3U-4AD is compatible with the following PLC.
FX
3UC-4AD is compatible with the following PLC.

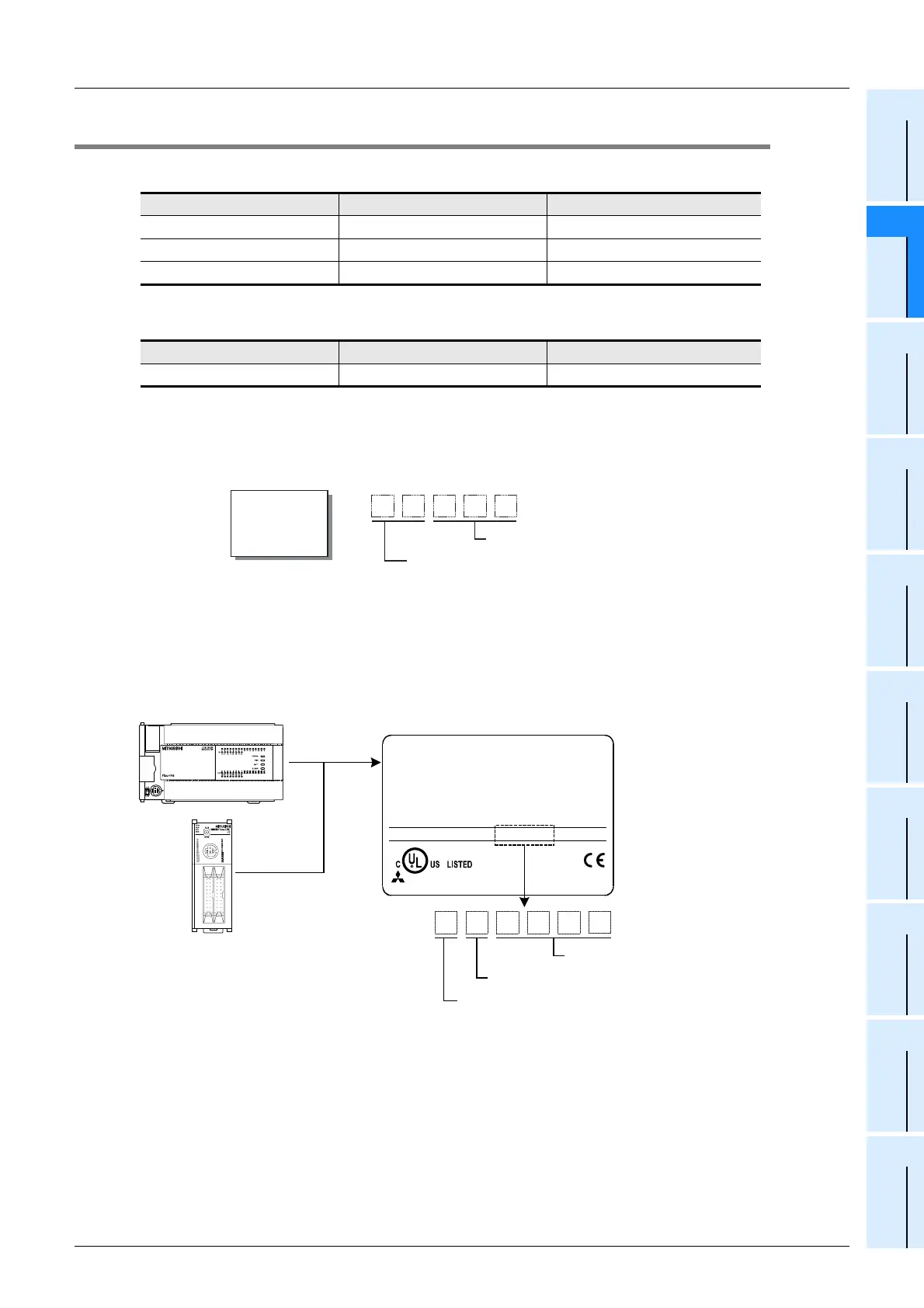

1. Version check
Special data register D8001 contains information for determining the PLC version number.
2. How to look at the manufacturer's serial number
The year and month of product production can be seen from the manufacturer's serial number "SERIAL"
indicated on the label adhered to the right side of the product.
Compatible PLC Version number Date of production
FX
3U Series PLC Ver. 2.20 or later from first product
FX
3UC Series PLC Ver. 1.30 or later August 2004 and later
FX
3G Series PLC Ver. 1.00 or later from first product
Compatible PLC Version number Date of production
FX
3UC Series PLC Ver. 1.30 or later August 2004 and later
D8001
PLC type and
version number
2 4 1 0 0
Version data (Example: Ver. 1.00)
PLC type Example: 24 = FX
3U
and FX
3UC
series
26 = FX
3G
series
)(
5 7 0 0 0
Control number
Year (Example: 5 = 2005), last digit of dominical year
1
Month (Example: 7 = July), 1 to 9 = January to September,
X = October, Y = November, Z = December
Example:
FX
3U
-48MR/ES(production number : 570001)
MITSUBISHI
MODEL
100-240VAC 50/60Hz 40W
SERIAL
FX
3U
-48MR/ES
PROGRAMMABLE
CONTROLLER
570001
OUT:30VDC/240VAC 2A(COS
φ
=1)
80M1 IND. CONT. EQ.
MITSUBISHI ELECTRIC CORPORATION
MADE IN JAPAN
Right side
