A-6
2 Description of Analog Products
2.1 Types of Analog Products
FX 3G /FX 3U /FX 3UC PLC User's Manual - Analog Control Edition
Common Items
2.1 Types of Analog Products
2.1.2 Special adapter

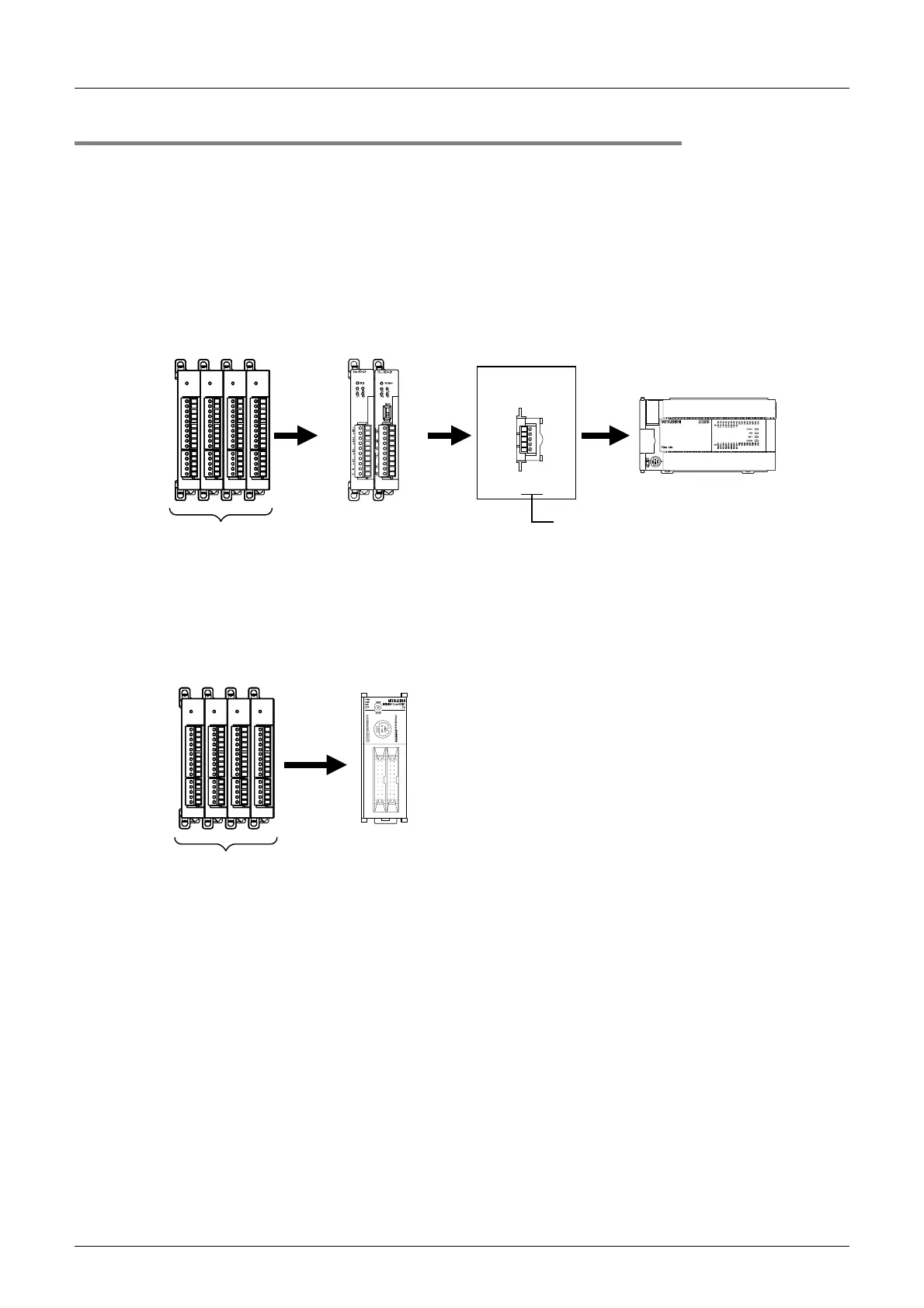

The analog special adapter uses PLC devices to send/receive data to/from the PLC.
1. FX3U Series PLC
• Connect the special adapter(s) to the left side of the FX3U Series PLC.
• An expansion board is needed to connect the special adapter(s).
• Up to 4 analog special adapters can be connected.
• When using the high-speed input/output special adapter(s), be sure to connect the high-speed input/output
special adapter(s) first, and then connect the analog special adapter(s).
→ For a detailed description of the system configuration, refer to the PLC User’s Manual - Hardware
Edition.
2. FX3UC (D, DSS) Series PLC
• Connect the special adapter(s) to the left side of the FX3UC (D, DSS) Series PLC.
• Up to 4 analog special adapters can be connected.
→ For a detailed description of the system configuration, refer to the PLC User’s Manual - Hardware
Edition.
PO ER
FX 3U -4AD-ADP
WPOWE R
FX 3U -4AD-ADP
POWER
FX 3U -4AD-ADP
POWE R
FX 3U -4AD-ADP
RD
RDA
RDB
SDA
SDB
SG
SD
FX 3U -***-BD
Up to 4 Analog adapters can be connected.
PLC
"***" represents "422", "232",
"485", "CNV", or "USB."
Analog special adapters
Expansion board
High-speed
input/output
special adapters
PO ER
FX 3U -4AD-ADP
WPOW ER
FX 3U -4AD-ADP
POWER
FX 3U -4AD-ADP
POWER
FX 3U -4AD-ADP
Up to 4 Analog adapters can be connected.
PLC
Analog special adapters
