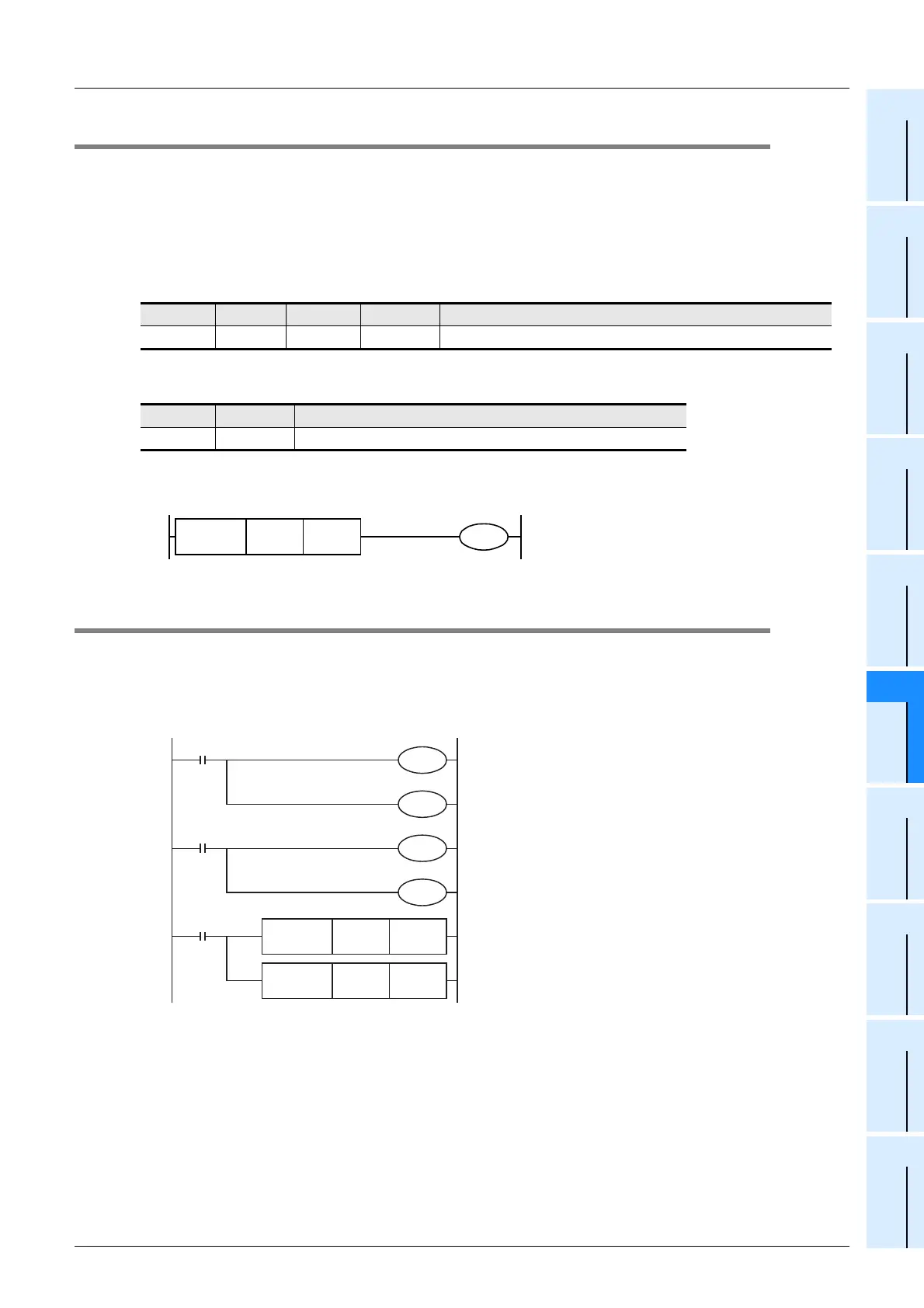

4.7 Model Code
Initial value: K2
Numeric data type: Decimal (K)
1. Description of setting
When the 4DA-ADP is connected, model code "2" is stored in the corresponding special data register.
The following table shows the special data registers that store the model code:
•FX
3U, FX3UC Series PLC
•FX
3G Series PLC
Use the special data registers above to check whether 4DA-ADP is connected or not.
2. Program Example (For FX3U, FX3UC Series PLC)
4.8 Basic Program Example
Create the following basic program example to output D/A converted analog data.
•For FX
3G, FX3U, FX3UC Series PLC
The following program will set channel 1 of the 3rd
*1
adapter to the voltage output mode and channel 2 to
current output mode, and will set digital data in D100 and D101 for D/A conversion.
Using the indicator or the sequence program, input the digital data to be subject to D/A conversion (to be
output as analog data) in D100 and D101.
*1. "1st" for the FX
3G PLC.
1st 2nd 3rd 4th Description
D8269 D8279 D8289 D8299 Model code
1st 2nd Description
D8289 D8299 Model code
FNC 224
LD =
D8269 K2
Checks the model code
of the 1st analog special
adapter.
Y007
M8001
M8280
M8000
M8281
Sets the output mode of channel 1 to the voltage
output mode (0 V to 10 V).
Sets the output mode of channel 2 to the current
output mode (4 mA to 20 mA).
M8000
FNC 12
MOV
D100 D8280
FNC 12
MOV
D101 D8281
Performs D/A conversion with the digital data stored
in D100 for channel 1.
Performs D/A conversion with the digital data stored
in D101 for channel 2.
M8284
Sets the output holding function for channel 1.
M8285
Cancels the output holding function for channel 2.
