K-5
1 Outline
1.3 Connectable PLC and Its Version Number
FX
3G
/FX
3U
/FX
3UC
PLC User's Manual - Analog Control Edition
FX3U-4AD-TC-ADP (4-channel Thermocouple Data Input)
K
FX
3U
-4AD-TC
-ADP
L
PID Instruction
(FNC 88)

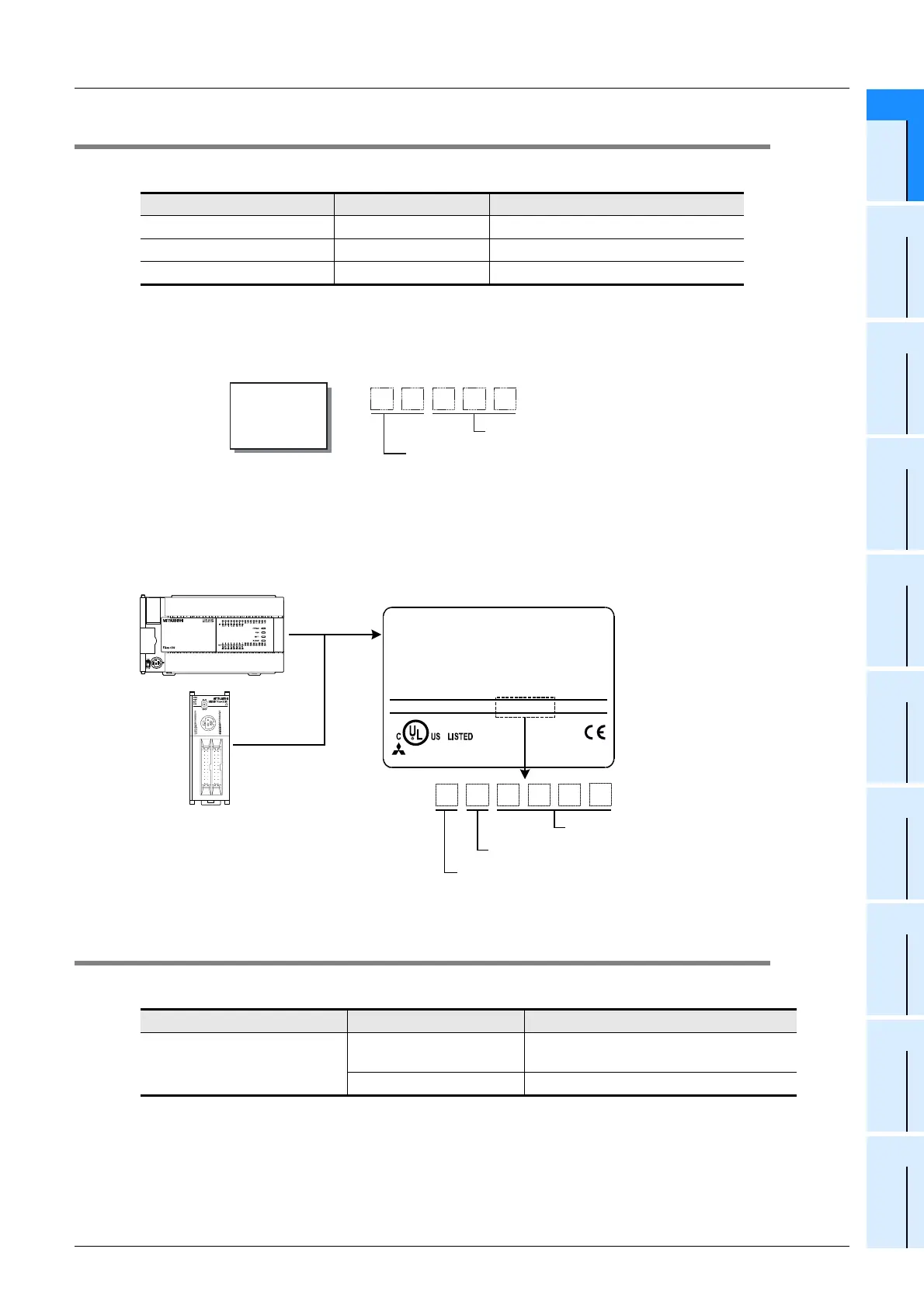

1.3 Connectable PLC and Its Version Number
TC-ADP is compatible with the following PLC.
1. Version check
Special data register D8001 contains information for determining the PLC version number.
2. How to look at the manufacturer's serial number
The year and month of production of the product can be seen from the manufacturer's serial number
"SERIAL" indicated on the label adhered to the right side of the product.
1.4 Compatible Programming Tool Version Number
Use the programming tool having the following version number to create programs for TC-ADP:
If a programming tool with the wrong version number is used, programming will not be possible.
*1. For Ver. 8.13P to 8.24A of GX Developer, select FX3UC for the PLC type.
Compatible PLC Version number Date of production
FX
3U Series PLC Ver. 2.20 or later After May 2005 (initial production)
FX
3UC Series PLC Ver. 1.30 or later After August 2004
FX
3G Series PLC Ver. 1.00 or later After June 2008 (initial production)
Software Version number Remarks
GX Developer
•SW
îš…D5C-GPPW-J
•SW
îš…D5C-GPPW-E
Ver. SW8 P or later
(Ver. 8.13P)
When selecting a model, select FX3U(C)
*1
.
(Ver. 8.72A or later) When selecting a model, select FX3G.
D8001
PLC type and
version number
2 4 1 0 0
Version data (Example: Ver. 1.00)
PLC type Example: 24 = FX
3U and FX3UC series
26 = FX
3G
series
()
Right side
5 7 0 0 0
Control number
Year (Example: 5 = 2005), last digit of dominical year
1
Month (Example: 7 = July), 1 to 9 = January to September,
X = October, Y = November, Z = December
Example:
FX
3U
-48MR/ES(production number : 570001)
MITSUBISHI
MODEL
100-240VAC 50/60Hz 40W
SERIAL
FX
3U
-48MR/ES
PROGRAMMABLE
CONTROLLER
570001
OUT:30VDC/240VAC 2A(COS
φ
=1)
80M1 IND. CONT. EQ.
MITSUBISHI ELECTRIC CORPORATION
MADE IN JAPAN
To Next Page
