Mitsubishi FX3U User Manual

Standards
10
FX3U-16CCL-M User's Manual
Type: Programmable Controller (Open Type Equipment)
Models: MELSEC FX
3U series manufactured
from August 1st, 2011 FX
3U-16CCL-M

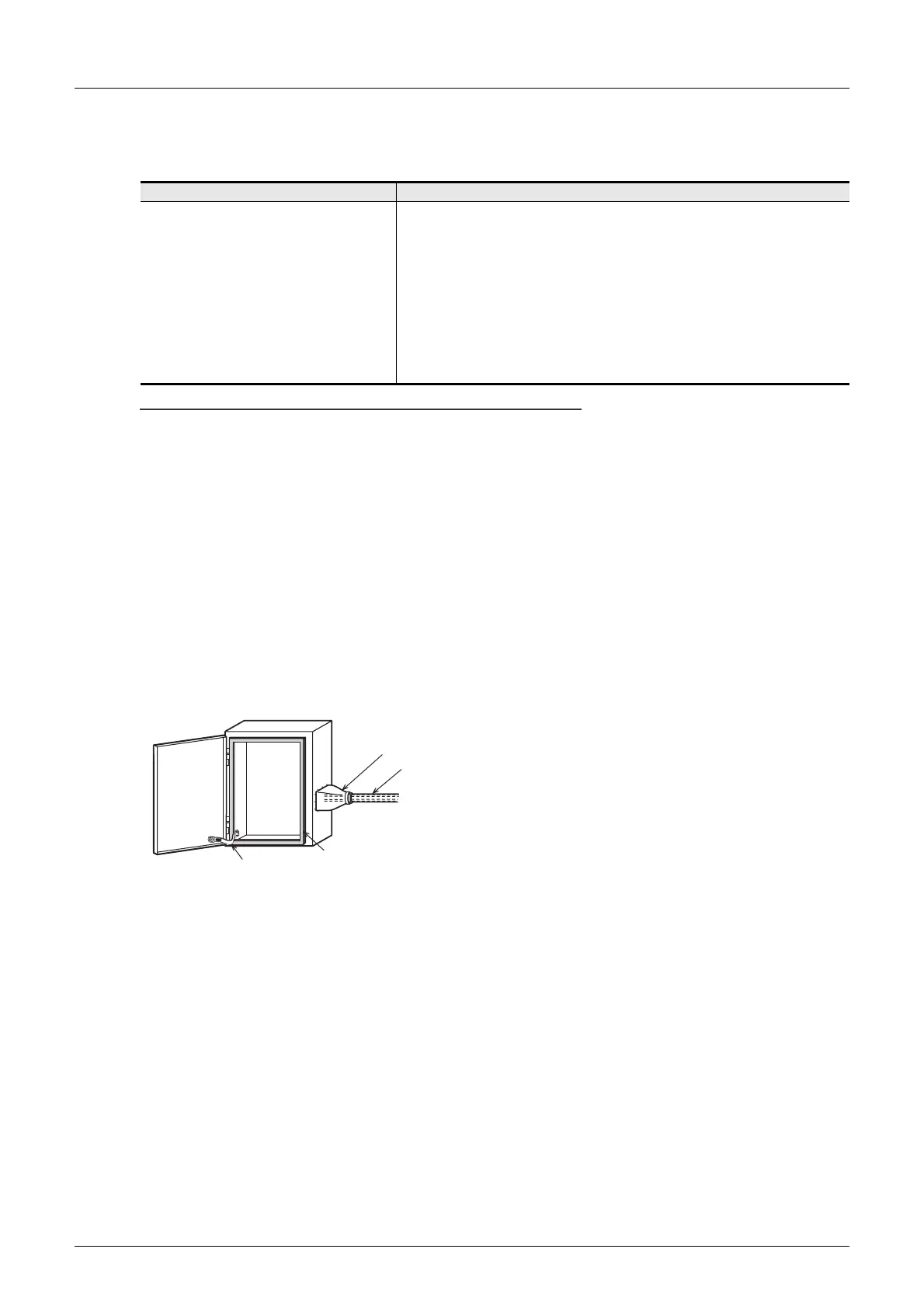

Caution to conform with EC Directives
• Installation in Enclosure
Programmable logic controllers are open-type devices that must be installed and used within conductive
control cabinets. Please use the programmable logic controller while installed within a conductive shielded
control cabinet. Please secure the cabinet door to the control cabinet (for conduction).
Installation within a control cabinet greatly affects the safety of the system and aids in shielding noise from
the programmable logic controller.
• Control cabinet
- The control cabinet must be conductive.
- Ground the control cabinet with the thickest possible grounding cable.
- To ensure that there is electric contact between the control cabinet and its door, connect the cabinet and
its doors with thick wires.
- In order to suppress the leakage of radio waves, the control cabinet structure must have minimal
openings. Also, wrap the cable holes with a shielding cover or other shielding devices.
- The gap between the control cabinet and its door must be as small as possible by attaching EMI gaskets
between them.
*1. These wires are used to improve the conductivity between the door and control cabinet.
Standard Remark
EN61131-2:2007
Programmable controllers
- Equipment requirements and tests
Compliance with all relevant aspects of the standard.
EMI
• Radiated Emission
• Conducted Emission
EMS
• Radiated electromagnetic field
• Fast transient burst
• Electrostatic discharge
• High-energy surge
• Voltage drops and interruptions
• Conducted RF
• Power frequency magnetic field
Shielding cover
Shielded cable
Wires*1
EMI gasket

Mitsubishi FX3U Specifications

General

Series	FX3U
Program Capacity	64k steps
Type	PLC
Power Supply	AC: 100-240V, DC: 24V
I/O Points	Up to 384 points
Communication	RS-232C, USB, Ethernet
Expansion	Supports multiple expansion modules including I/O, analog, and communication modules
Programming Language	Ladder Logic, SFC, Function Block Diagram
High-speed Processing	0.065 μs per basic instruction
Analog I/O	Available with expansion modules
Positioning Control	Up to 3 axes of positioning control
Weight	0.3 kg (Main unit)
