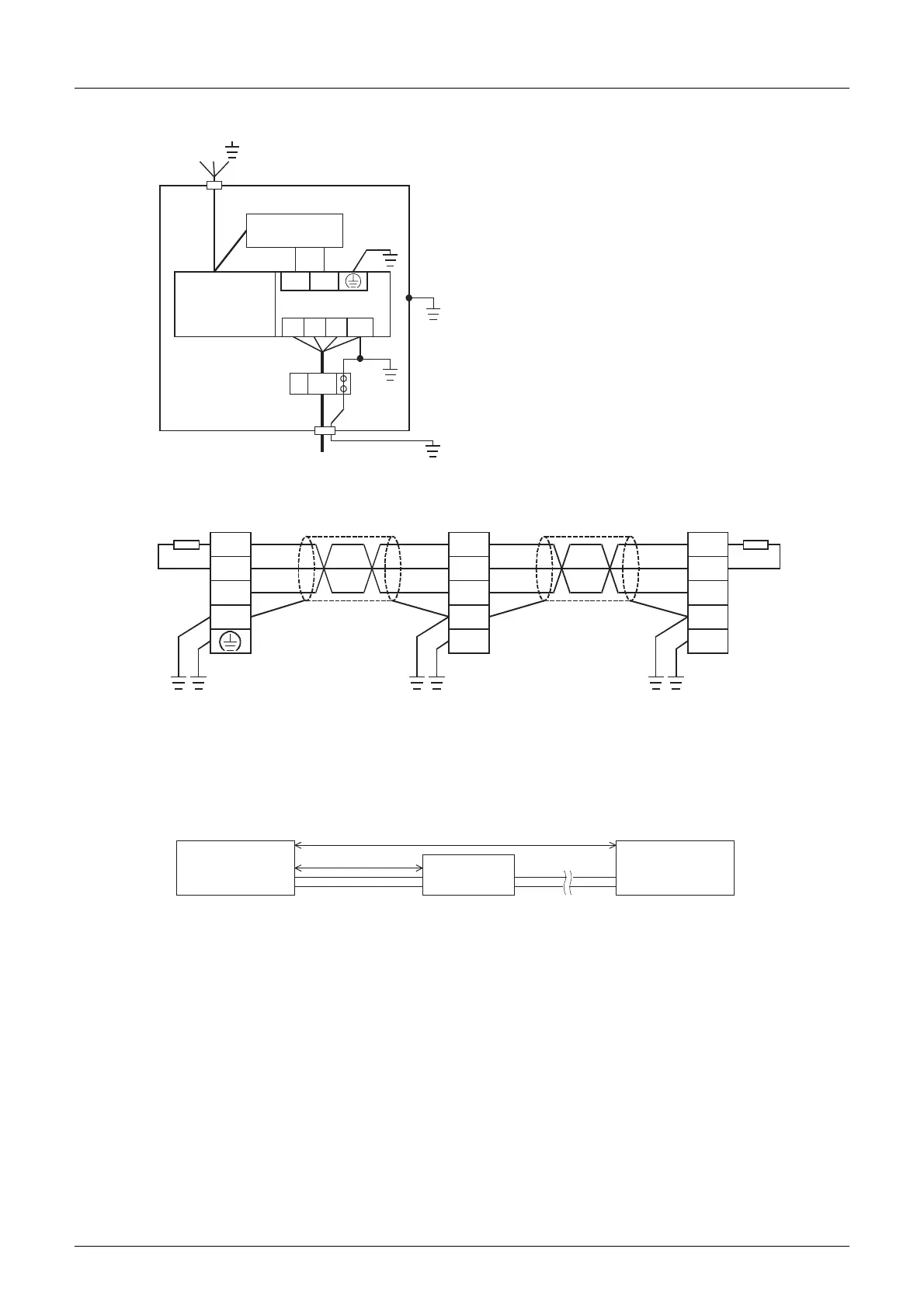

FX3U-16CCL-M User's Manual
• Configuration example inside control cabinet
• Wiring simplified diagram
• Notes for compliance with EN61131-2:2007
General notes on the use of the power supply cable.
- The FX
3U-16CCL-M unit requires that the cable used for power supply is 30 m or less.
- When the cable used for power supply exceeds 30 m, a noise filter (Ex. TDK-Lambda MBS1205-22 or
similar) should be placed on the 24 V DC power cabling as close (within 500 mm) to the FX
3U-16CCL-M
termination points as possible, refer to following figure.
Main unit
24 V DC
power supply
Power
cable
Ground
cable
Ground
cable
Cable clamp
(AD75CK,
MITSUBISHI)
Conductive control cabinet
CC-Link dedicated cable
24+ 24-
DA DB SLDDG
LN
FX3U-16CCL-M
(Blue)
(White)
(Yellow)
(Blue)
(White)
(Yellow)
(Blue)
(White)
(Yellow)
(Blue)
(White)
(Yellow)
DA
DB
DG
SLD
FG
DA
DB
DG
SLD
DA
DB
DG
SLD
FG
FX3U-16CCL-M
CC-Link
Dedicated
Cable
CC-Link
Dedicated
Cable
Other
station
Other
station
Termi-
nating
resistor
Termi-
nating
resistor
Exceeding 30 m
FX
3U -16CCL-M
24 V DC
24 V DC power
supply
500 mm or less
Noise
Filter
