184
-
Service
'10
•
HM-T-149

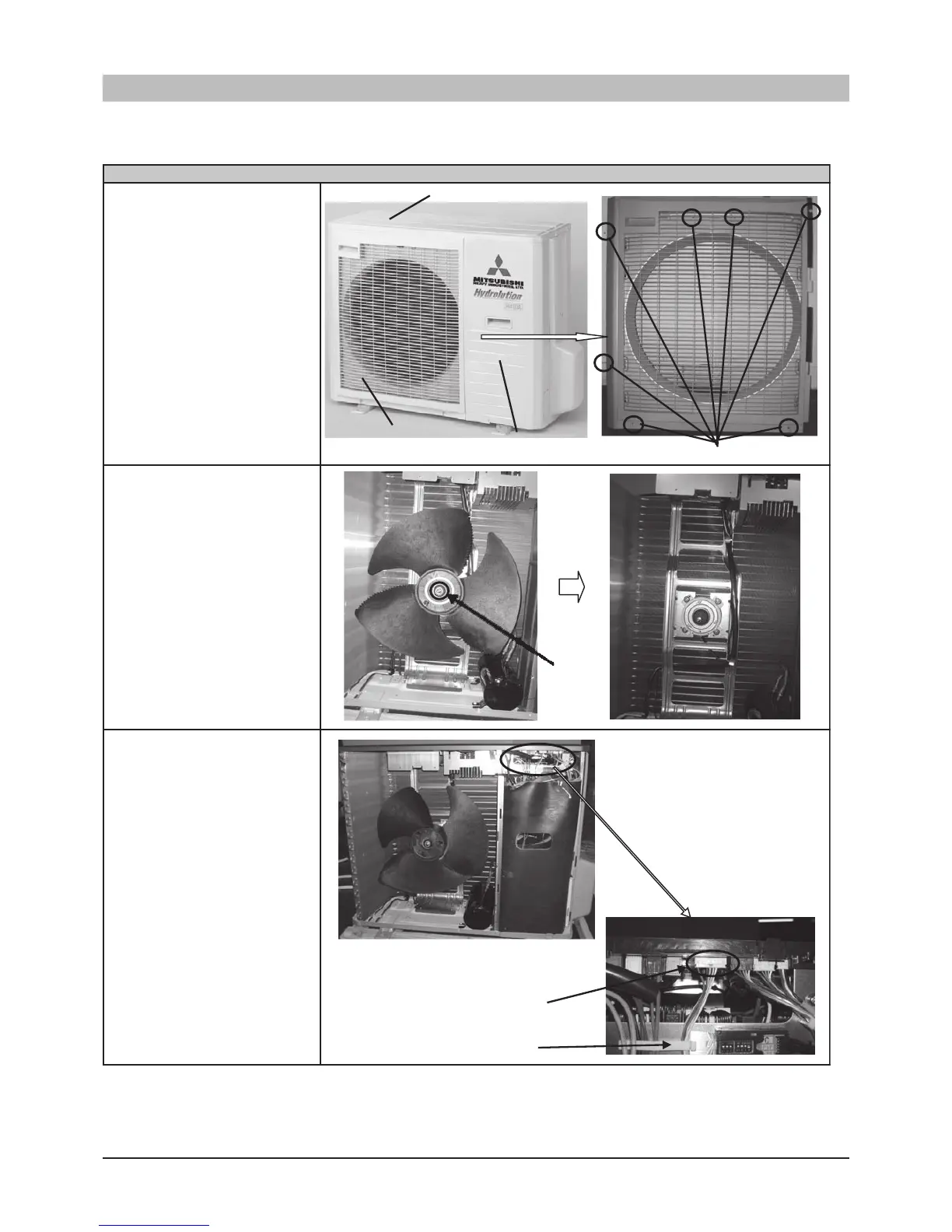

Fan and fan motor (FMo1)
1.
Loosen the screws and
remove the top panel and
service panel first.
2.
Loosen 5 screws and
remove the front panel
including fan grille.
3.
Loosen the nut and remove
the fan propeller
4.
Disconnect the connector
of CNF
AN
5.
Detach the clamp
CNF
AN
Clamp
Nut
7 screws
T
op panel (5 screws)
Service panel
(5 screws)
Front panel
FDCW71VNX
Component replacement
184
