Mitsubishi HMA100V Technical Manual

Service
-
189
-
'10 • HM-T-149
FDCW71VNX

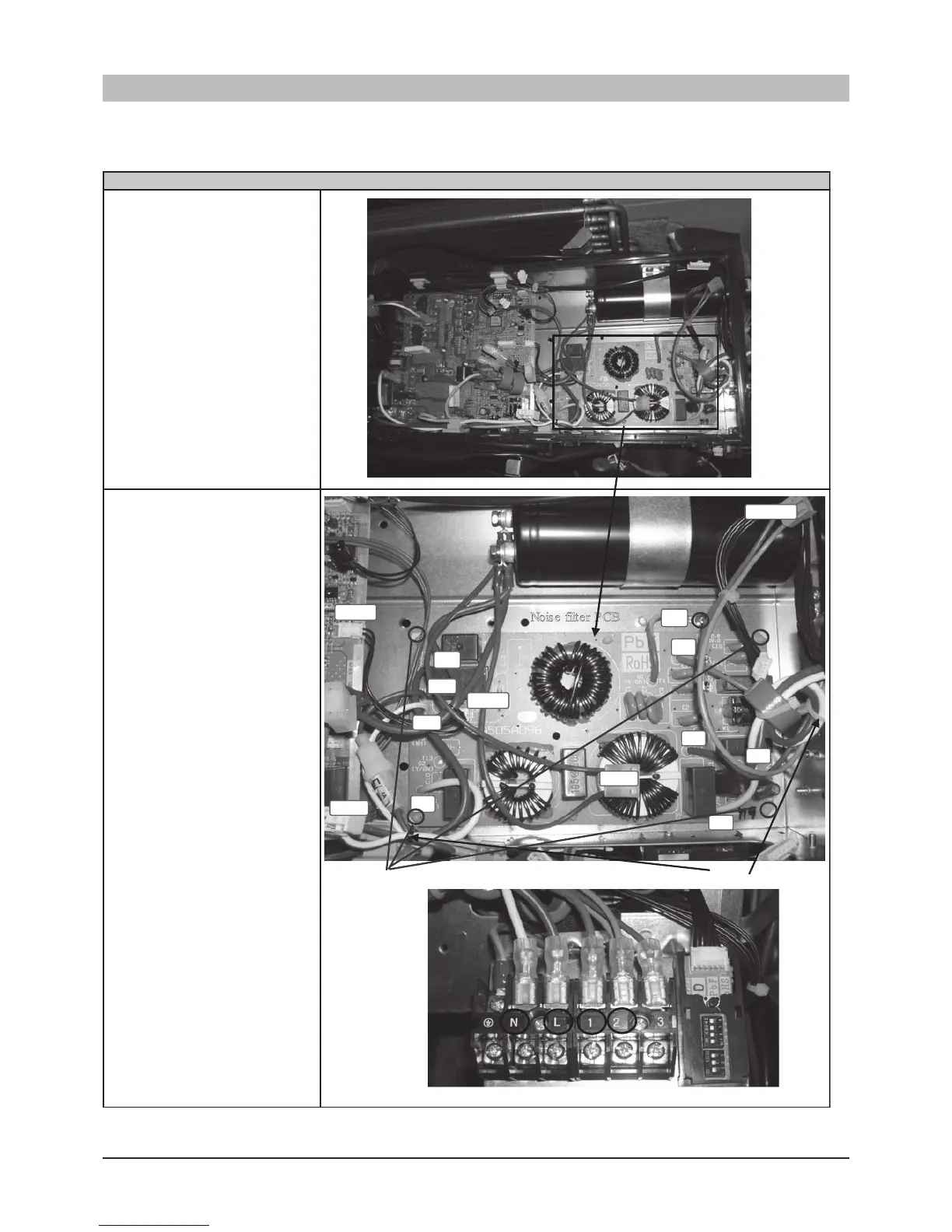

1.
Remove control PCB first
power OFF.
3.
Cut straps
noise filter PCB
grounding cable (T4)
2 for T9
noise filter PCB.
Noise filter PCB (PWB3)
Note: Be sure to do this
work aftter elapsing
3 minutes from
4. Disconect the connectors
CNA2 and CNO2 on the
5.
Unscrew and remove the
6.
Disconnect the connectors
and terminals as follows
1) On the inverter PCB
T21 for T5
T22 for T6
2) On the control PCB
CNW for T10 and T11
3) On the terminal block
L1 for T1
N for T2
1 for T8
7.
Pinch the head of locking
support and remove the
4 locking
supports
Noise filter PCB
CNA2
CNO2
T6
T5
T4
T8
T1
T2
Straps
T9
T10
T11
CNW
CNW2
CNO1
Noise filter PCB
Component replacement
