Components
'10 • HM-T-149

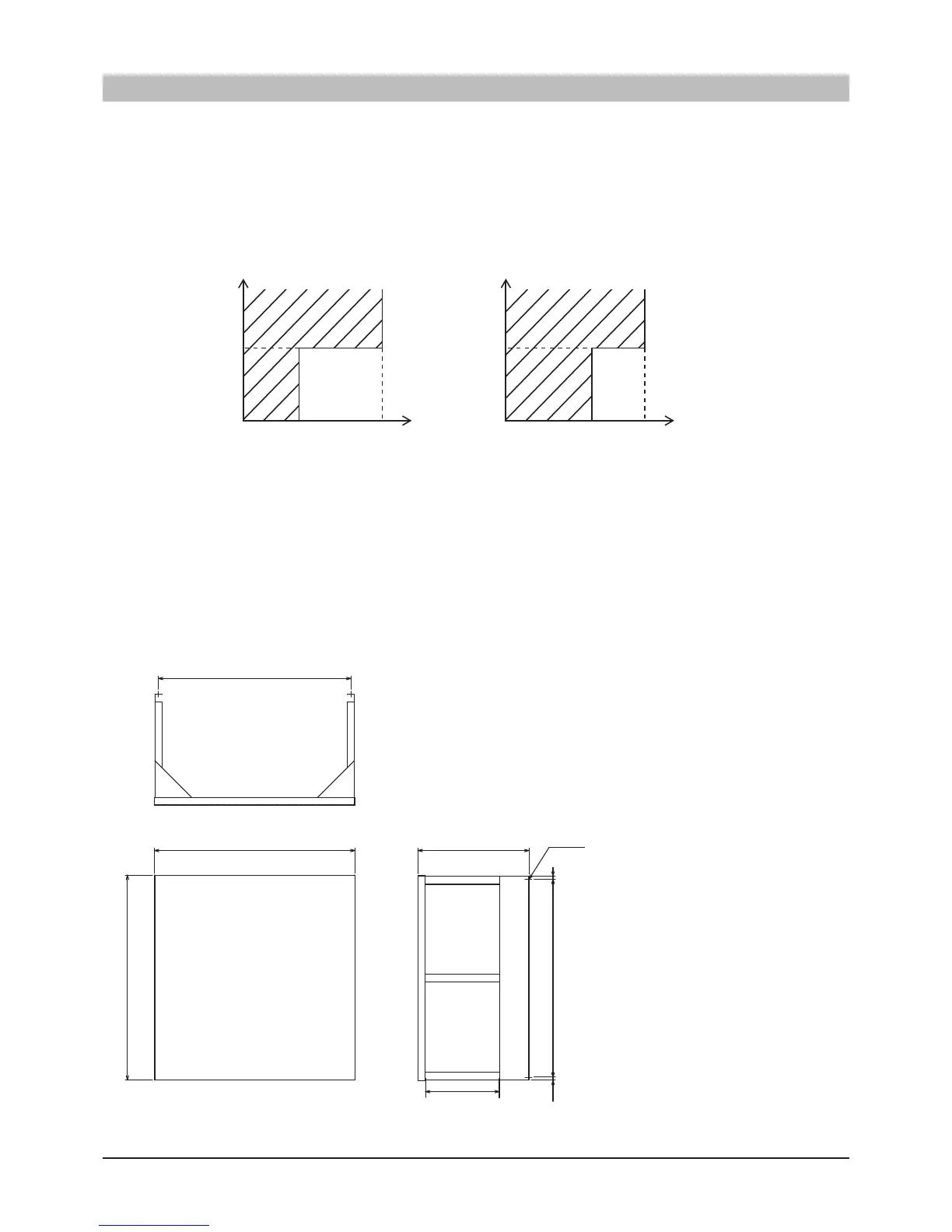

Wind protection
(prepared on site)
At the site where the following conditions meet, wind protection for outdoor unit is required to avoid capactity drop or abnormal
stop for protection.
● Natural wind directly blows into outdoor unit.
● Relation between wind speed and outdoor air temperature is in the hatched area at the coldest day.
According the wind direction, install appropriate wind guard.
Front wind guard for wind from front.
Side wind guard for wind from left side.
Rear wind guard for wind from rear.
Fasten the components with screws used in the outdoor unit where applicable.
<
For FDCW71VNX>
Front wind guard
560
(screw position)
456
(screw position)
582
554
300
200
Use M4×10 self-drilling screw to attach it
where screw hole is not available.
47.5
47.5
4−φ6
Accessories
FDCW71VNX FDCW100, 140VNX
−15 0
5
Wind speed (m/s)
Outdoor air temperature (℃)
−10 0
5
Wind speed (m/s)
Outdoor air temperature (℃)
