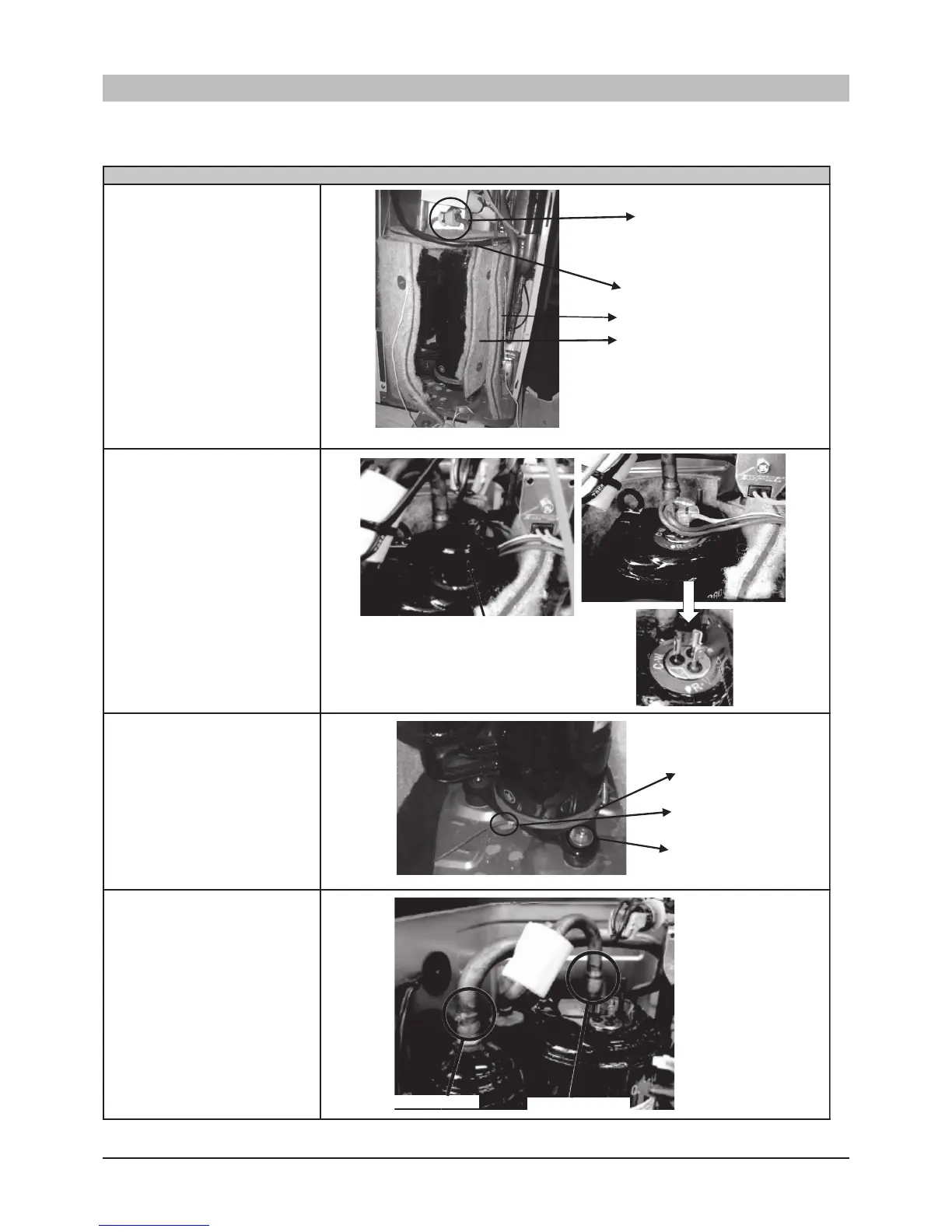

Compressor (CM)
2. Untie the strings and remove
the top and side insulations
3 Cut off the strap and pull
out the sensor (Tho-D)
4. Remove the terminal cover
5.
Disconnect the fasten
connectors from compressor.
U: Red cable
V: White cable
W: Blue cable
6. Remove the crankcase
heater
7. Unscrew and disconnect
the grounding cable
8. Loosen 3 nuts of
compressor fixing bolts
9. Disconnect the pipes for
suction and discharge gas
10. Remove the compressor
Insulation (top section)
Inner insulations (side section)
Outer insulations (side section)
Tho-D
Crankcase heater
Screw for groundin cable
3 nuts of compressor
fixing bolts
Terminal cover
Suction gas pipe
Discharge gas pipe
To Next Page
