5. SEQUENCE INSTRUCTIONS
5 − 33
MELSEC-A

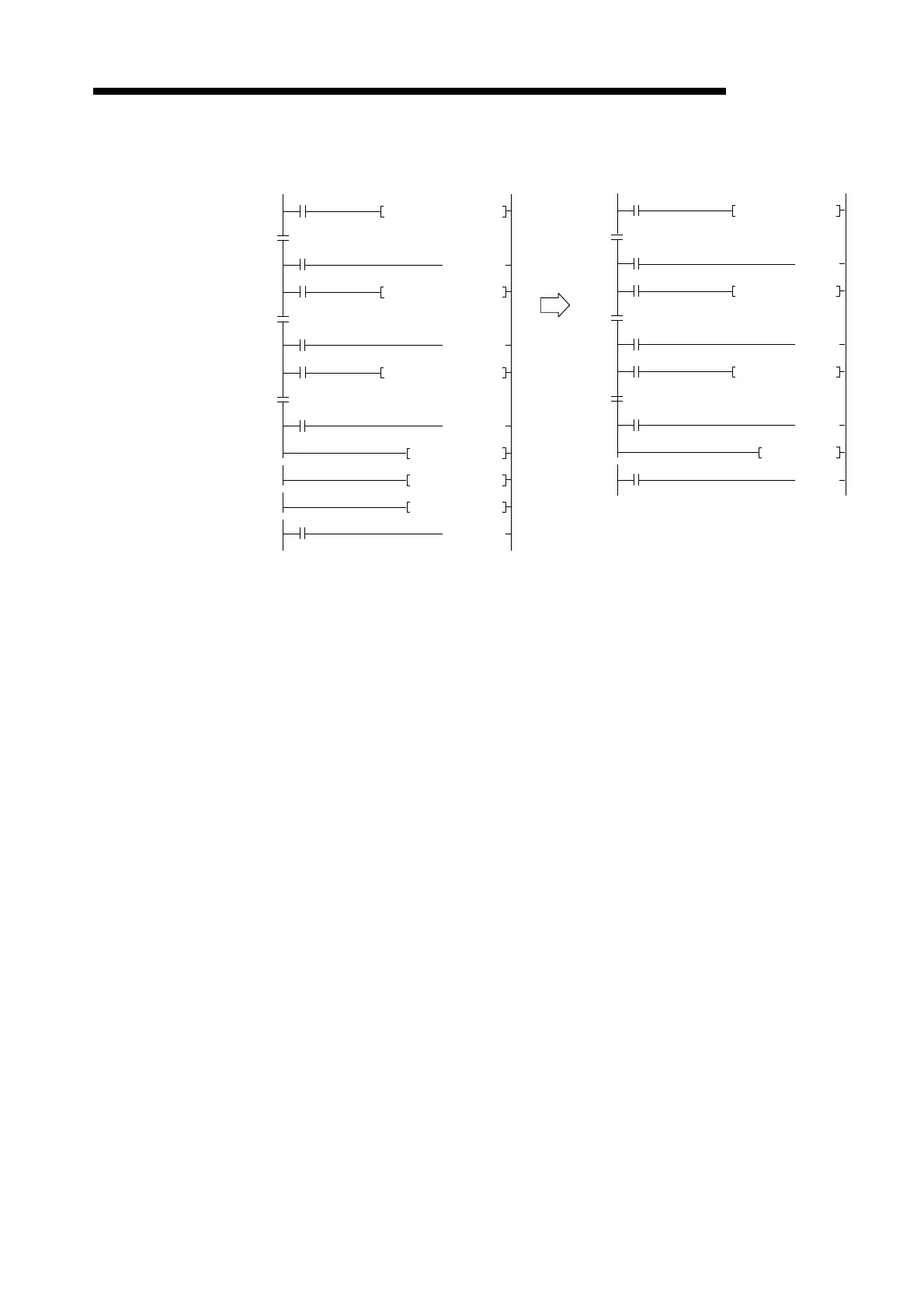

(2) If the MCR instructions gather at one place of nesting, use the lowest nesting
number (N) once to end all MCs.
(
)
()
(
)
()
(
)
()
()
(
)
X001
N0 M15
MC N0 M15
X002
N1 M16
MC N1 M16
X003
N2 M17
MC N2 M17
MCR N2
MCR N1
MCR N0
X001
N0 M15
MC N0 M15
X002
N1 M16
MC N1 M16
X003
N2 M17
MC N2 M17
MCR N0
