7. APPLICATION INSTRUCTIONS
7 − 16
MELSEC-A

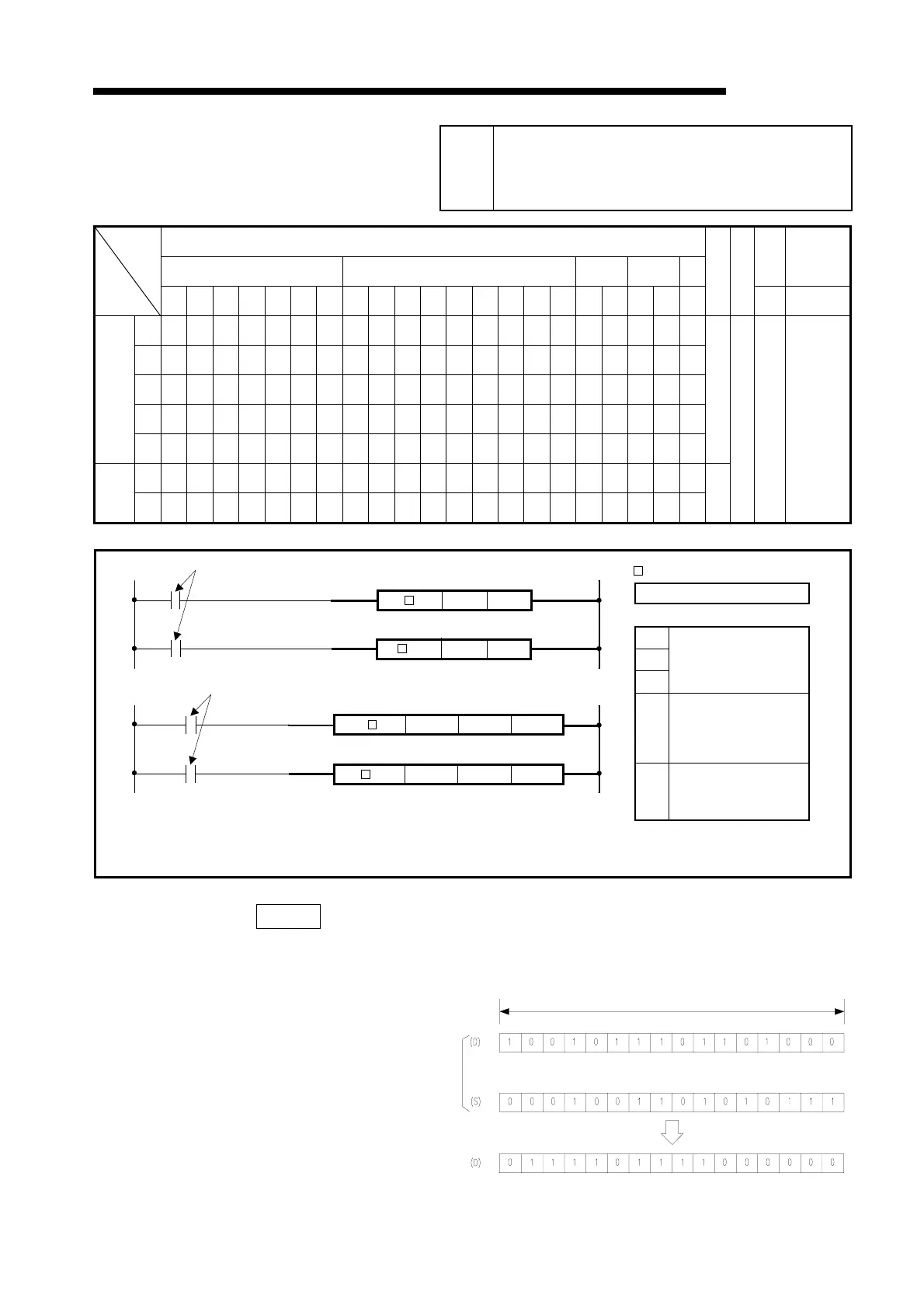

7.1.4 16, 32-bit data NOT exclusive logical
add (WXNR, WXNRP, DXNR, DXNRP)
Available Device
Bit device Word (16-bit) device Constant Pointer
Level
Carry
flag
Error
flag
X Y M L S B F T C D W R A0 A1 Z V K H P I N
Digit specification
Index
M9012 (M9010, M9011)
(S) O O O O O O O O O O O O O O O O O O
(D) O O O O O O O O O O O O O O O
(S1) O O O O O O O O O O O O O O O O O O
(S2) O O O O O O O O O O O O O O O O O O
WXNR
(D1) O O O O O O O O O O O O O O O
K1
to
K4
(S) O O O O O O O O O O O O O O O O
DXNR
(D) O O O O O O O O O O O O O
K1
to
K8
O O
Functions WXNR
(1) Performs the exclusive NOR of the 16-bit data of device specified at (D) and the
16-bit data of device specified at (S) and stores the result into the device
specified at (D).
Applicable
CPU
All CPUs
(S) (D)
(S) (D)
P
(S)
(S1)
(S2)
Data for which exclusive
NOR will be performed or
head number of device
which stores data
(D)
Data for performing
exclusive NOR or head
number of device where
the result of exclusive
NOR will be stored.
(D1)
Head number of device
which will store the result
of exclusive NOR
Setting data
WXNR, DXNR
Indicates the instruction symbol.
Operation commands
(S1) (D1)
(S1) (D1)
P
(S2)
(S2)
WXNR may only be used in the
areas marked *
Operation commands
*
*
16 bits
WXNR
Before execution
After execution
