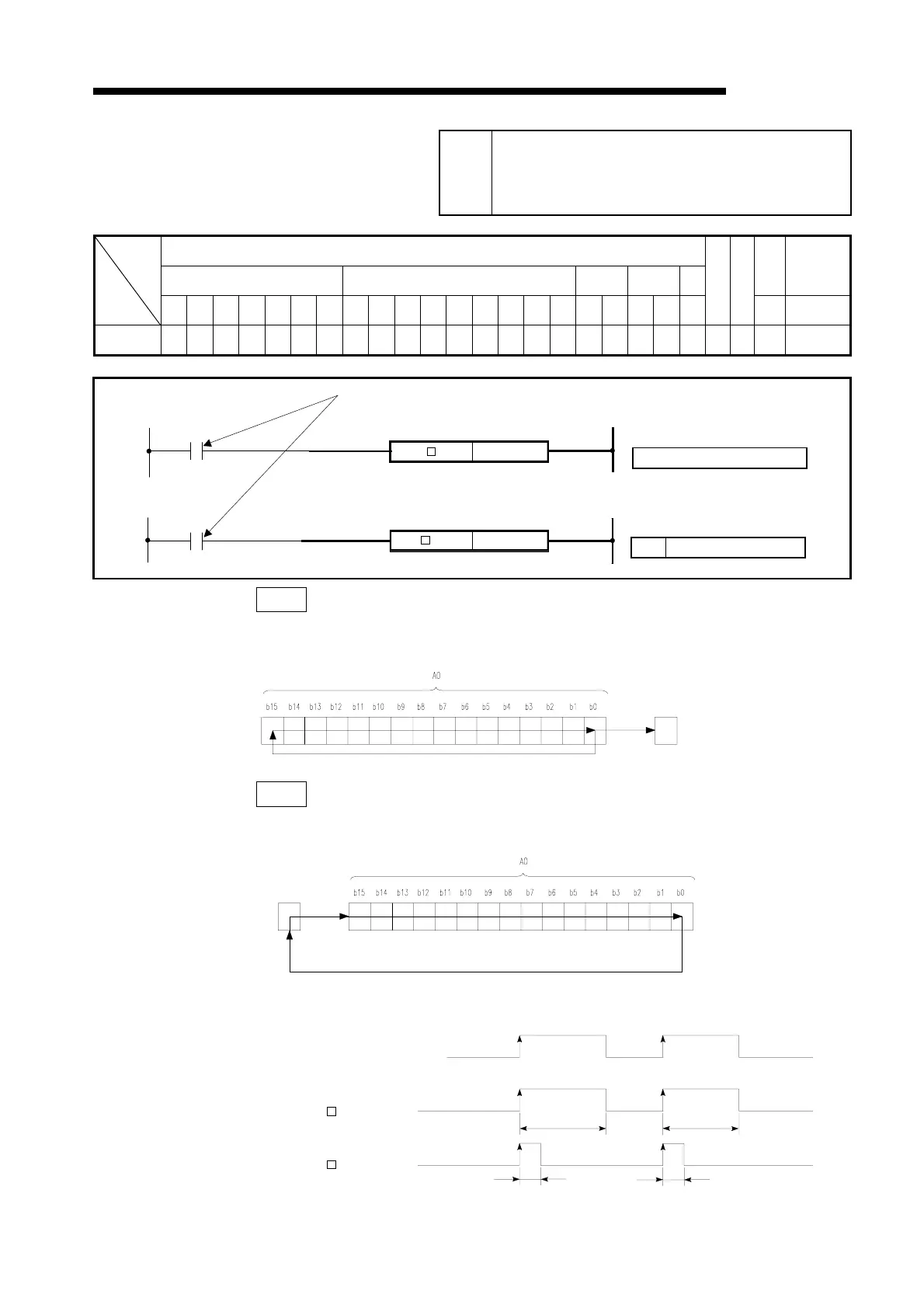

7. APPLICATION INSTRUCTIONS
7 − 23
MELSEC-A
7.2.1 16-bit data right rotation
(ROR, RORP, RCR, PCRP)
Available Device
Bit device Word (16-bit) device Constant Pointer
Level
Carry
flag
Error
flag
X Y M L S B F T C D W R A0 A1 Z V K H P I N
Digit specification
Index
M9012 (M9010, M9011)
n O O O O
Functions ROR
Rotates the data of A0 "n" bits to the right, without including the carry flag.
• The carry flag is 1 or 0 depending on the status prior to the execution of ROR.
RCR
Rotates the data of A0 "0" bits to the right, including the carry flag.
• The carry flag is 1 or 0 depending on the status prior to the execution of RCR.
Execution Conditions
Applicable
CPU
All CPUs
Carry flag
(M9012)
n bit rotation
Carry flag
(M9012)
n bit rotation
ON
OFF
Executed
per scan
Executed
per scan
Executed
only once
Executed
only once
Right rotation
command
P
Right rotation commands
n
n
ROR, RCR
❏ Indicates the instruction symbol.
n Number of times (0 to 15)
Setting data
P
