5. SEQUENCE INSTRUCTIONS
5 − 36
MELSEC-A

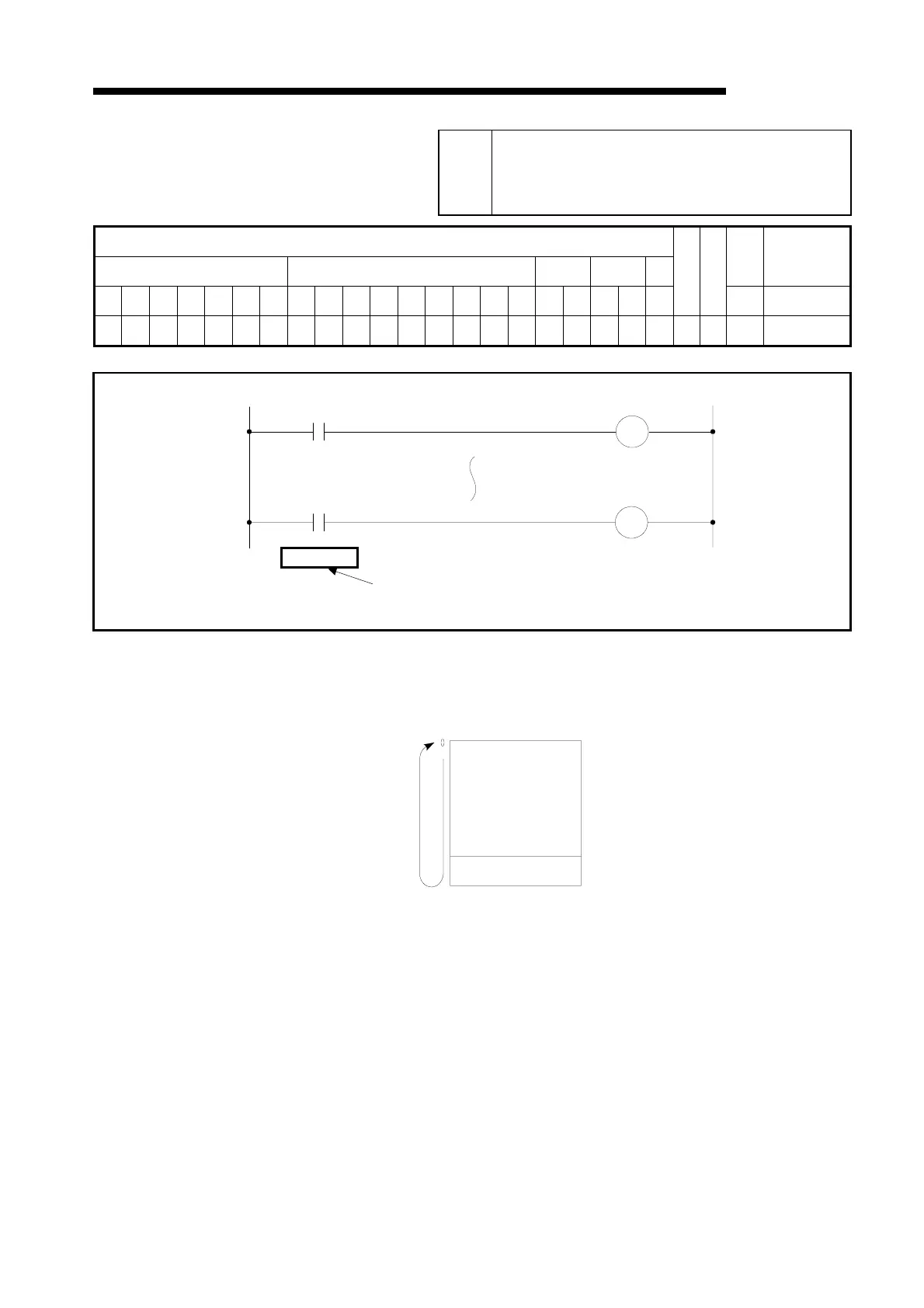

5.6.2 Sequence program termination (END)
Available Device
Bit device Word (16-bit) device Constant Pointer Leve l
Carry
flag
Error
flag
X Y M L S B F T C D W R A0 A1 Z V K H P I N
Digit specification
Index
M9012 (M9010, M9011)
Functions (1) This instruction indicates the end of program. At this step, the scan returns to
step 0.
(2) The END instruction cannot be used midway through the sequence program or
subsequence program. If END processing is necessary halfway through the
program, use the FEND instruction.
(3) When a program is written in the ladder mode of GPP, it is not necessary to
input the END instruction. It is input automatically by performing conversion.
Applicable
CPU
All CPUs
END
When the ladder is displayed,
END is omitted.
Sequence program
END
