5. SEQUENCE INSTRUCTIONS
5 − 39
MELSEC-A
Program Examples STOP

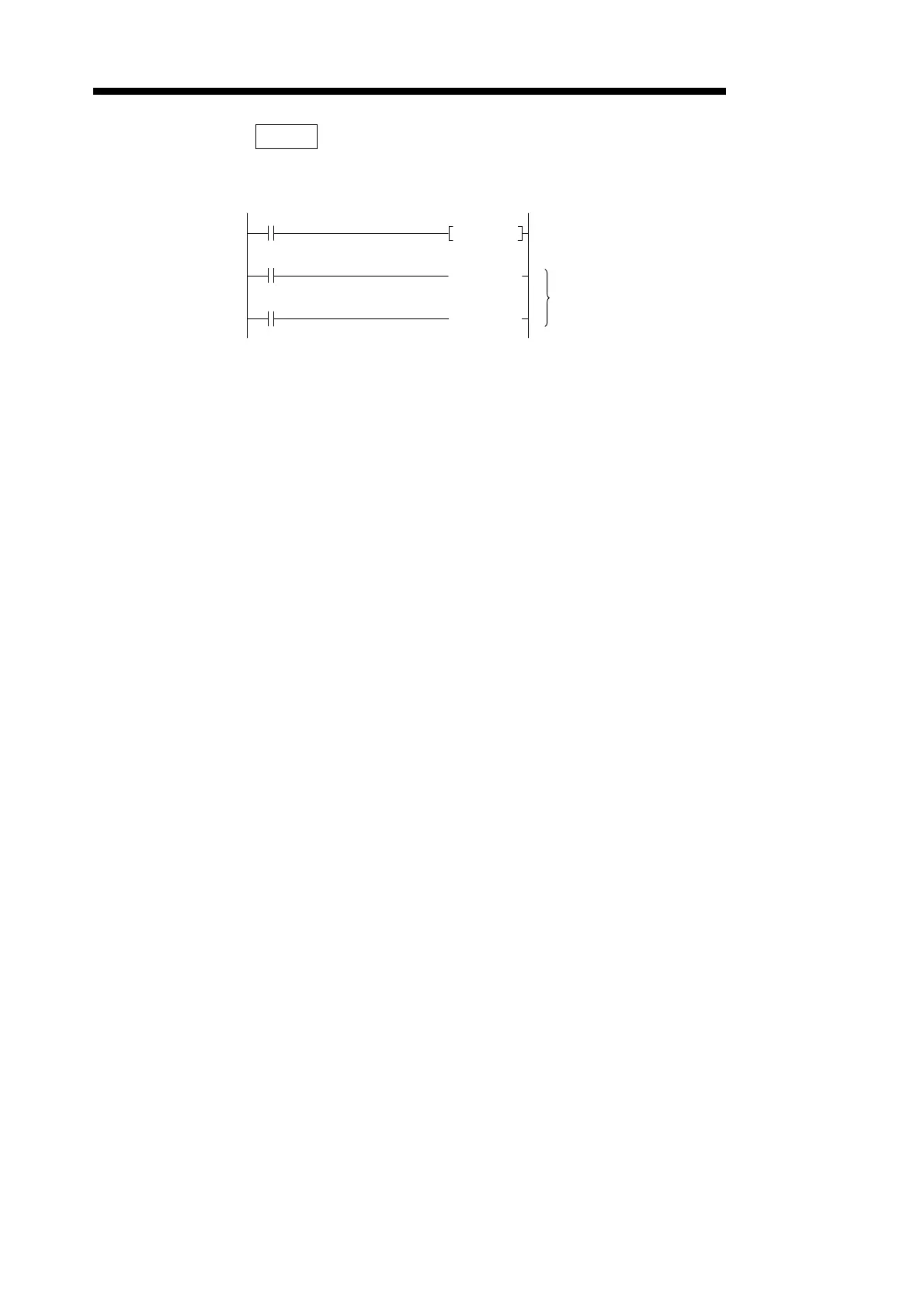

(1) Program which stops the PC when X8 turns on.
()
()
X008
X00A
X00B
STOP
Y013
Y023
0
2
4
When X8 turns on, PC is stopped.
Sequence program
• Coding
0 LD X008
1 STOP
2 LD X00A
3 OUT Y013
4 LD X00B
5 OUT Y023
6 END
