Mitsubishi MELSEC-A series Programming Manual

6. BASIC INSTRUCTIONS
6 − 7
MELSEC-A
Program Examples D=

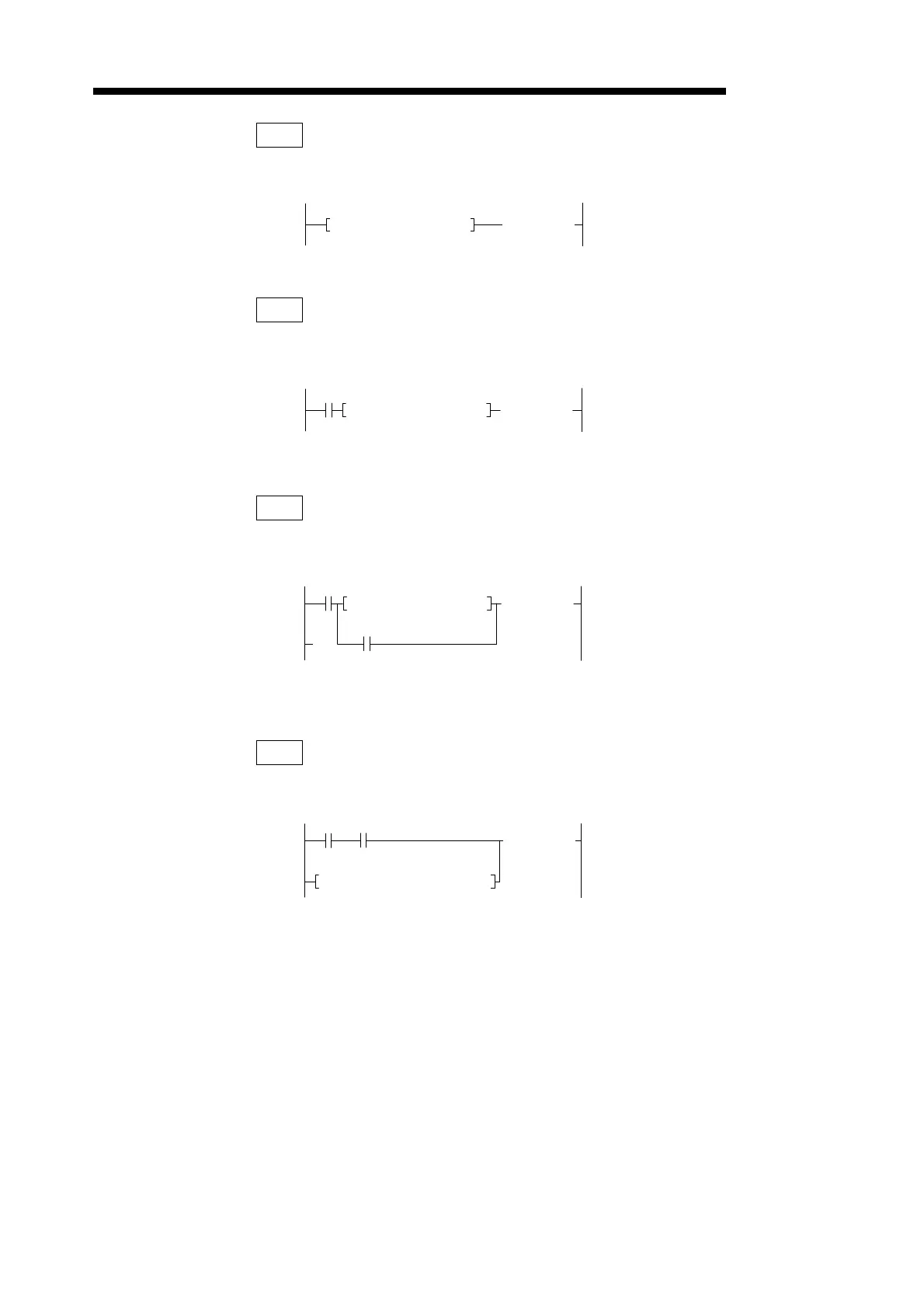

(1) Program which compares the data of X0 to 1F and the data of D3 and D4.
D<>
(2) Program which compares the BCD value 18000 and the data of D3 and D4.
D>
(3) Program which compares the BIN value -80000 and the data of D3 and D4.
D<=
(4) Program which compares the data of D1 and D0 that of D3 and D4.
()
0
K8
D= X000 D3
Y033
• Coding
0 LDD= K8X000 D3
11 OUT Y033
12 END
()
0
H
D<> 00018000 D3
Y033
• Coding
0 LD M3
1 ANDD<> H00018000 D3
12 OUT Y033
13 END
M3
()
0
K-
D> 80000 D3
Y033
• Coding
0 LD M3
1 LDD> K-80000 D3
12 OR M8
13 ANB
14 OUT Y033
15 END
M3
M8
()
0
D<= D0 D3
Y033
• Coding
0 LD M3
1 AND M8
2 ORD<= D0 D3
13 OUT Y033
14 END
M3 M8
