6. BASIC INSTRUCTIONS
6 − 12
MELSEC-A

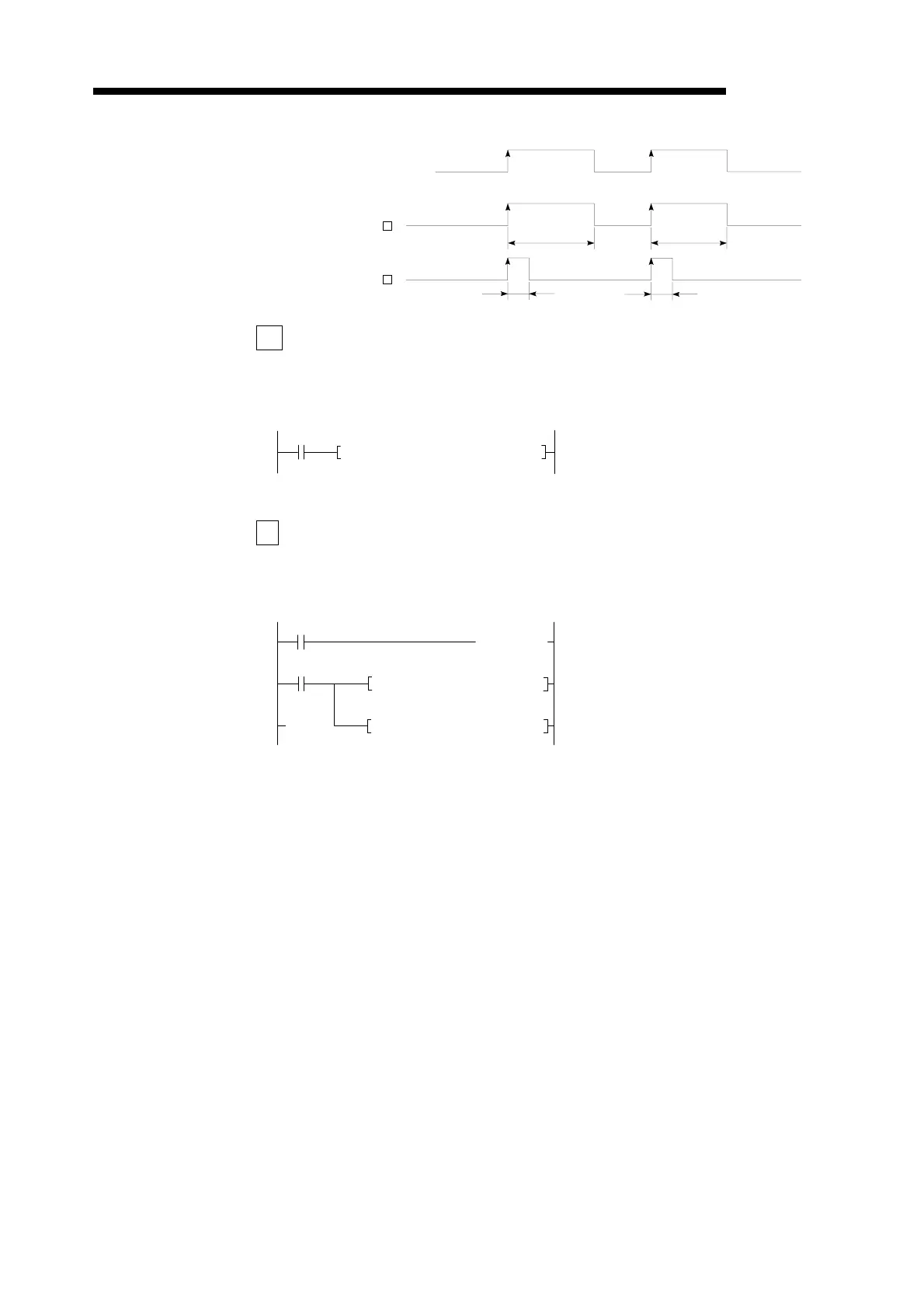

Execution Conditions
Program Examples +
Program which adds the content of A0 to the content of D3 and outputs the result to
Y38 to 3F when X5 turns on.
-
Program which outputs the difference between the set value and present value timer
T3 to Y40 to 53 in BCD.
• Coding
0 LD X005
1 +P D3 A0 K2Y038
8 END
0
X005 P K2
+ D3 A0 Y038
• Coding
0 LD X003
1 OUT T3 K18000
2 LD M9036
3 -P K18000 T3 D3
10 DBCD D3 K5Y040
19 END
()
0
2
X003
M9036
K18000
T3
P K
- 18000 T3 D3
K5
DBCD D3 Y040
Addition/subtraction
command
Executed
per scan
Executed
per scan
Executed
only once
Executed
only once
P
OFF
ON
