6. BASIC INSTRUCTIONS

6 − 18

MELSEC-A

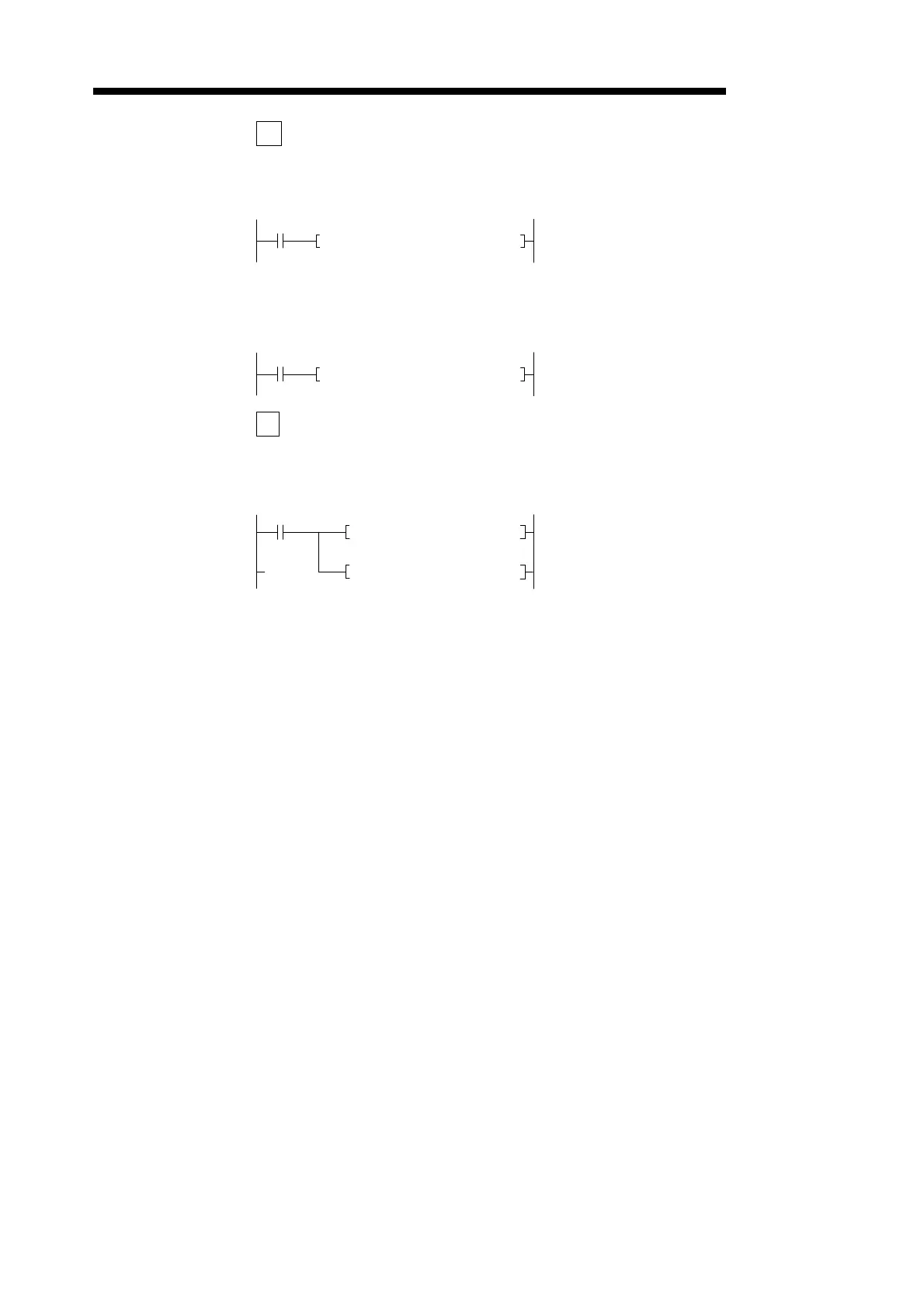

Program Examples *

(1) Program which stores the multiplication result of 5678 and 1234 in BIN to D3

and 4 when X5 turns on.

(2) Program which outputs the multiplication result of the BIN data of X8 to F and

the BIN data of X10 to 1B to Y30 to 3F.

Program which outputs the quotient, obtained by dividing the data of X8 to F by

3.14, to Y30 to 3F when X3 turns on.

• Coding

0 LD X005

1 *P K5678 K1234 D3

8 END

X005

P K K

* 5678 1234 D3

• Coding

0 LD M9038

1 * K2X008 K3X010 K4Y030

8 END

M9038

K2 K3 K4

* X008 X010 Y030

• Coding

0 LD X003

1 *P K2X008 K100 D0

8 /P D0 K314 K4Y030

15 END

X003

P K2 K

* X008 100 D0

P K K4

D0 314 Y030

Mitsubishi MELSEC-A series Programming Manual
