Mitsubishi MELSEC-A series Programming Manual

6. BASIC INSTRUCTIONS
6 − 41
MELSEC-A

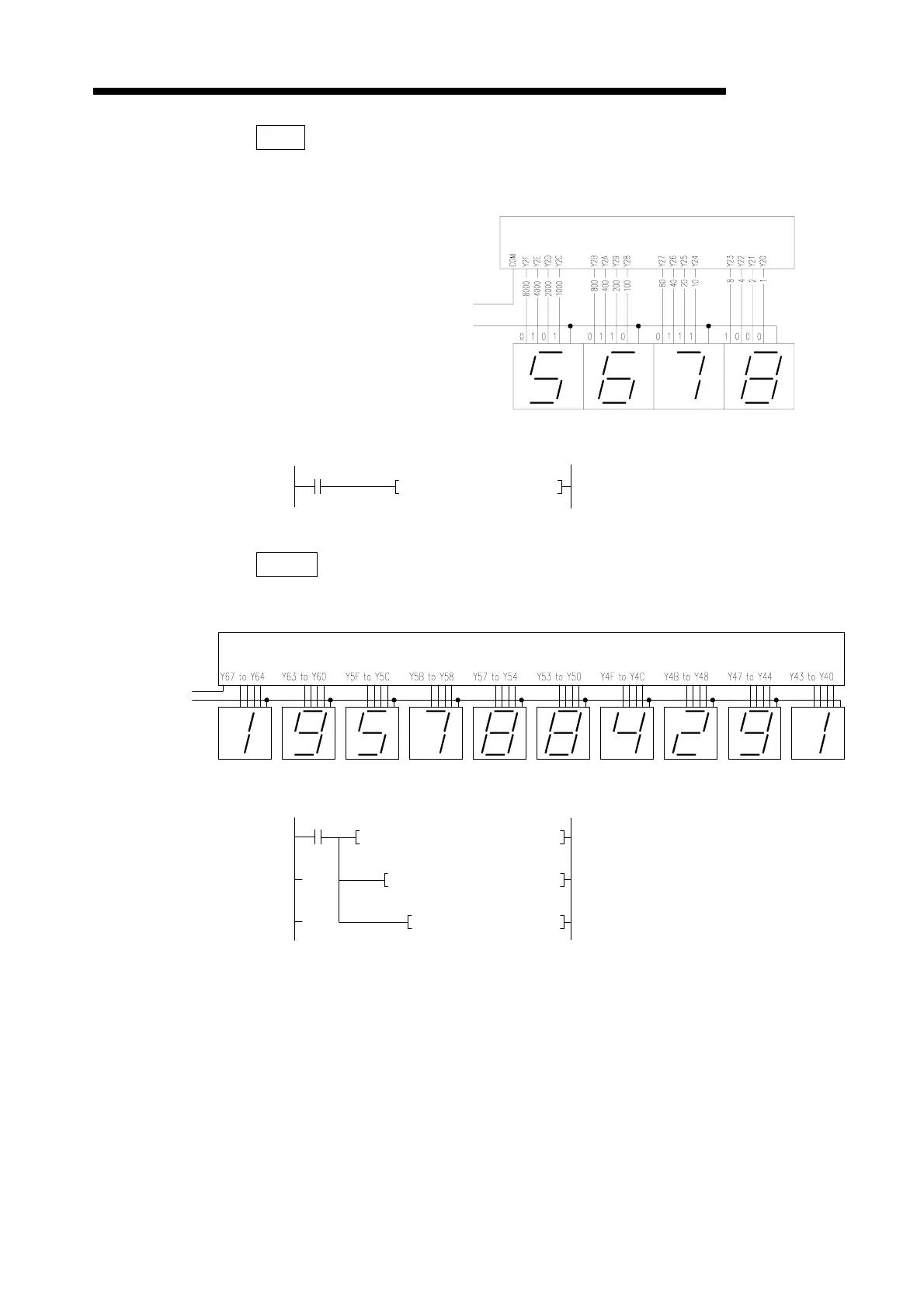

Program Examples BCD
Program which outputs the present value of C4 from the Y20 to 2F to the BCD
indicator.
DBCD
Program which outputs the 32-bit data of D0 and D1 to Y40 to Y67.
PC output unit
Output power source
7-element indicator
• Coding
0 LD M9036
1 BCDP C4 K4Y020
6 END
0
P K4
BCD C4 Y202
M9036
PC output unit
7-element indicator
Input power
source
• Coding
0 LD M9036
1 D/ D0 K10000 D2
12 DBCD D2 K8Y050
21 BCD D4 K4Y040
26 END
0
K
D/ D0 10000 D2
M9036
K8
DBCD D2 Y050
K4
BCD D4 Y040
