6. BASIC INSTRUCTIONS
6 − 61
MELSEC-A

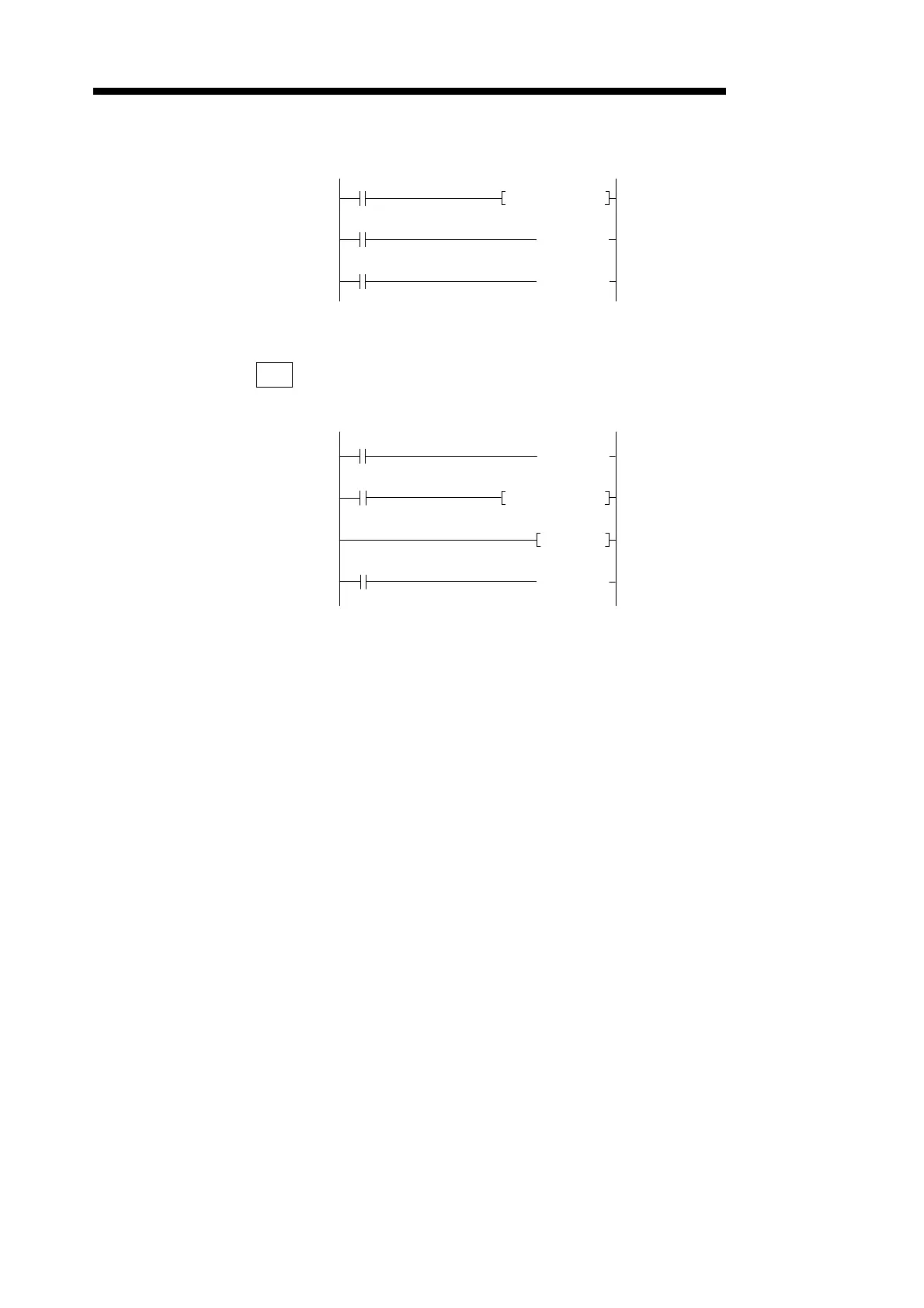

(2) Program which causes a jump during the next scan to P3 when XC turns on.
CJ
(1) Program which causes a jump to the END instruction when X9 turns on.
(
)
()
0
4
6
P3
X00C
X030
X041
SCJ P3
Y06F
Y07E
• Coding
0 LD X00C
1 SCJ P3
4 LD X030
5 OUT Y06F
6 P3
7 LD X041
8 OUT Y07E
9 END
()
()
0
2
X009
6
7
CJ P255
X000
X011
Y030
FEND
Y041
• Coding
0 LD X000
1 OUT Y030
2 LD X009
3 CJ P255
6 FEND
7 LD X011
8 OUT Y041
9 END
