7. APPLICATION INSTRUCTIONS
7 − 34
MELSEC-A
SFL

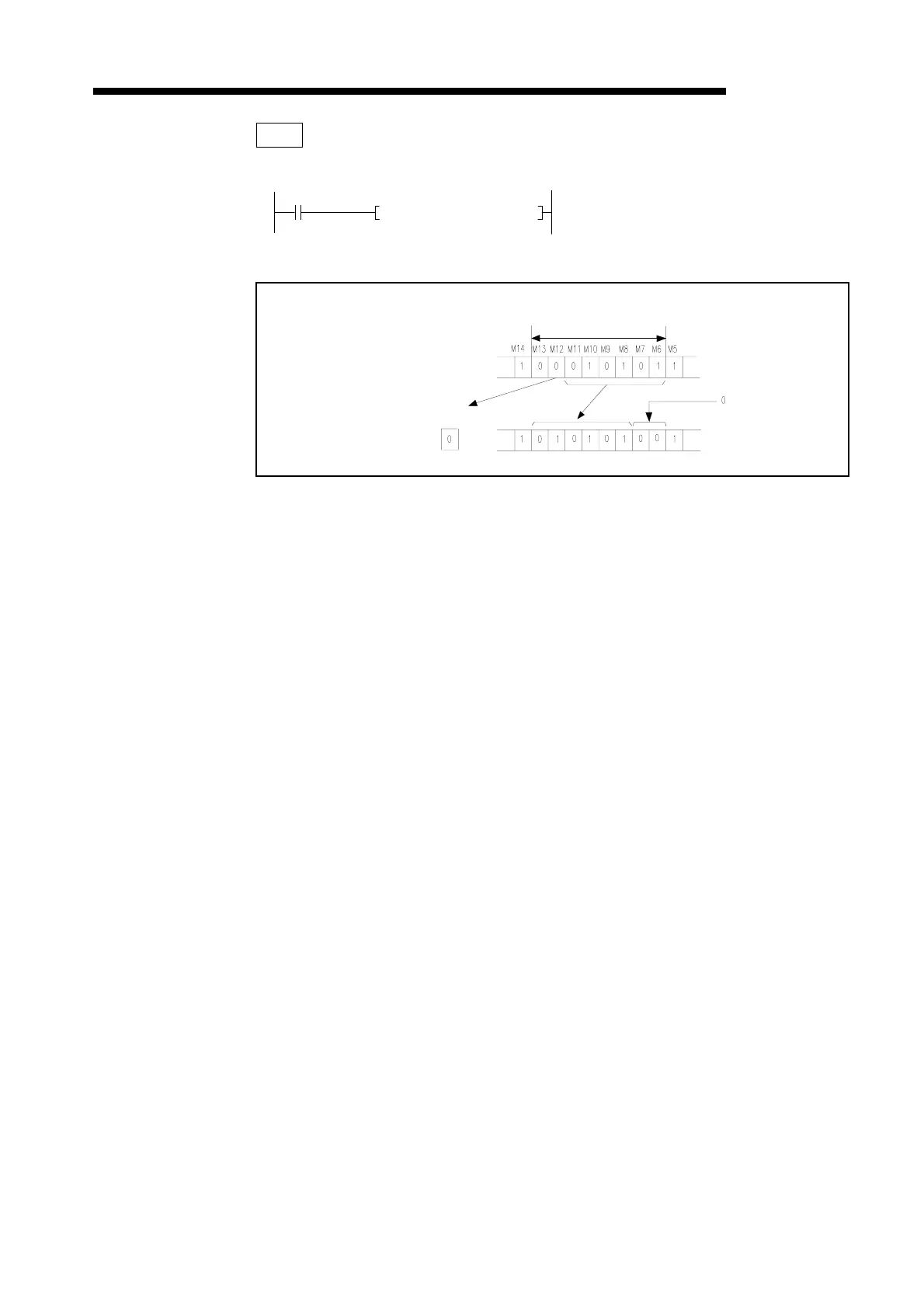

Program which shifts the data of M6 to 13 two bits to the left when X8 turns on.
• Coding
0 LD X008
1 SFLP K2M6 K2
6 END
0
X008
P K2 K
SFL M6 2
Before execution
After execution
Carry flag
(M9012)
Specification range of SFLP
