7. APPLICATION INSTRUCTIONS
7 − 39
MELSEC-A
DSFL

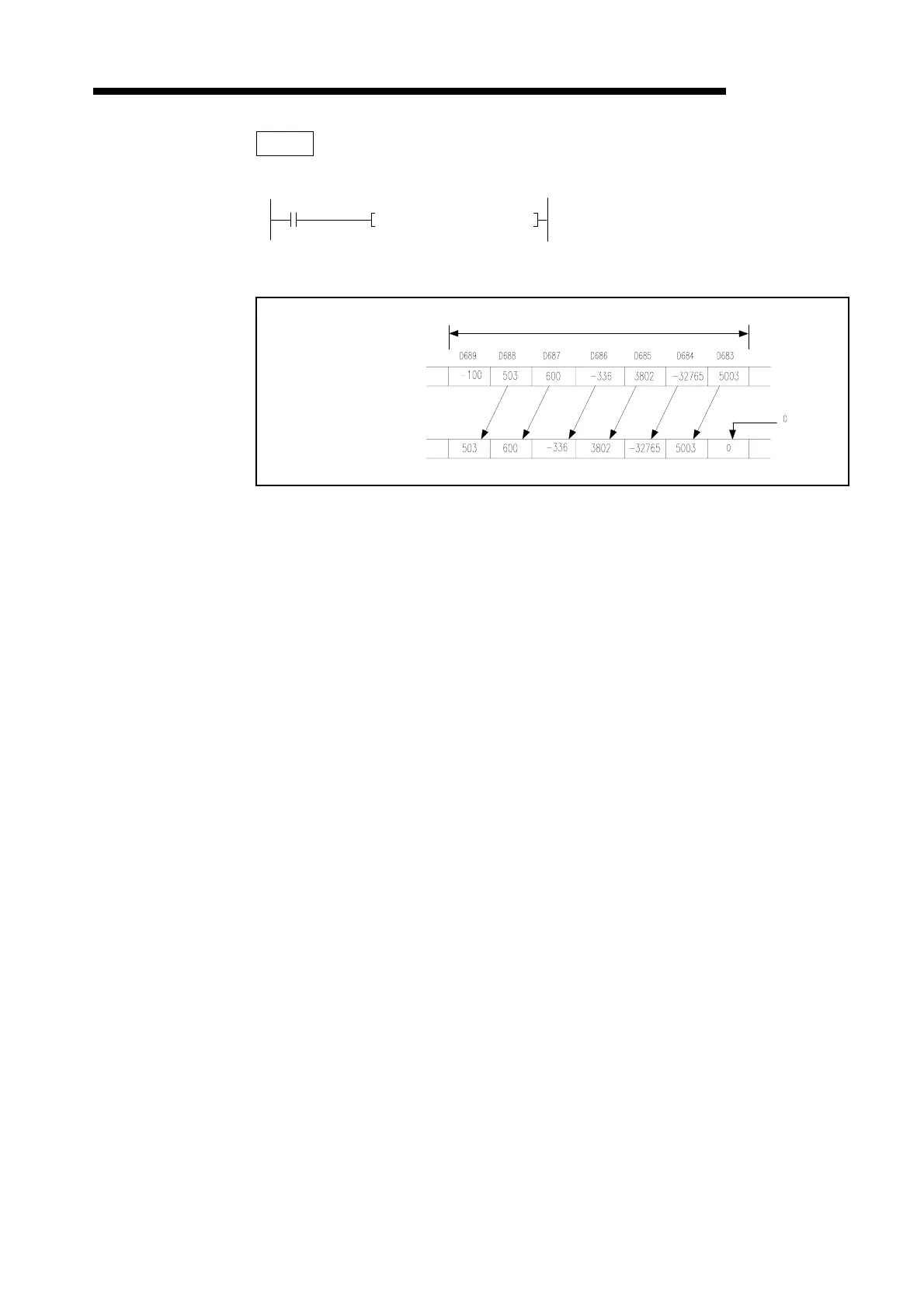

Program which shifts the contents of D683 to 689 to the left when XB turns on.
0
X00B
• Coding
0 LD X00B
1 DSFLP D683 K7
8 END
P K
DSFL D683 7
Before execution
After execution
Specification range of DSFRP instruction
