7. APPLICATION INSTRUCTIONS
7 − 56
MELSEC-A
Program Examples DIS

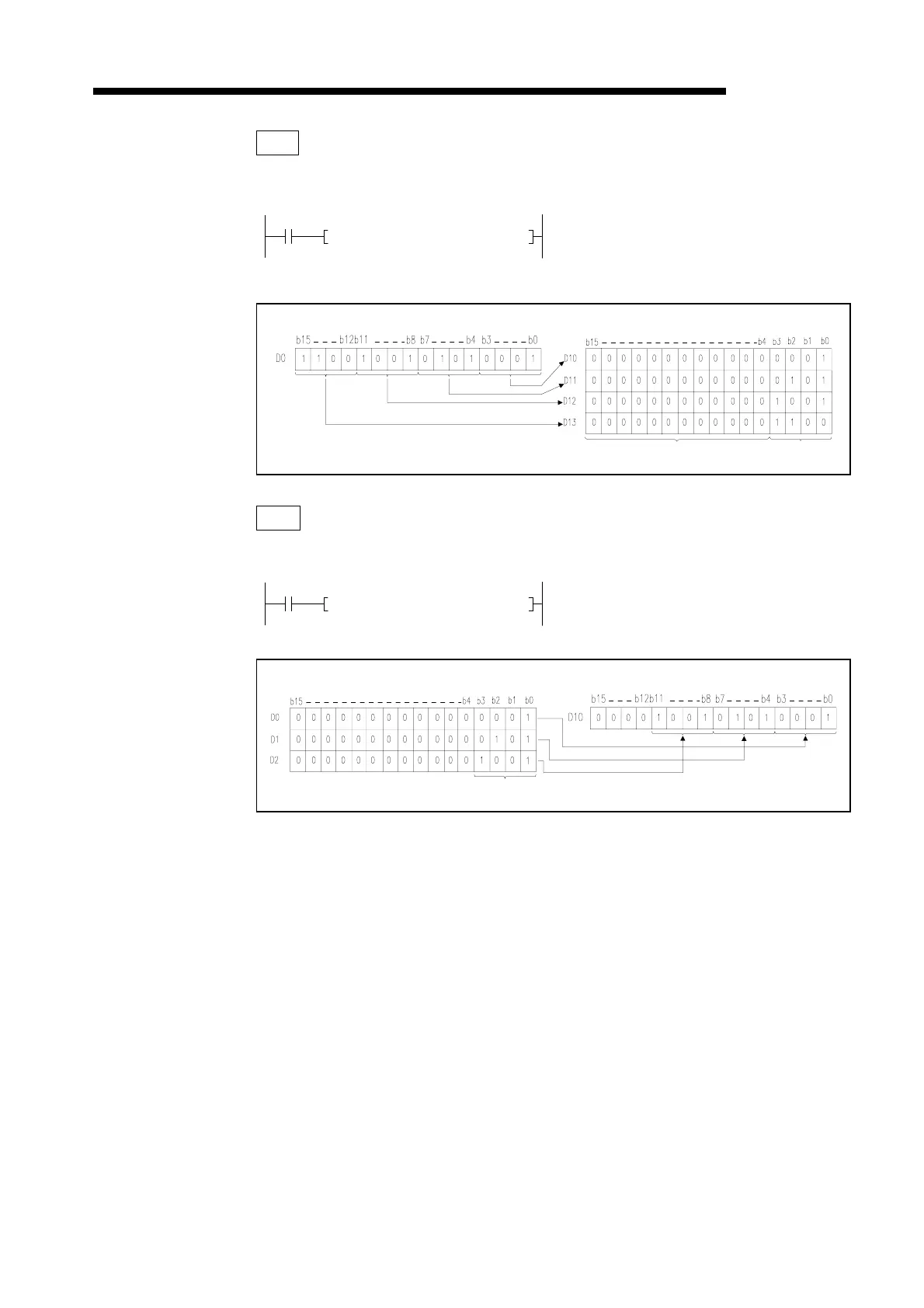

Program which stores the 16-bit data of D0 to the D10 to 13 per four bits when X0
turns on.
UNI
Program which stores the lower four-bit data of D0 to 2 to the D10 when X0 turns on.
X000
0
P K
DIS D0 D10 4
• Coding
0 LD X000
1 DISP D0 D10 K4
10 END
Before execution After execution
Set to 0. Storage area
X000
0
P K
UNI D0 D10 3
• Coding
0 LD X000
1 UNIP D0 D10 K3
10 END
Before execution After execution
Data to be associated
