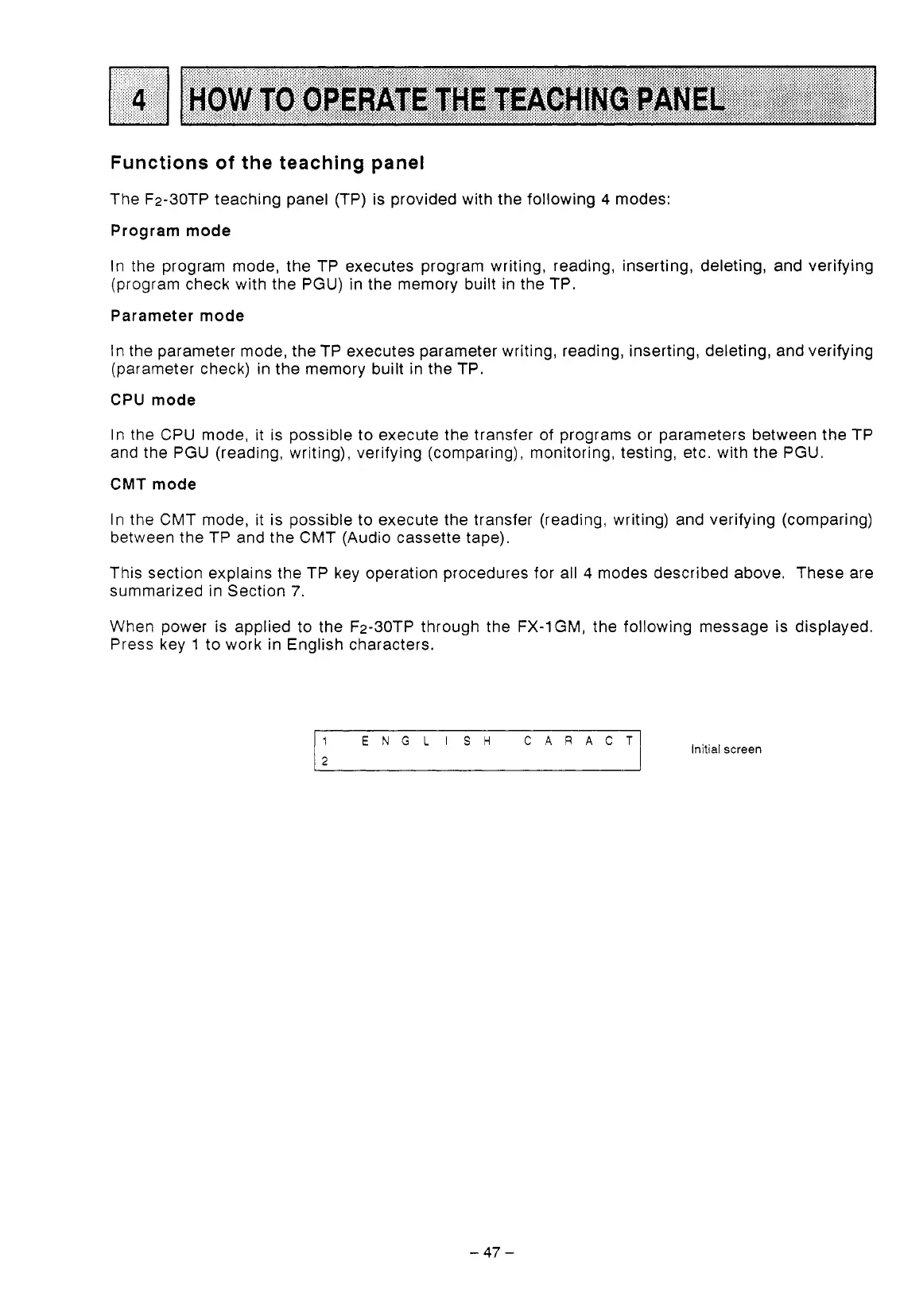

Functions
of
the teaching panel
The F2-30TP teaching panel (TP) is provided with the following
4
modes:
Program mode
In the program mode, the TP executes program writing, reading, inserting, deleting, and verifying
(program check with the PGU) in the memory built in the TP.
Parameter mode
In
the parameter mode, the TP executes parameter writing, reading, inserting, deleting, and verifying
(parameter check) in the memory built in the TP.
CPU
mode
In the CPU mode,
it
is possible
to
execute the transfer of programs or parameters between the TP
and the PGU (reading, writing), verifying (comparing), monitoring, testing, etc. with the PGU.
CMT
mode
In the CMT mode, it is possible to execute the transfer (reading, writing) and verifying (comparing)
between the TP and the CMT (Audio cassette tape).
This section explains the TP key operation procedures for all
4
modes described above. These are
summarized in Section
7.
When
Press
power
is
applied to the F2-30TP through the FX-lGM, the following message is displayed.
key
1
to work in English characters.
-
1
ENGLISH
CARACT
I2
Initial
screen
-
47
-
