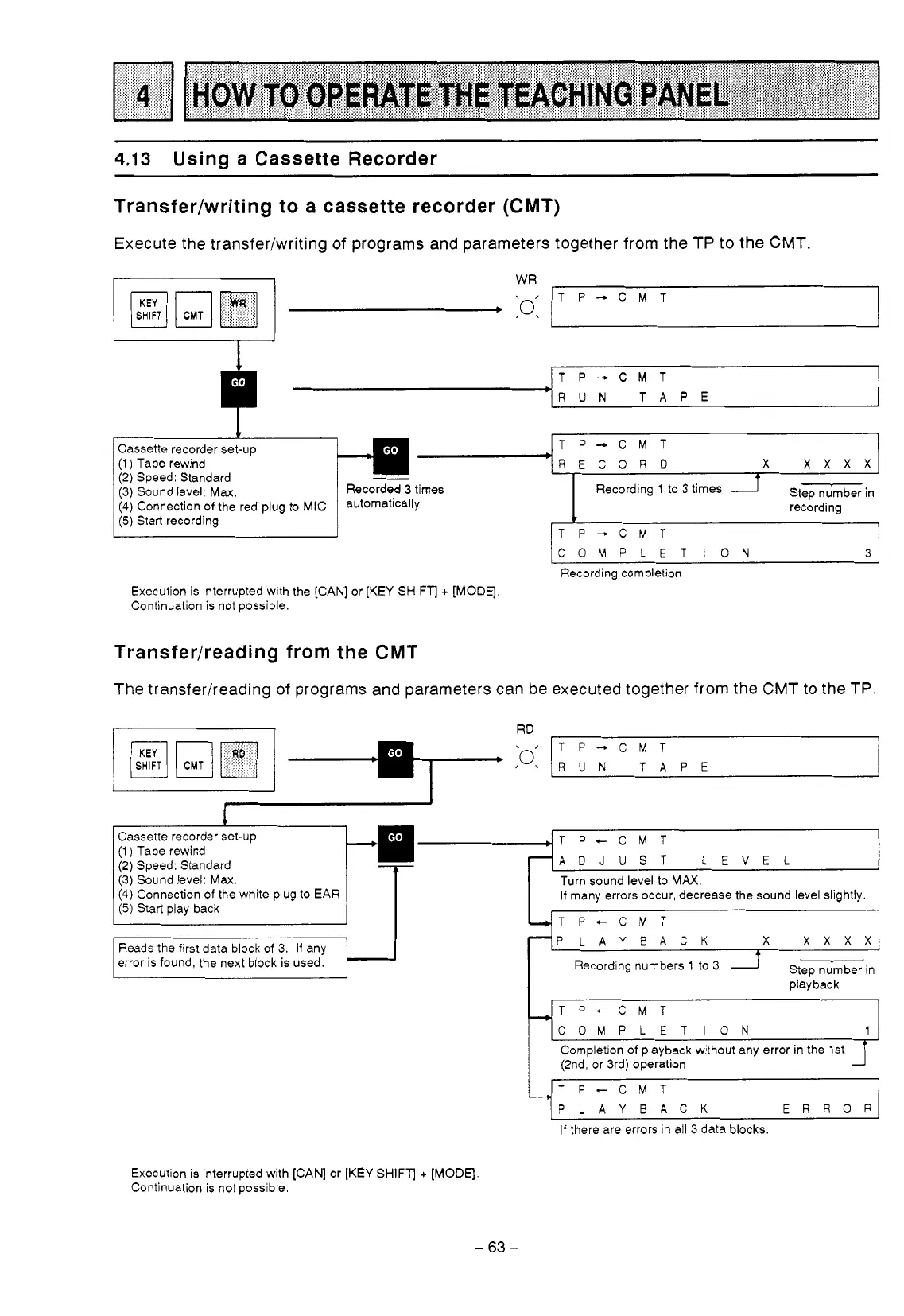

4.13
Using a Cassette Recorder
Transfer/writing to a cassette recorder (CMT)
Execute the transfer/writing of programs and parameters together from the
TP
to the CMT.
TP-CMT
-RUN
TAPE
Cassette recorder set-up
(1) Tape rewind
(2)
Speed: Standard
-RECORD
x xxxx
(3)
Sound level: Max.
Recording
1
to
3
times
Step number in
recording
(5)
Start recording
v
TP-CMT
L___
TP-CMT
COMPLETION
3
Recording completion
Execution is interrupted with the
[CAN]
or [KEY
SHIFT]
+
[MODE]
Continuation is not possible.
Transferheading from the CMT
The transferheading of programs and parameters can be executed together from the CMT to the TP.
I
RD
I
I
I
Cassette recorder set-up
(1)
Tape rewind
cTP-CMT
(2)
Speed: Standard
(5)
Start play back
If
many errors occur, decrease the sound level slightly.
(4)
Connection
of
the white plug to EAR
Turn sound level to
MAX.
(3)
Sound level:
Max.
-ADJUST LEVEL
4TP-CMT
-PLAYBACK
x xxxx
Step number in
playback
Recording numbers 1
to
3
v
TP-CMT
/-[COMPLETION
1
Completion
of
playback without any error in the 1st
(2nd, or 3rd) operation
PLAYBACK ERROR
If
there are errors in all
3
data blocks.
Execution is interrupted with
[CAN]
or [KEY
SHIFT]
+
[MODE]
Continuation is not possible.
-
63
-
