(5)

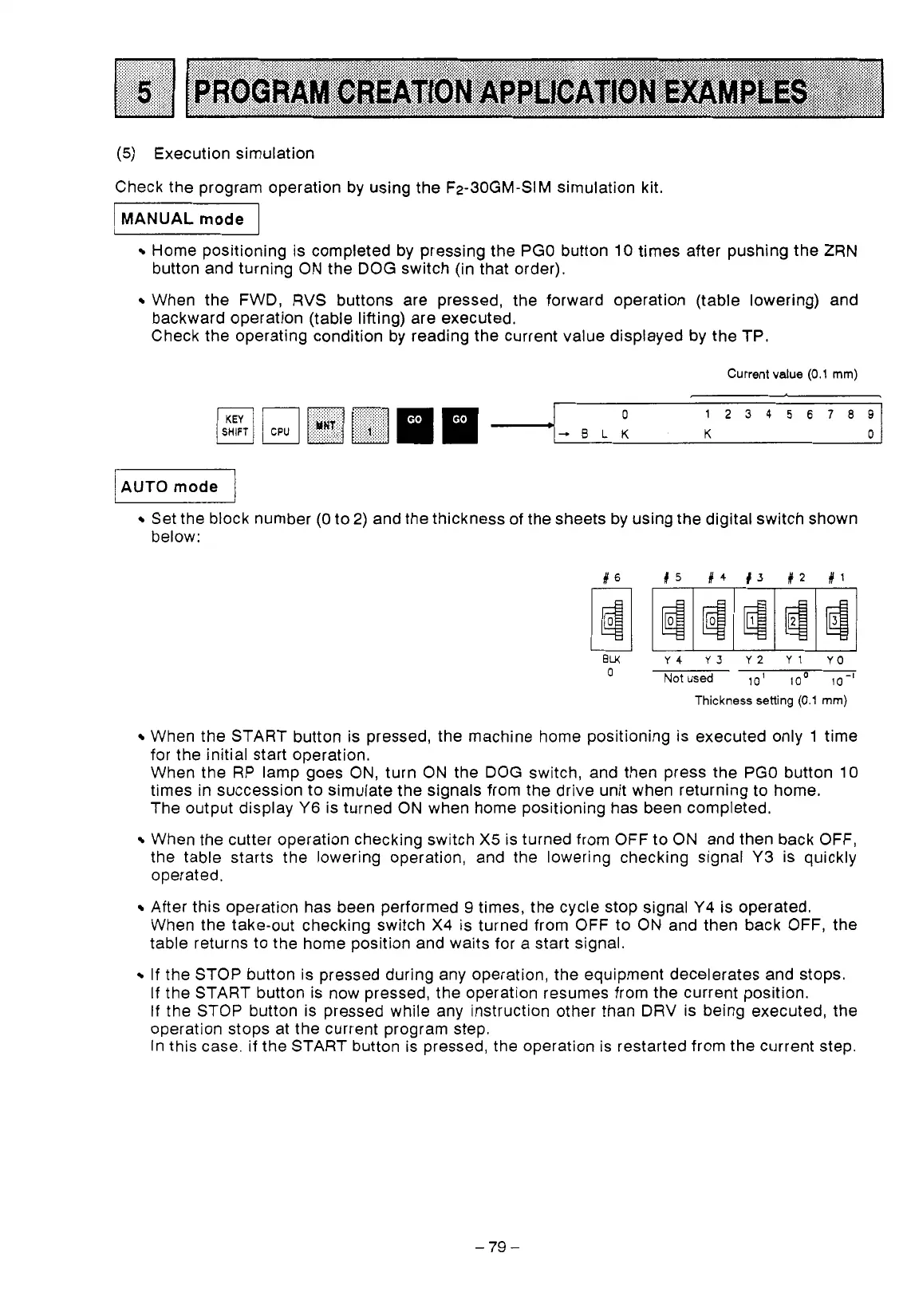

Execution simulation
Check the program operation by using the F2-30GM-SIM simulation kit.
MANUAL
mode
Home positioning is completed by pressing the PGO button
10
times after pushing the
ZRN
button and turning
ON
the DOG switch (in that order).
When the
FWD,
RVS
buttons are pressed, the forward operation (table lowering) and
backward operation (table lifting) are executed.
Check the operating condition by reading the current value displayed by the TP.
Current
value (0.1
mm)
Set the block number
(0
to
2)
and the thickness of the sheets by using the digital switch shown
below:
84
#3
#2
81
0LK
Y4
YJ
Y2
Y1
YO
a
Not
used
10'
ioo
lo-'
Thickness setting
(0.1
mm)
When the START button is pressed, the machine home positioning is executed only
1
time
for the initial start operation.
When the RP lamp goes
ON,
turn
ON
the DOG switch, and then press the PGO button
10
times in succession
to
simulate the signals from the drive unit when returning
to
home.
The output display
Y6
is turned ON when home positioning has been completed.
When the cutter operation checking switch
X5
is turned from OFF to ON and then back OFF,
the table starts the lowering operation, and the lowering checking signal
Y3
is quickly
operated.
After this operation has been performed
9
times, the cycle stop signal
Y4
is operated.
When the take-out checking switch
X4
is turned from OFF to
ON
and then back OFF, the
table returns
to the home position and waits for a start signal.
If
the STOP button is pressed during any operation, the equipment decelerates and stops.
If
the START button is now pressed, the operation resumes from the current position.
If the STOP button is pressed while any instruction other than DRV is being executed, the
operation stops at the current program step.
In this case.
if
the START button is pressed, the operation is restarted from the current step.
-79-
