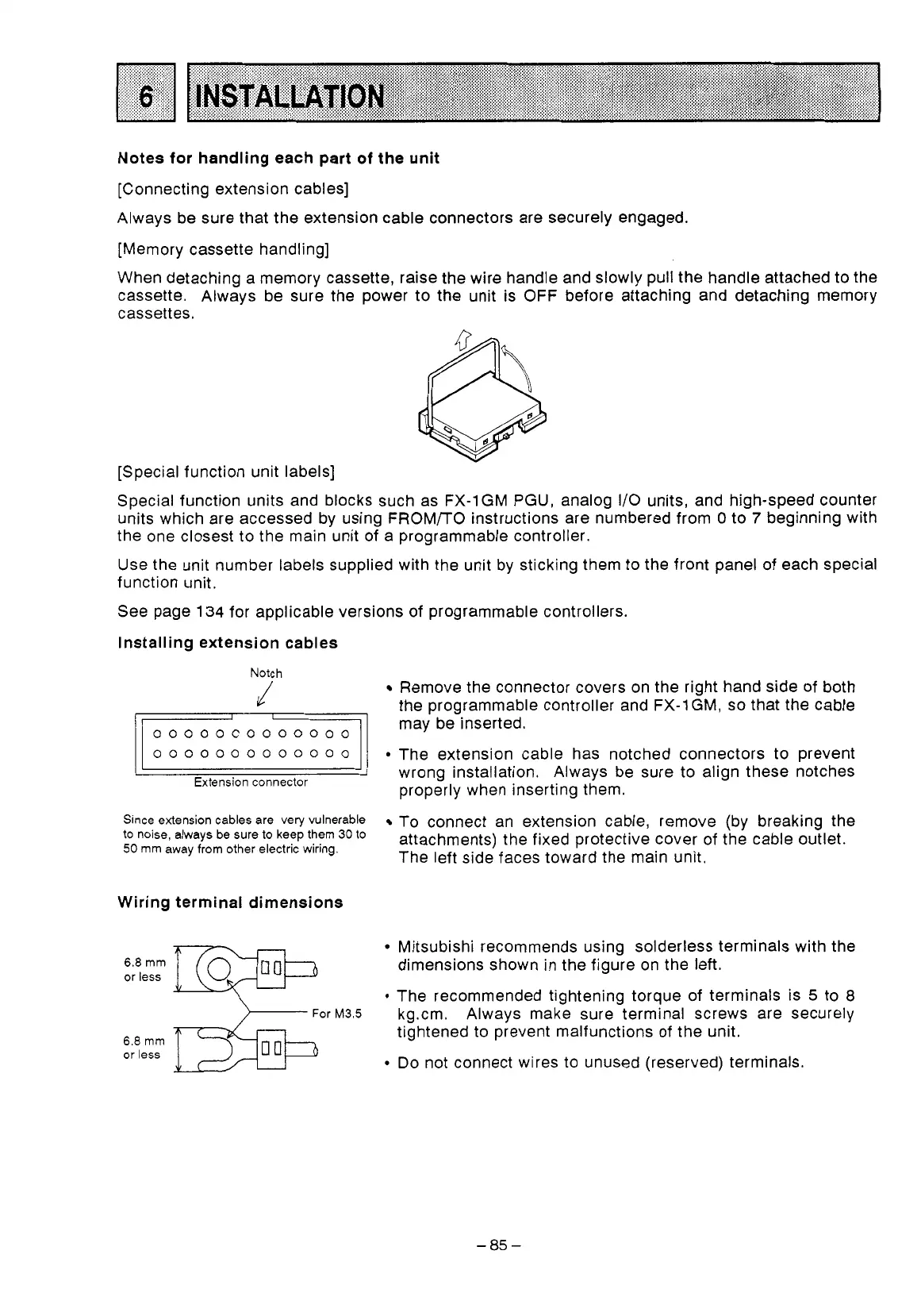

Notes
for
handling each part
of
the
unit
[Connecting extension cables]
Always be sure that the extension cable connectors are securely engaged.
[Memory cassette handling]
When detaching a memory cassette, raise the wire handle and slowly pull the handle attached
to
the
cassette. Always be sure the power to the unit is OFF before attaching and detaching memory
cassettes.
-
[Special function unit labels]
Special function units and blocks such as FX-1GM PGU, analog
I/O
units, and high-speed counter
units which are accessed by using FROM/TO instructions are numbered from
0
to
7
beginning with
the one closest to the main unit of a programmable controller.
Use the unit number labels supplied with the unit by sticking them
to
the front panel of each special
function unit.
See page 134 for applicable versions of programmable controllers.
Installing extension cables
Notch
kl
0000000000000
0000000000000
Extension connector
Since extension cables are very vulnerable
to
noise, always be sure
to
keep them
30
to
50
mm away from other electric wiring.
Wiring terminal dimensions
or less
For
M3.5
6.8
mm
or
less
Remove the connector covers on the right hand side of both
the programmable controller and FX-1 GM,
so
that the cable
may be inserted.
The extension cable has notched connectors to prevent
wrong installation. Always be sure
to
align these notches
properly when inserting them.
To connect an extension cable, remove (by breaking the
attachments) the fixed protective cover of the cable outlet.
The left side faces toward the main unit.
Mitsubishi recommends using solderless terminals with the
dimensions shown in the figure on the left.
The recommended tightening torque of terminals is
5
to
8
kg.cm. Always make sure terminal screws are securely
tightened
to prevent malfunctions of the unit.
Do
not connect wires
to
unused (reserved) terminals.
-85-
