7.18 Other instructions 7.18.10 Reading module model name (TYPERD(P))

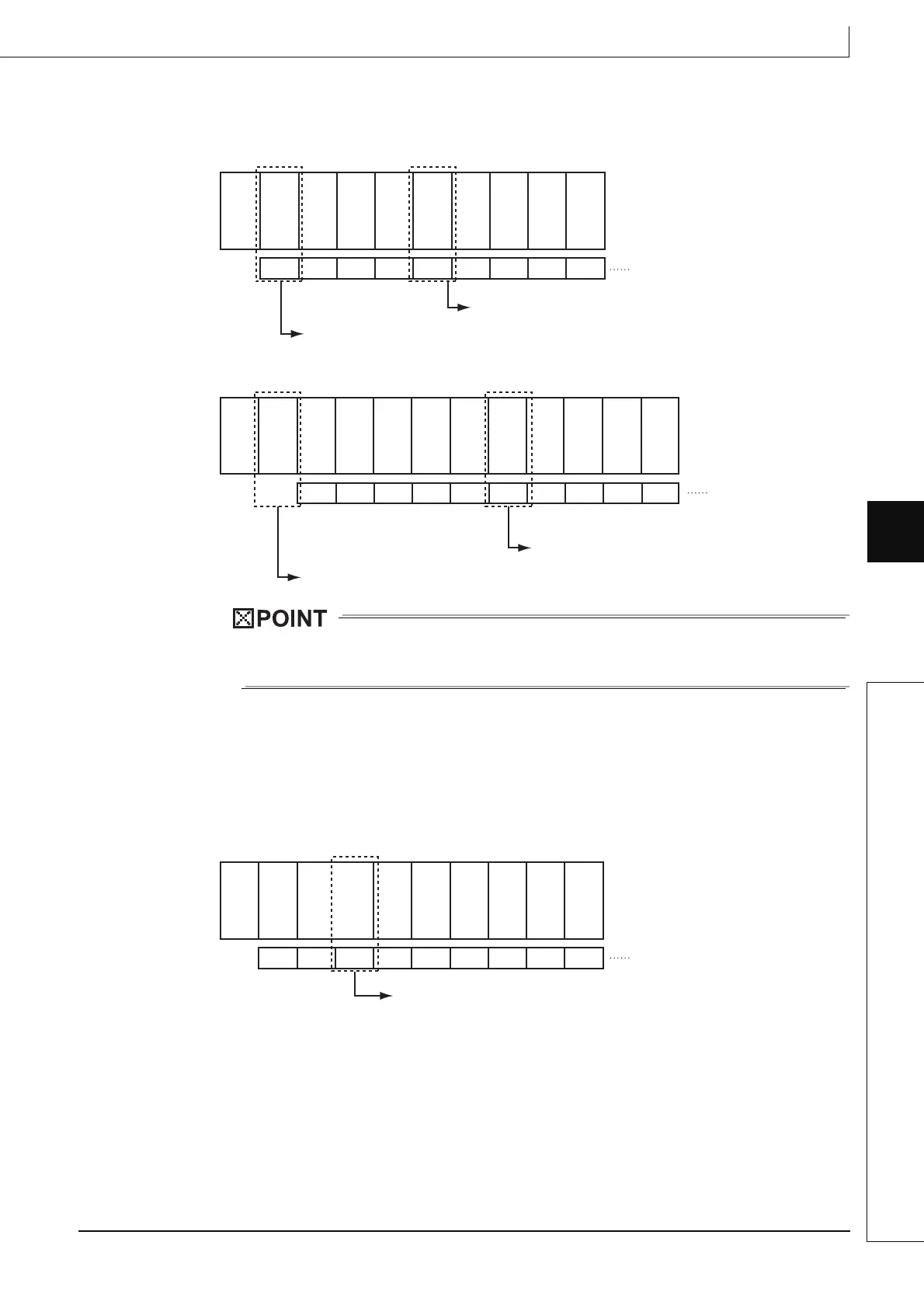

(2) Specify the start I/O number of a module whose model name is to be read by "n" as follows:
• Specify the value obtained by dividing the start I/O number of the target module by 16.
Universal model QCPU
LCPU (L26CPU-BT)
1. On the LCPU, if the built-in I/O or first I/O on the built-in CC-Link is specified,
then the model name of the CPU module is read.
• When the target module occupies two slots
The start I/O number to be specified may differ from that of the mounted module.
For the start I/O number, refer to the manual of each module.
Specify the value obtained by dividing the start I/O number of the target module by 16.
Example) QJ71GP21S-SX
Specify a value to which 0010
H
, start I/O number of the mounted module, is added.
Power
supply
module
CPU
module
QX10 QX10 QX10 QX10
Q68
ADV
QY41
P
QY10 QY10
3E00
H 0000H 0010H 0020H 0030H 0040H 0050H 0070H 0080H Start I/O number configured in
the I/O assignment setting
When the target module is a CPU module itself,
specify the start I/O number by H3E0.
Specify the start I/O number by K3 or H3.
Power
supply
module
CPU Built-in
I/0
Built-in
CC-Link
LX40
C6
LX40
C6
LX40
C6
LX40
C6
L60A
D4
LY10
R2
LY10
R2
LY10
R2
0000
H 0010H 0030H 0040H 0050H 0060H 0070H 0090H 00A0H 00B0H
Specify H3E0 to read the module name of the CPU module.
Specify the head I/O number to be read
by K6 or H6.
Head I/O number
configured in the
I/O assignment
setting
Power
supply
module
CPU
module
QJ71G P21S-SX Empty Empty Empty Empty Empty Empty
3E00
H 0000H 0010H 0030H 0040H 0050H 0060H 0070H 0080H Start I/O number configured in
the I/O assignment setting
Specify the start I/O number by K1 or H1.
