Passenger compartment fuse lo-
cation table
E01007902127

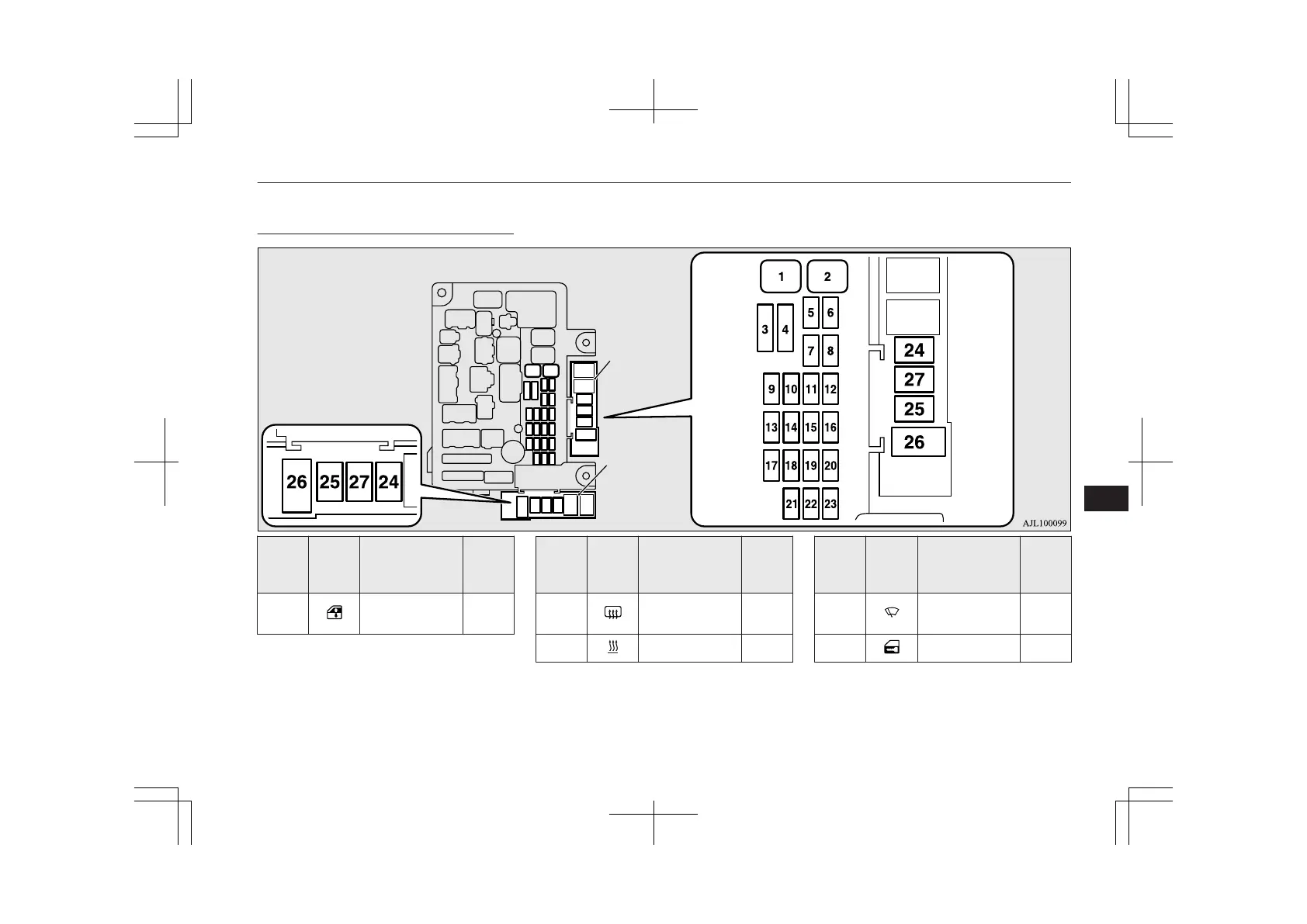

Main fuse block
Sub fuse block
(LHD)
Sub fuse block
(RHD)
No.
Sym-
bol
Electrical sys-
tem
Ca-
paci-
ties
1
Electric window
control
30 A
*1
*1
: Fusible link
*2
: Even if your vehicle is equipped with the
rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.
No.
Sym-
bol
Electrical sys-
tem
Ca-
paci-
ties
2
Rear window
demister
30 A
*1
3 Heater 30 A
*1
: Fusible link
*2
: Even if your vehicle is equipped with the
rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.
No.
Sym-
bol
Electrical sys-
tem
Ca-
paci-
ties
4
Windscreen wip-
ers
30 A
5 Door locks 20 A
*1
: Fusible link
*2
: Even if your vehicle is equipped with the
rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.
Fuses
11-19
OGGE19E1
Maintenance
11
