Electrical system
Ca-
paci-
ty
F10 Ignition control 15 A
F11 Ignition control 7.5 A
*
: Fusible link
l
Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
l
The table above shows the main equip-
ment corresponding to each fuse.
The fuse block does not contain spare 7.5 A
or 30 A fuses. If one of these fuses burns out,
substitute with the following fuse.
7.5 A: 10 A spare fuse
30 A: 30 A audio system amp fuse
When using a substitute fuse, replace with a
fuse of the correct capacity as soon as possi-
ble.
Identification of fuse
E01008101389
Capacity Colour
7.5 A Brown
10 A Red
15 A Blue
Capacity Colour
20 A Yellow
30 A
Green (fuse type) / Pink (fu-
sible link type)
40 A Green (fusible link type)

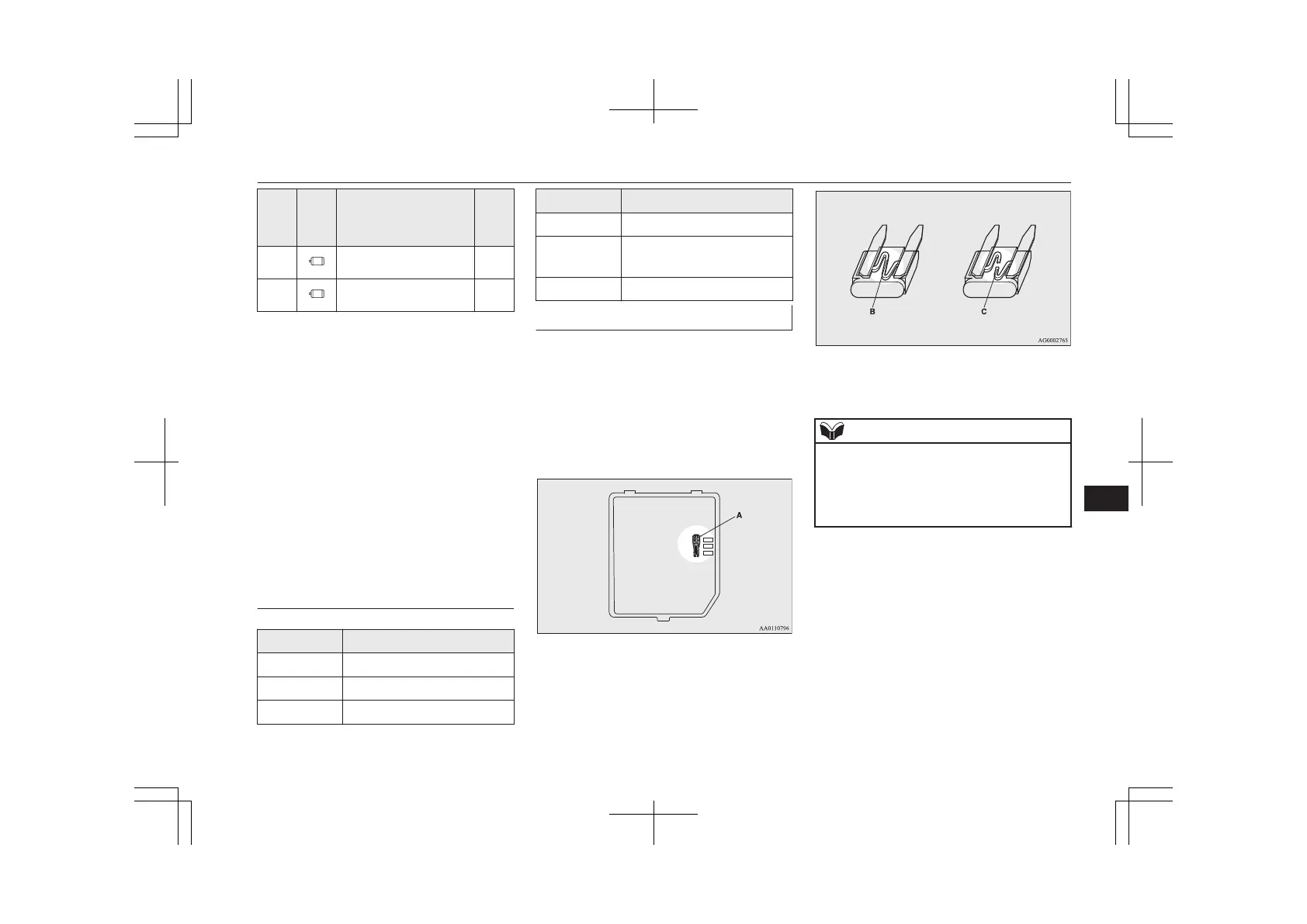

Fuse replacement
E01007801884
1. Before replacing a fuse, always turn off
the electrical circuit concerned and put
the operation mode of the power switch
in OFF.
2. Remove the fuse puller (A) from the in-
side of the main fuse block cover in the
engine compartment.
3. Referring to the fuse load capacity table,
check the fuse pertaining to the problem.
B- Fuse is OK
C- Blown fuse
NOTE
l
If any system does not function but the fuse
corresponding to that system is normal, there
may be a fault in the system elsewhere. We
recommend you to have your vehicle
checked.
Fuses
11-23
OGGE19E1
Maintenance
11
